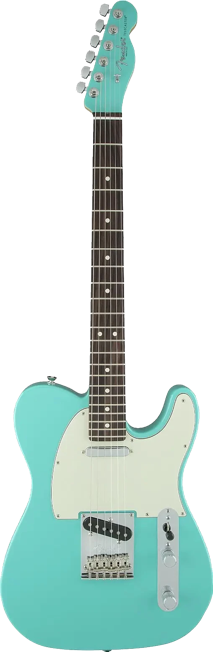

USA TELECASTERS

American Standard - Matching Headstock

American Standard Series (2016) Magnificent-7 Collection

Decal:

Model# 017-0801-XXX

BODY

Wood: Alder

Lacquer: Gloss Polyurethane

Shape: Standard Telecaster

Pickguard: 3-Ply Mint Green

Serial: Headstock Rear / US-serial

NECK

Wood: Maple

Decal: Silverish Spaghetti w/ Black Trim

Fretboard: Rosewood

Neck Lacquer: Satin Urethane

Neck Profile: Standard "C"

Headstock: Standard Tele

Nut Material: Synthetic Bone

Nut Width: 1.685" (42.8mm)

Scale: 25.5"

Radius: 9.5"

#Frets: 22

Fretwire: 6130 Medium Jumbo

Trussrod: Bi-Flex Headstock-adjust

MicroTilt: Yes

ContouredHeel: No

HARDWARE

Bridge Type: Modern 6-String Flat String-Thru

Bridge Marking: Modern Large Spaghetti "Fender"

Saddles: Vintage Bent-Steel Saddles

Tuners: Standard Die-Cast Schaller/Fender Sealed Tuners

StringTree: Ezy-Glide

Knobs: Knurled Flat-Top

Neckplate: 4-Bolt / "Fender Limited Edition"

ELECTRONICS

Switch: 3-Way / Barrel Switch-Tip

Wiring: Standard Wiring

Pickup Config: SS

Neck Pickup: American Vintage '58 Single-Coil Tele

Bridge Pickup: American Vintage '58 Single-Coil Tele

CASE: ABS Molded Case

Colors:

Ice Blue Metallic  (883)

Olympic White (805)

Sea Foam Green (849)
