USA TELECASTERS
American Vintage Series: (2025 - Today)
Decal:
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.

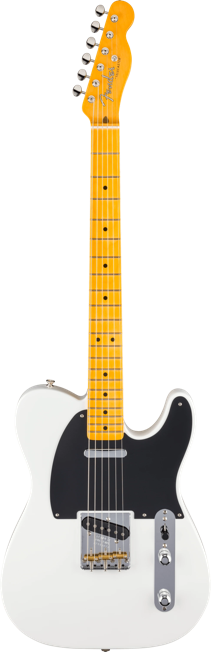

Model# 011-0312-880 (Maple)
BODY
Wood: Ash
Lacquer: Gloss Nitrocellulose Lacquer over Urethane Sealer
Shape: Standard Telecaster
Pickguard: 1-Ply Black Phenolic | Slotted Screws
Serial: Stamped on Bridge / V-serial
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Gloss Nitrocellulose Lacquer
Neck Profile: 1951 "U"-Profile
Neck Thickness .890 -.990 (22.6 - 25.1mm)
Headstock: Standard Tele
NutWidth: 1.650" (42mm)
Nut Material: Natural Bone
Scale: 25.5"
Radius: 7.25"
#Frets: 21
Fretwire: 6150 Vintage Tall
Trussrod: Vintage Heel-Adjust
MicroTilt: No
ContouredHeel: No
HARDWARE
Bridge: Vintage 3-Saddle String Thru + Serial
Bridge Marking: "FENDER Pat Pend"
Saddles: Brass Barrel
Tuners: Pure Vintage Vintage Split-Shaft (Single-Line) ⚙︎
String Tree: 50's Round Button
Knobs: Knurled Dome
Neckplate: 4-Bolt Blank Plate | Slotted Screws
ELECTRONICS
Switch: 3-Way / Round Barrel Tip
Wiring: Vintage Wiring N/NB/B
Treble Bleed: ?
Capacitor: ?
Pickup Config: SS
Neck Pickup: Pure Vintage '51 Single-Coil Tele
Bridge Pickup: Pure Vintage '51 Single-Coil Tele
CASE: None
Colors:
Prototype White (880)
