Decal:
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Model# 010-8800-821
Since 2022: 923-5001-319
BODY
Wood: Select Ash
Binding: Double Bound White
Lacquer: Polyurethane
Shape: Standard Telecaster
Pickguard: 3-Ply White
Serial: Stamped on Neckplate / V or CZ+6 digit
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Gloss Urethane
Neck Profile: "C" Shape (Various Thickness over time)
Inlays: Black Dot
Headstock: Standard Tele
Nut Width: 1.650" (42 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 21
Fretwire: 6230 Vintage Frets
Trussrod: Vintage Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: Vintage 6-Saddle String Thru Bridge
Marking: "FENDER"
Saddles: Steel Mini-Barrel Saddles
Tuners: Vintage Style SD91 Gotoh Tuners
String Tree: Butterfly
Knobs: Knurled Flat-Top
Neckplate: 4-Bolt Blank / Stamped Serial
ELECTRONICS
Switch: 3-Way Blade / Top-Hat Switch Tip
Wiring Info: Standard N/BN/B
Pickup Config: SH
Neck Pickup: Seymour Duncan '59 SH-1N Humbucker
Bridge Pickup: Custom Shop Texas Special Stratocaster Single-Coil
INFO
CASE: Vintage-Style Tweed or Tan Tolex (Orange Interior)
FACTORY STRINGS: Fender 250R Nickel Plated Steel (.010-.046)
DESCRIPTION:
First years had a V-serial. Then CZ-seiral.

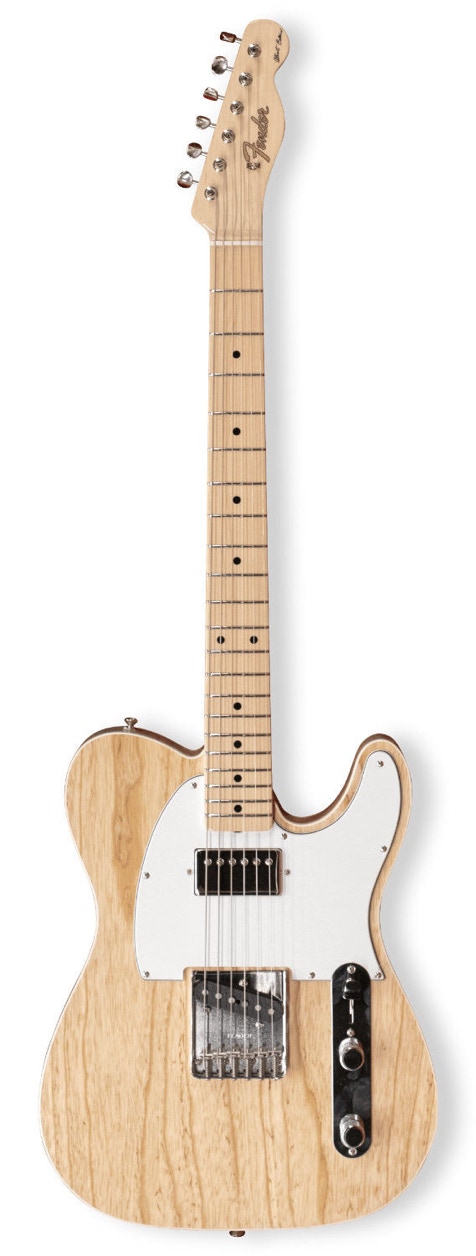

The Ice Man's '66 Custom Telecaster guitar is faithfully replicated in the screaming form of the Albert Collins Signature Telecaster. Features include double-bound swamp ash body, specially shaped maple neck with 21 frets, custom Seymour Duncan humbucking neck pickup and custom vintage-style Fender® Telecaster bridge pickup.
