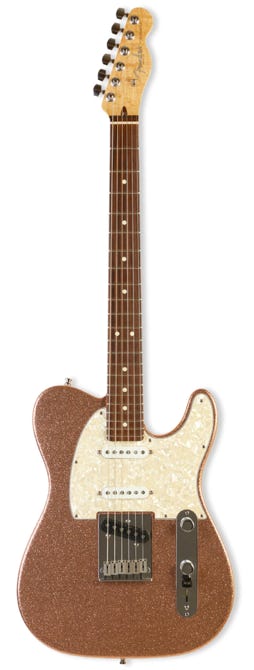

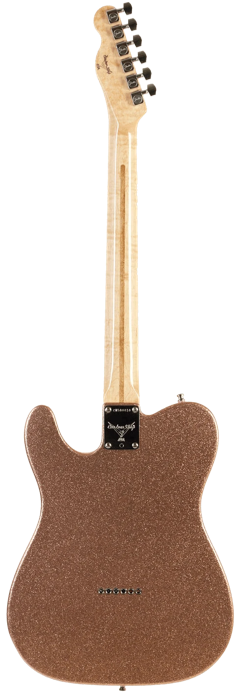

American Classic Telecaster

American Classic Series (1995 - 1998)

Colors:

2-Tone Sunburst (803)

3-Tone Sunburst (800)

Olympic White (805)

Vintage Blonde (807)

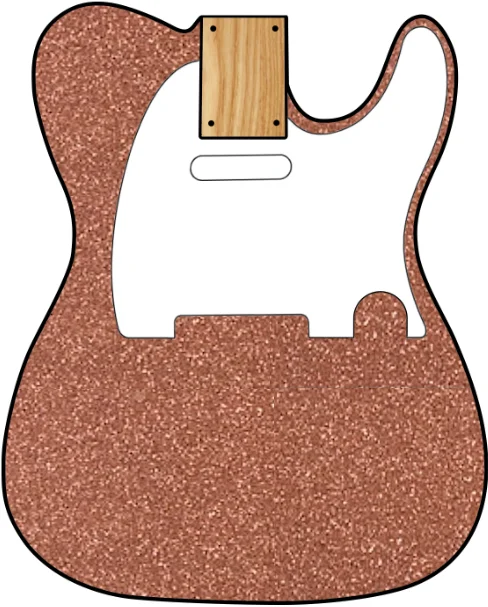

Champagne Sparkle  (826)

+ CUSTOM COLORS

Model# 010-4800 (Rosewood) | Model# 010-4810 (Gold HW)

Model# 010-4802 (Maple ) | Model# 010-4812 (Gold HW)


BODY

Wood: Alder (Ash on 801)

Lacquer: Catalyzed Urethane Finish

Shape: Standard Telecaster

Pickguard: Tortoise Shell / White Pearloid (801)

Serial: Stamped On Neckplate


NECK

Wood: Figured Maple

Fretboard: Rosewood or Maple

Lacquer: Catalyzed Urethane Finish

Inlays: White or Black Dots

Profile: "C" Shape

Neck Thickness .840" - .880"

Headstock: Standard Telecaster

Nut Width: 1.650” (42mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5"

#Frets: 22

Fretwire: 6130 Medium Jumbo

Trussrod: Headstock Adjust

MicroTilt: No

Contoured Heel: No


HARDWARE

Bridge Type: Modern Flat 6-Saddle String Thru

Bridge Marking: None

Saddles: Polished Offset Block Saddles

Tuners: Fender/Schaller Sealed Die Cast Standard

String Tree: Ezy Glide

Knobs: Knurled Flat Top

Neckplate: 4-Bolt Standard Neckplate

Control Plate: Standard Chrome Reversed

Strap Buttons: Standard Vintage


ELECTRONICS

Switch: 5-Way CRL Blade / Top Hat Switch-Tip

Wiring:  Out Of Phase Wiring (N/NB/B)

Pots

• 500k Master Volume

• 250k/500k TBX Master Tone

Pickup Config: SSS

Neck Pickup: CS Texas Special Single Coil (6.1k)

Middle Pickup: CS Texas Special Single Coil (6.1k)

Bridge Pickup: CS Texas Special Single Coil (9.0k)


ACCESSORIES & INFO

CASE: Black Tolex Case

PRICE 1992: $1549.99


Custom built to order by color choice.

Model was built on American Standard Guitar template

Gold Hardware 1996-1997

Decal:

Key
