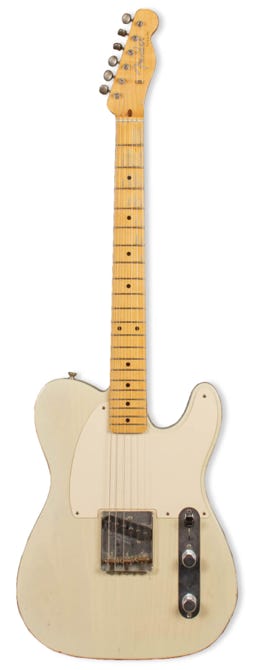

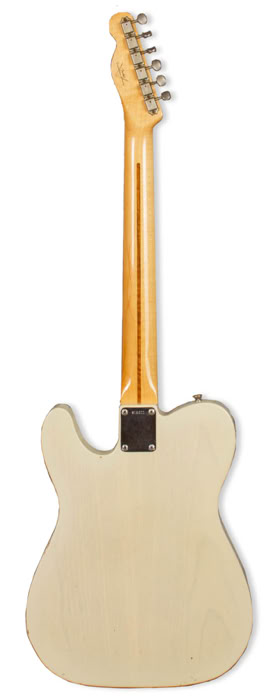

’59 Esquire

Time Machine Series (2003 - 2006)

Model# 015-3002 (N.O.S Finish)

Model# 015-3102 (Closet Classic)

Model# 015-3202 (Relic)


BODY

Wood: Premium Ash

Lacquer: Nitrocellulose

Shape: Standard Telecaster Esquire

Pickguard: 1-Ply Parchment (5-Hole)

Serial: Stamped on Neck Plate / R+5 digits


NECK

Wood: Maple

Fretboard: Maple

Lacquer: Nitrocellulose

Inlays: Black Dot

Profile: 50's "C"-Shape

Headstock: Standard Telecaster

Nut Width: 1 5/8" (41.3 mm)

Nut Material: Bone

Scale: 25.5"

Radius: 7.25"

#Frets: 21

Fretwire: 6230 Vintage Frets

Trussrod: Vintage Heel Adjust

MicroTilt: No

Contoured Heel: No


HARDWARE

Bridge Type: Vintage 3-Saddle Top-Load w/ Ashtray

Bridge Marking: "FENDER Pat.Pend."

Saddles: Threaded Steel Barrels

Tuners: Gotoh SD91 Vintage Kluson Style

String Tree: Butterfly

Knobs: Knurled Flat-Top

Neckplate: 4-Bolt Blank + Serial

Control Plate: Standard Chrome

Strap Buttons: Standard Vintage


ELECTRONICS

Switch: 3-Way / Top-Hat Switch Tip

Wiring: Vintage Dark Wiring

  • P1: Direct To Pot
  • P2: To Volume with Tone Pot
  • P3: Direct To Pot trough Resistor (Treble-Cut)

Pots

• CTS 250k Master Volume

• CTS 250k Master Tone

Pickup Config: S

Bridge Pickup: CS Vintage Tele Pickup


ACCESSORIES & INFO

CASE: Brown Tolex Hardcase

Colors:

Black (806)

White Blonde (801)

Decal:

Key
