Time Machine Series (2005 -2008 )
Colors:
STANDARD: Arctic White - Black - Shoreline Gold
+ Custom Colors (on order)
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Model# 155-6700 (Rosewood / 6702 Maple) N.O.S
Model# 156-6700 (Rosewood / 6702 Maple) Closet Classic
Model# 157-6700 (Rosewood / 6702 Maple) Relic
BODY
Wood: Select Alder
Lacquer: Nitrocellulose
Shape: Standard Telecaster
Pickguard: 3-Ply White
Serial: Stamped on Neckplate / R+5 digit
NECK
Wood: Maple
Decal: Modern Black w/ Gold Trim + Telecaster
Fretboard: Round Lam. Rosewood
Lacquer: Nitrocellulose
Profile: 60s "C" shape
Inlays: White Pearloid Narrow Dot
Headstock: Standard Telecaster
Nut Width: 1.650” (42 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 7.25"
#Frets: 21
Fretwire: 6230 Vintage
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: Vintage 3-Saddle String-Thru + Ashtray Cover
Bridge Marking: Pat.No DES.164227 / 2.573.254
Saddles: Threaded Steel Saddles
Tuners: Fender / Schaller "F" Style Tuners
String Tree: Butterfly
Knobs: Knurled Flat Top
Neckplate: 4-Bolt Vintage "F" Stamp + Serial
ELECTRONICS
Switch: 3-Way CRL | Top Hat Switch Tip
Wiring: Standard N/NB/B
Pots: Master Vol + Master Tone
Pickup Config: SS
Neck Pickup: Vintage ‘63 Tele Single-Coil Pickups
Bridge Pickup: Vintage ‘63 Tele Single-Coil Pickups
CASE:Black Deluxe Hardcase with Orange Lining
DESCRIPTION:

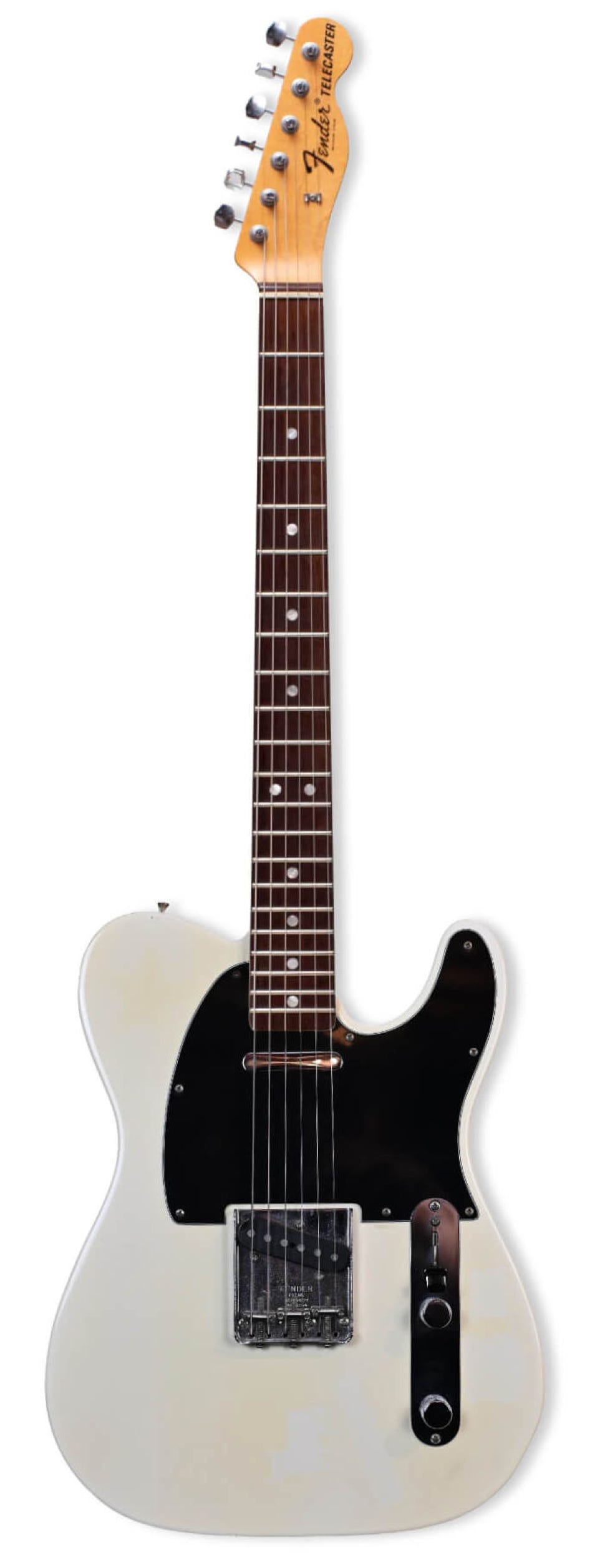

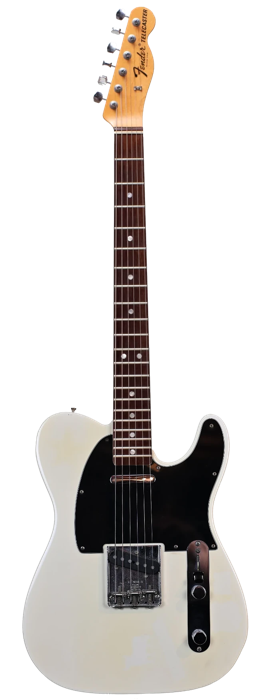

The Time Machine Series ’67 Telecaster guitar is an exact reproduction
of the Telecaster guitar that set the “Twang-Tone” in Nashville during the late ’60s, and features a nitrocellulose-lacquered alder body, “C”-shape maple neck with narrow dot spacing, round laminate rosewood or maple fingerboard, “F”-key tuners and wing string tree, two custom wound pickups, grooved steel saddles and “Top Hat” switch tip. Available in Arctic White (880), Black (806) and Shoreline Gold (844).
