Limited Edition Series (2010)
Decal:
Colors:
Candy Apple Red (609)
Sonic Blue (672)
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Model# 156-6666-509 / 572 (One Pickup Model)
Model# 156-6666-609 / 672 (Two Pickup Model)
BODY
Wood: Select Lighteight Adler
Lacquer: Nitrocellulose
Shape: Standard Telecaster
Pickguard: 1-Ply Parchment
Serial: Stamped on Neckplate / R+5 digit
NECK
Wood: Maple
Decal: "La Cabronita Especial" Decal rear of body by strap button
Fretboard :Maple
Lacquer: Nitrocellulose
Profile: Large "C" (.879-.956)
Inlays: Black Dot
Headstock: Standard Telecaster
Nut Width: 1.6875" (43mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 21
Fretwire: 6105 Narrow Tall
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: Standard 6-Saddle Hardtail String Thru
Bridge Marking: None
Saddles: Offset Stainless Steel Block Saddles
Tuners: Sperzel Solid Pro w/ Pearloid Buttons
String Tree: 50s Round Button
Knobs: Chrome Flat Top S1 Knob
Neckplate: 4-Bolt
ELECTRONICS
- 1 Pickup Model:
Switch: None
Wiring: Via Tone to Output
Pots: Master Volume + Master Tone

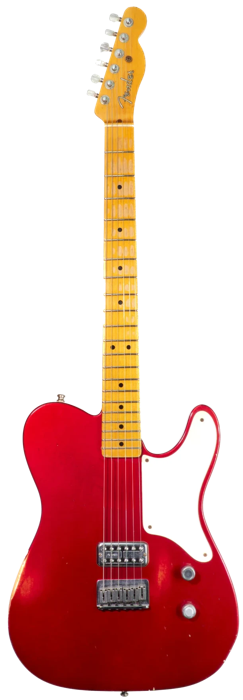

Pickup Config: H
Bridge Pickup: TV Jones Power-Tron (4.7k)
- 2 Pickup Model:
Switch: 3-Way Switchcraft
Wiring: Std. N/BN/B with S1 to toggle High-End Roll-Off (Greasebucket)
Pots:1 Singular Master Volume S-1 Pot

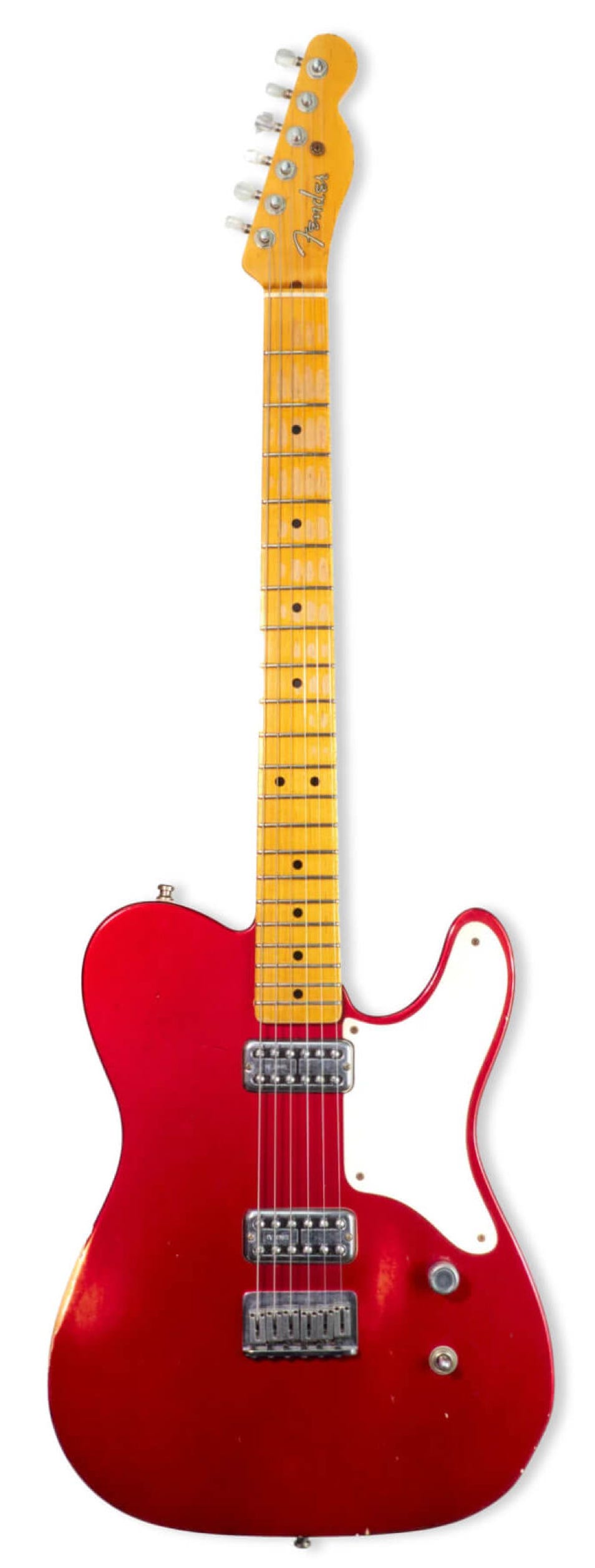

Pickup Config: HH
Neck Pickups: TV Jones Power-Tron(4.0k)
Bridge Pickup: TV Jones Power-Tron (4.7k)
CASE: Gray Tweed Hardcase w/ Black Lining
DESCRIPTION:
Limited amount of guitars made: Same as 2009
20 Of Candy Apple Red with HH
10 Of Candy Apple Red with H
20 Of Sonic Blue HH
10 Of Sonic Blue H
In total 60 Guitars
