Custom Deluxe Series (2014)
Colors:

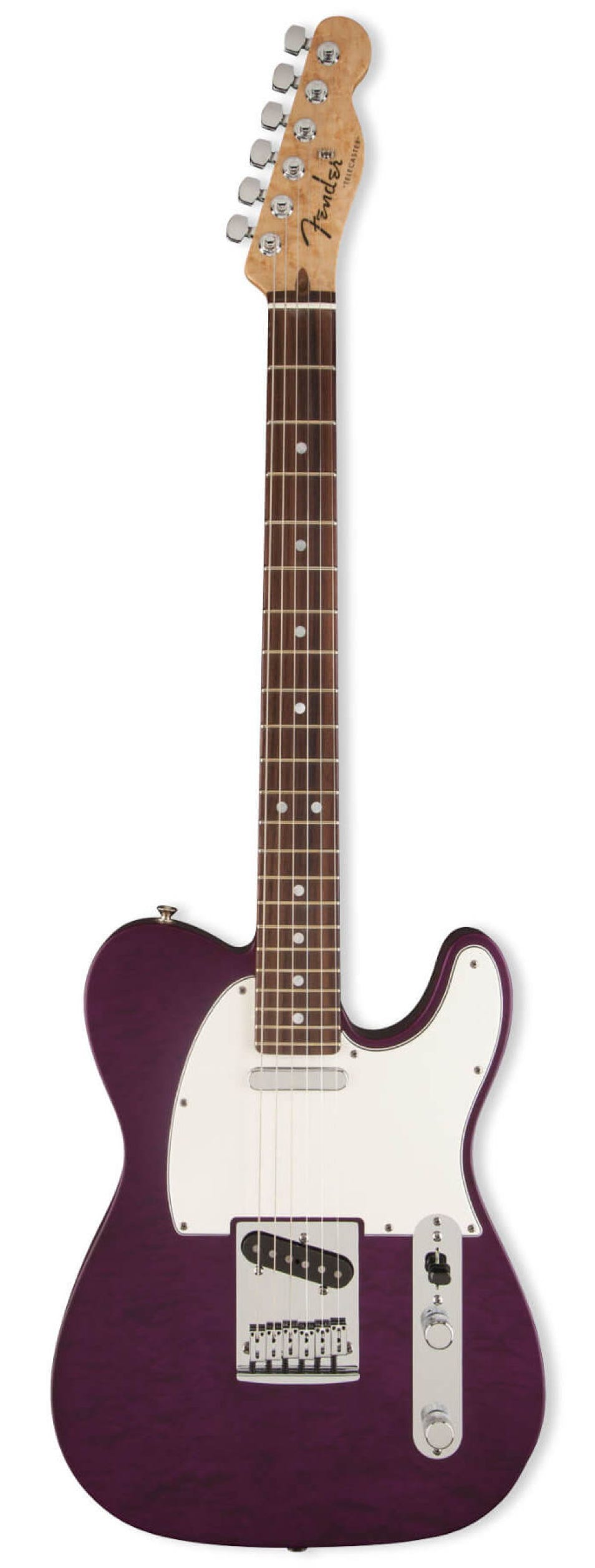

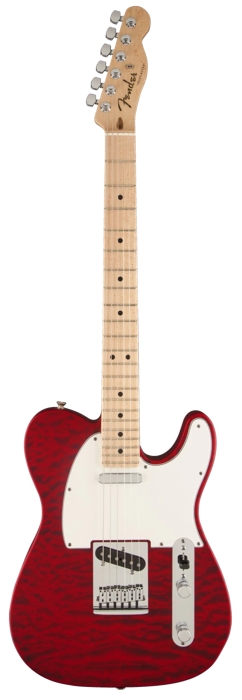

Candy Red - Cobalt Blue - Purple Transparent
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Model# 150-9850-XXX (Rosewood)
Model# 150-9852-XXX (Maple)
BODY
Wood: Select Ash w/AAA Quilted Maple Cap
Lacquer: Satin Urethane
Shape: Standard Telecaster
Pickguard: 3-PlyWhite
Serial: Stamped on Neckplate / 4-digits
NECK
Wood: Birdseye Maple
Decal: Black Spaghetti w/ Gold Trim + Telecaster
Fretboard: Maple
Lacquer: Satin Urethane
Profile: Thick NoCaster "U"
Inlays: White / Black Dots
Headstock: Standard Telecaster
Nut Width: 1.685 (42.8mm)
Nut Material: Micarta
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type:Modern 6-Saddle Flat String-Thru
Bridge Marking:None
Saddles:Chromed Brass Block Saddles
Tuners:Fender Schaller Std. Dies Cast Sealed Tuners
String Tree:Butterfly
Knobs:Chrome Knurled Dome Knobs
Neckplate:4-Bolt Std. "Custom Shop USA" Neckplate
ELECTRONICS
Switch:3-Way CRL /Top Hat Tip
Wiring:Modern Std. N/BN/B + Greasebucket Tone Circuit
Pots:Master Volume + Master Tone
Pickup Config:SS
Neck Pickup:CS Twisted Tele Single Coil
Bridge Pickup:CS Hand Wound Texas Special Single Coil
INFO
CASE:Hardshell Case
DESCRIPTION:
Significant downgrade to the 2013 version:
No more Countoured Heel
No more Abalone Dots
No more Sperzel Tuners. Now regular PING Schallers
No more Belly Cut
Nocaster "U" Thick neck.
Back to ordinary 6-saddle bridge
Texas Special in Bridge
Standard Medium Jumbo intead of Narrow Tall frets
