Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.

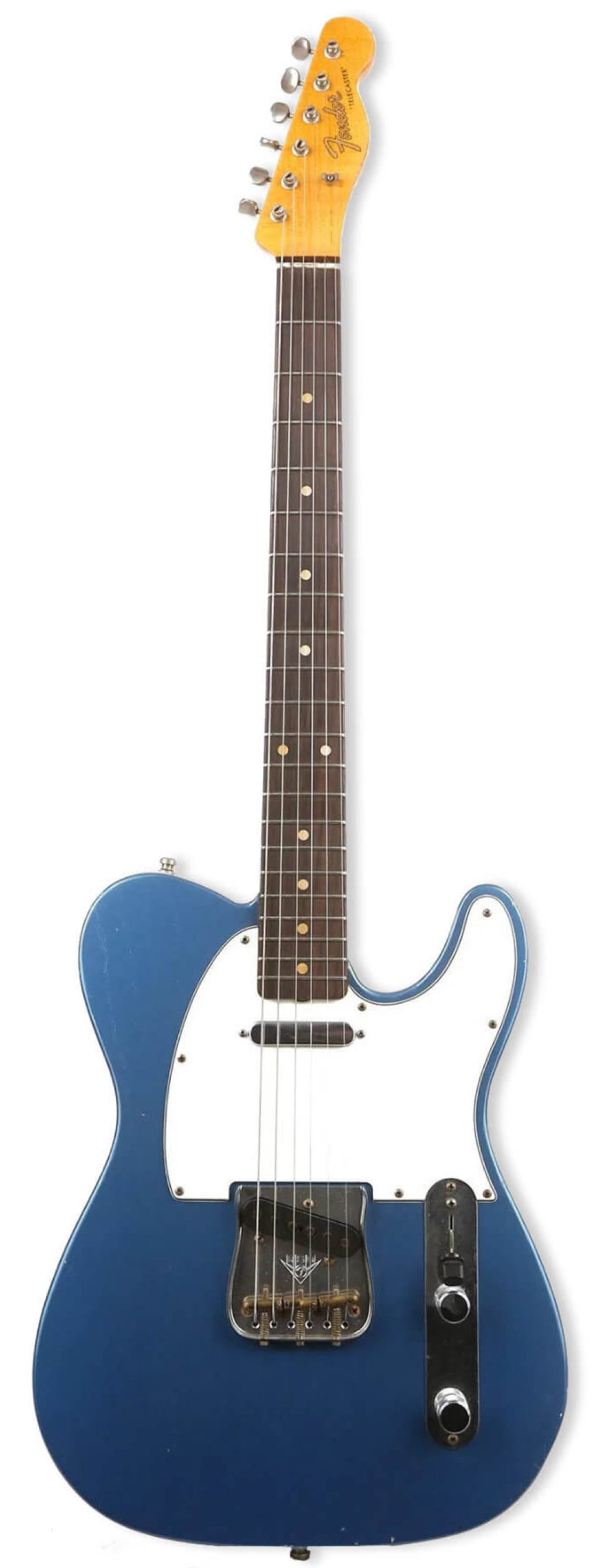

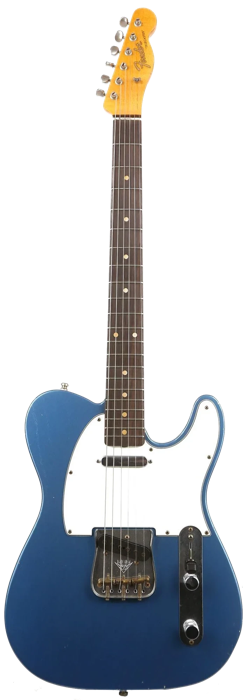

Model# 150-3030-8XX (N.O.S. Rosewood)
Model# 150-3032-8XX (N.O.S. Maple)
Model# 150-3130-8XX (Journeyman Relic Rosewood)
Model# 150-3132-8XX (Journeyman Relic Maple)
BODY
Wood: Select Ash
Lacquer: Nitrocellulose
Shape: Standard Telecaster
Pickguard: 3-Ply White
Serial: 4-Digit (Neckplate)
NECK
Wood: Quartersawn Maple
Decal: Transition Gold w/Black Trim + "Telecaster"
Fretboard: Maple & Rosewood
Lacquer: Nitrocellulose
Profile: Mid ‘60s Oval “C” (.800”-.940")
Inlays: Black or White Dot
Headstock: Standard Telecaster
Nut Width: 1-11/16 (43mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"-12" Compound
#Frets: 21
Fretwire: 6105 Narrow Tall
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: RSD High-Mass 3-Saddle Bridge
Bridge Marking:"RSD"
Saddles: Compensated Brass Bullet Barrels
Tuners: Gotoh SD91 Vintage Klusons
String Tree: Butterfly
Knobs: Knurled Flat Tops
Neckplate: 4-Bolt "F" Neckplate + Serial
ELECTRONICS
Switch: 3-Way CRL / Top Hat Switch Tip
Wiring: Modern Std. B/BN/N
Pots: Master Volume + Master Tone (Greasebucket)
Pickup Config: SS
Neck Pickup: Custom Shop "Twisted" Tele Single Coil
Bridge Pickup: Custom Shop "Twisted" Tele Single Coil
CASE: CS Black Tolex case 2/ Black Lining Interior
DESCRIPTION:
Schaller Strap Locks included
3-Tone Sunburst - Aged White Blonde - Black
ROSEWOOD ONLY: Candy Apple Red- Aged Lake Placid Blue
MAPLE ONLY: Dakota Red - Firemist Silver
