Limited Journeyman Relic ’57 Esquire

Limited Series (2017)

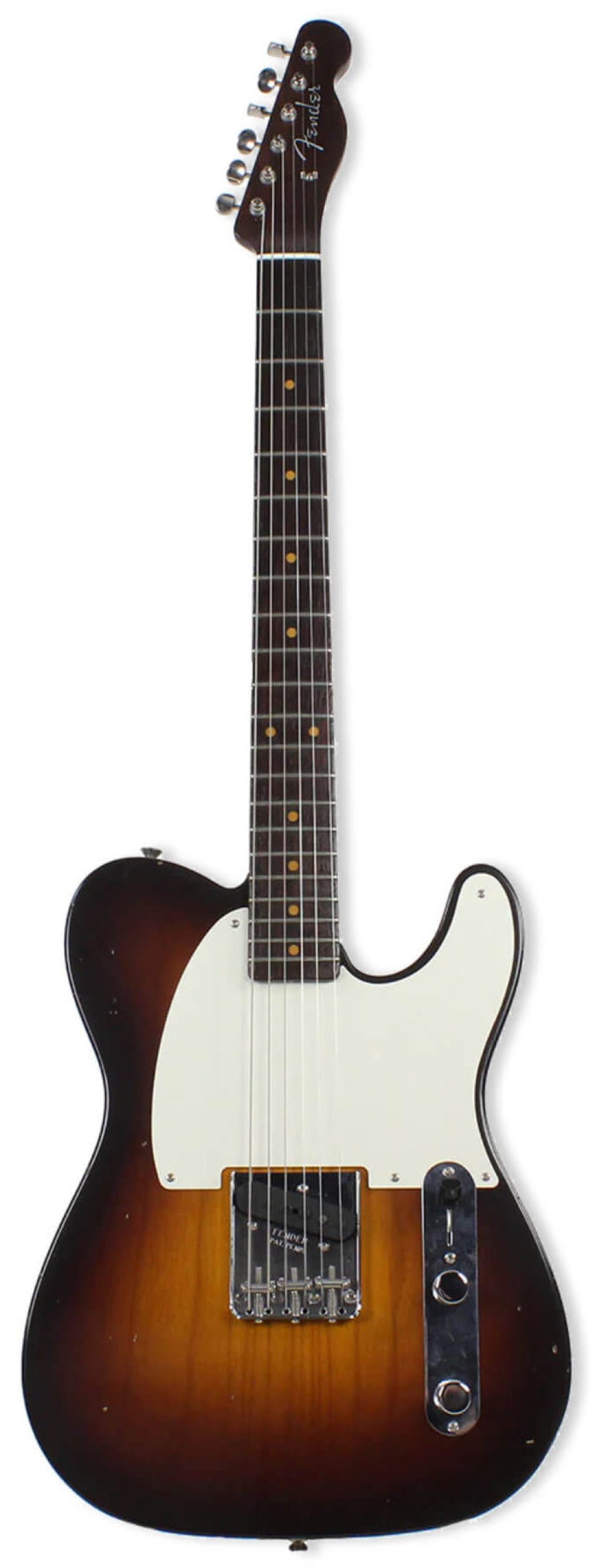

Custom Shop 1997 Limited Journeyman Relic ’57 Esquire

Model# 154-5692-803


BODY

Wood: Select Ash

Lacquer: Nitrocellulose

Shape: Standard Telecaster

Pickguard: 1-Ply Parchment (5-Hole)

Serial: Stamped on Neckplate | CZ+6 digits


NECK

Wood: Quartersawn Rosewood

Fretboard: Round Lam.Rosewood

Lacquer: Nitrocellulose

Inlays: Clay Dots

Profile: 1957 "V"

Neck Thickness ."860-1.000"

Headstock: Standard Telecaster

Nut Width: 1.650" (42mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5"

#Frets: 21

Fretwire: 6105 Narrow Tall

Trussrod: Heel Adjust

MicroTilt: No

Contoured Heel: No


HARDWARE

Bridge Type: Vintage 3-Saddle String-Thru

Bridge Marking: Fender Pat.Pend

Saddles: Steel Barrel Saddles

Tuners: Gotoh SD91 Vintage Klusons

String Tree: ‘50s Round Button

Knobs: Knurled Flat Tops

Neckplate: 4-Bolt Std "Custom Shop USA Ltd Ed." + Serial

Control Plate: Chrome Standard

Strap Buttons: Standard Vintage


ELECTRONICS

Switch: CRL 3-Way Blade / Top-Hat Switch Tip

Wiring: Vintage Wiring:

  • Pos.1 Pickup Straight To Output Jack.
  • Pos. 2 Pickup To Volume Pot,.
  • Pos. 3 Pickup To Volume and Tone Pots

Pots

• CTS 250k Master Volume

• CTS 250k Master Tone

Pickup Config: SS

Bridge Pickup: Custom Shop Handwound '58 Single-Coil


ACCESSORIES & INFO

CASE: Tweed Case w/ Red Lining

Colors:

Chocolate 3-Tone Sunburst

Wide Fade Chocolate Sunbust (803)

Decal:
