Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.

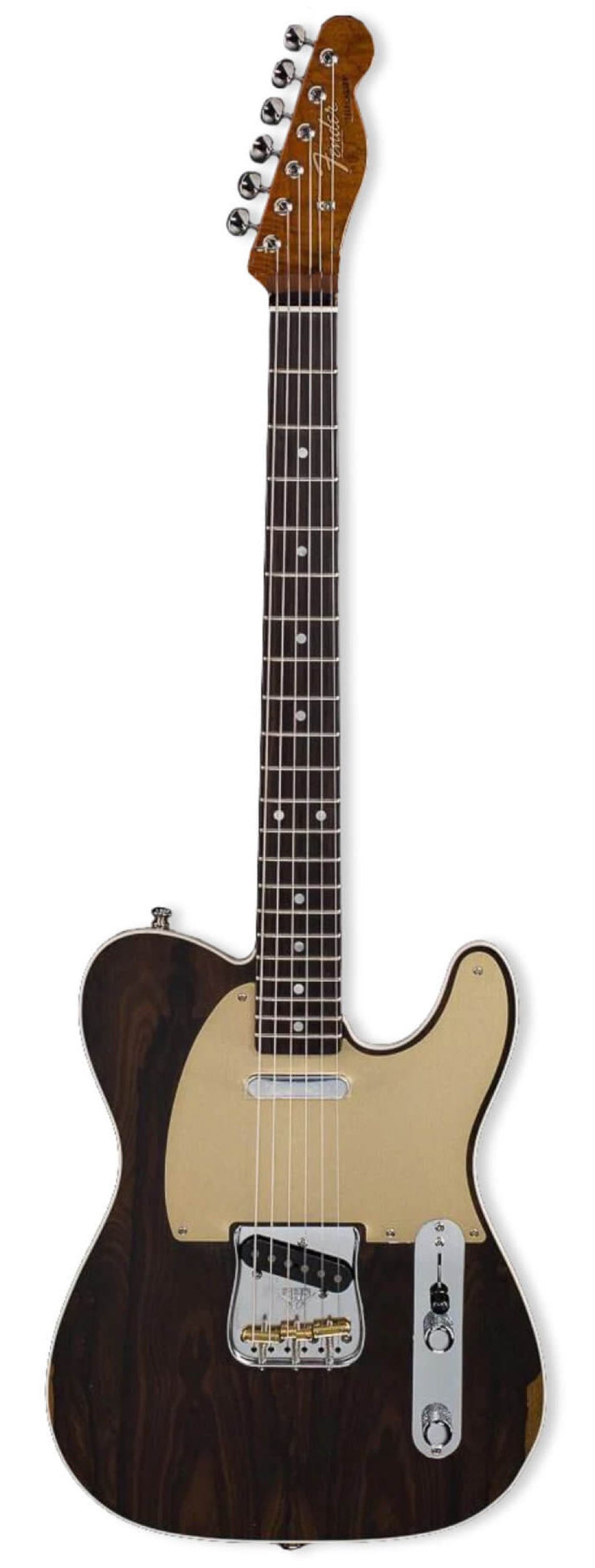

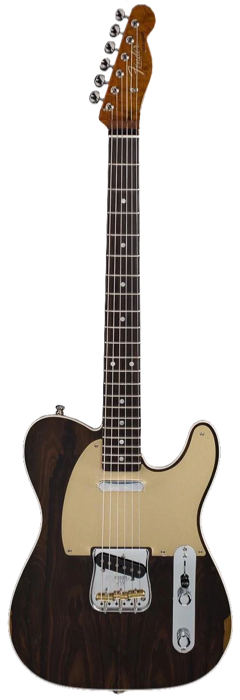

Model# 923-5000-595
BODY
Wood: Roasted Ash Body with Ziricote Top
Lacquer: Nitrocellulose
Shape: Standard Telecaster
Pickguard: 1-Ply Anodized Gold
Serial: CZ+6 digits (Neckplate)
NECK
Wood: Roasted 4A Flame Maple
Fretboard: Macassar Ebony
Lacquer: Gloss Nitrocellulose
Profile: '63 "C"
Inlays: Mother of Pearl White Dot
Headstock: Standard Telecaster
Nut Width: 1.650" (42 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"-12" Compound
#Frets: 21
Fretwire: 6105 Narrow Tall
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: RSD High-Mass Bridge String-Thru
Bridge Marking: "RSD"
Saddles: Compensated Brass Bullet Barrels
Tuners: Gotoh SD91 Vintage Klusons (Single Line)
String Tree: Butterfly
Knobs: Knurled Dome
Neckplate: 4-Bolt Std "Custom Shop USA" + Serial
ELECTRONICS
Switch: 3-Way CRL /Barrel Switch Tip
Wiring: Modern Std: N/BN/B
Pots: Master Volume + Master Tone
Pickup Config: SS
Neck Pickup: Custom Shop Hand-Wound Loaded '51 Nocaste
Bridge Pickup: Custom Shop Hand-Wound Loaded '51 Nocaste
CASE: CS Black Tolex Hardcase w/ Red Lining
Colors:
Natural (595)
