Artisan Koa Thinline NOS

Artisan Series (2020-2022)

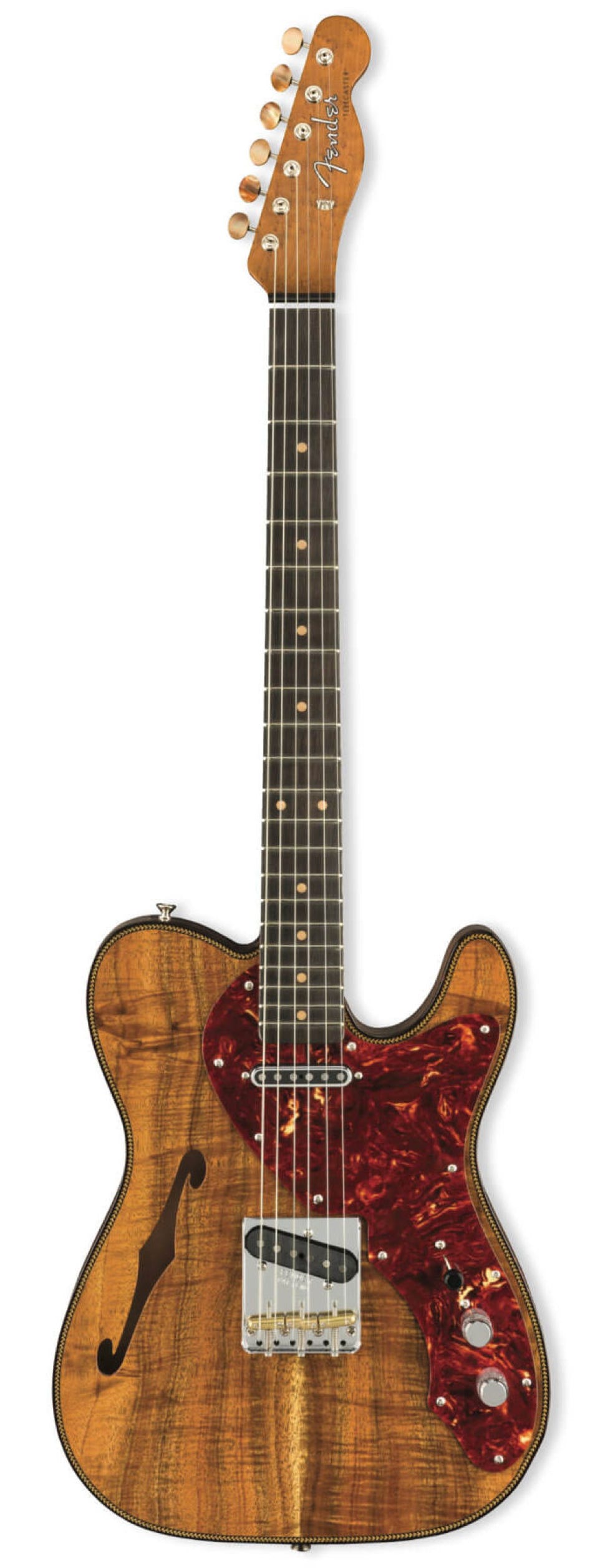

Custom Shop 2020 2022 Artisan Koa Thinline NOS Natural
Custom Shop 2020 2022 Artisan Koa Thinline NOS Natural Rear

Model# 923-5000-852


BODY

Wood: 2 Piece Select Fiji Mahogany w/ 4A Figured Koa Top

Binding: Black / Gold Herringbone Top Bound

Lacquer: NOS Nitrocellulose

Shape: Semi-Hollow Telecaster

Pickguard: 1-Ply Tortoise Shell (12-Hole)

Serial: Stamped on Neckplate | CZ+6 digits


NECK

Wood: Roasted 3A Birdseye Maple

Fretboard: Round-Lam African Blackwood

Lacquer: Nitrocellulose

Inlays: Vintage Clay Dots

Profile: 1963 Strat Style "C"

Neck Thickness .810"-.970"

Headstock: Standard Telecaster

Nut Width: 1.650" (42mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9,5"

#Frets: 21

Fretwire: 6105 Narrow Tall

Trussrod: Heel Adjust

MicroTilt: No

Contoured Heel: No


HARDWARE

Bridge Type: Vintage 3-Saddle String-Thru

Bridge Marking: FENDER Pat.Pend

Saddles: RSD Compensated Brass Bullet Barrels

Tuners: Gotoh SD91 Vintage w/ Tortoise Shell Buttons

String Tree: Butterfly

Knobs: Knurled Flat Top

Neckplate: 4-Bolt Std "Custom Shop USA"

Strap Buttons: Standard Vintage


ELECTRONICS

Switch: CRL 3-Way Blade / Barrel Switch Tip

Wiring: Fat 50’s Wiring (N/NB/B)

Pots

• CTS 250k Master Volume

• CTS 250k Master Tone

Pickup Config: SS

Neck Pickup: Custom Shop Hand-Wound Open Loaded Nocaster

Bridge Pickup: Custom Shop Hand-Wound Loaded Nocaster


ACCESSORIES & INFO

CASE: CS Deluxe Black Tolex Hardcase w/ Red lining


DESCRIPTION:

Fat 50s wiring is an adaptaion of the Gibson 50´s wiring. Tone to volume is Slighty different wired, so that they naturally retain a a brightness on volume when rolling off. Compared to treble bleed, they slightly alter the behaviour of the pot as well.

Colors:

Natural (852)

Decal:

Key
