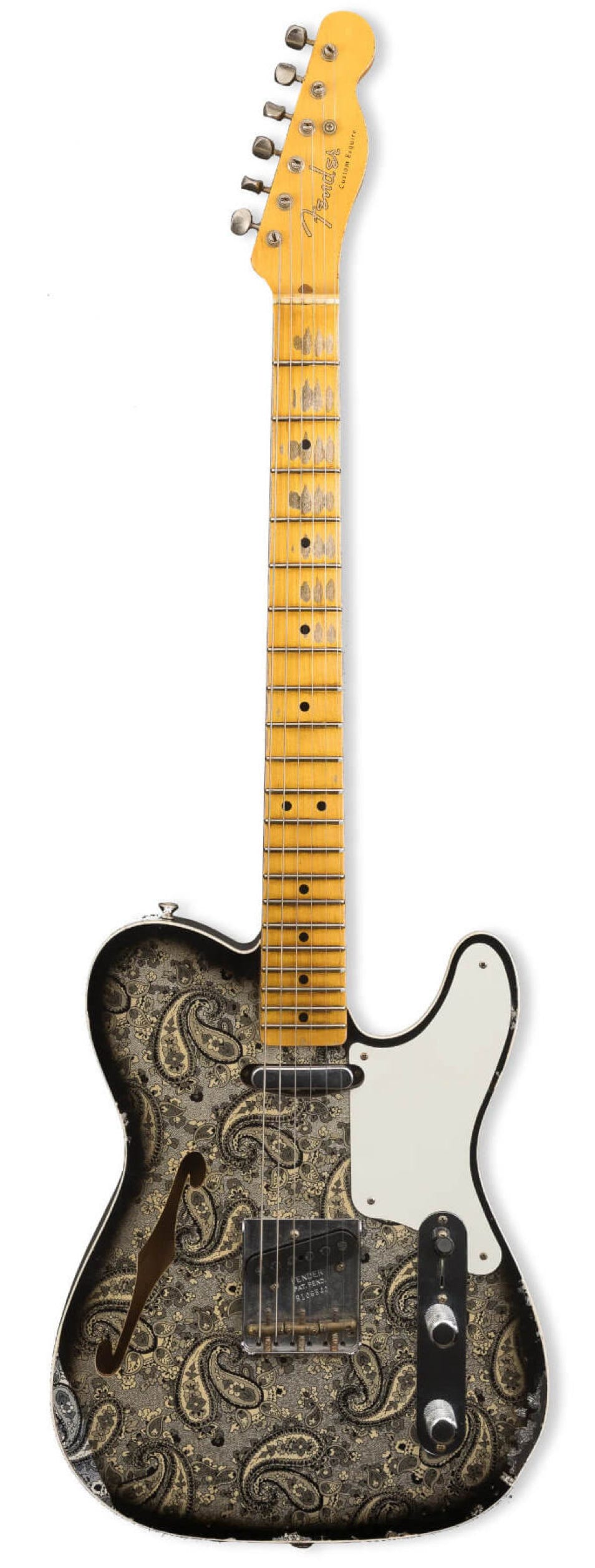

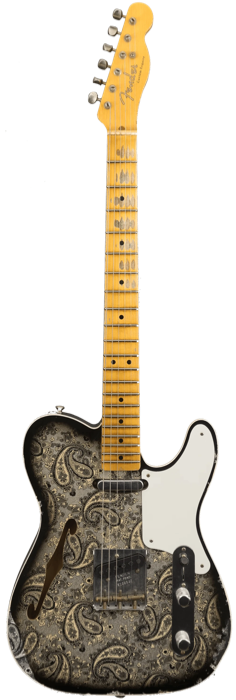

LTD Double Esquire Thinline Custom Relic

Limited Series (2020)

Colors:

Model# 923-5001-XXX


BODY

Wood: Roasted Pine

Binding: Top Bound White

Lacquer: Nitrocellulose Aged

Shape: Semi-Hollow Telecaster

Pickguard: 1-Ply White

Serial: R+6 digit (Bridge)


NECK

Wood: Rift Sawn Maple

Decal: Spaghetti Gold w/ Black Trim + "Custom Esquire"

Fretboard: Maple

Lacquer: Nitrocellulose Aged

Profile: 11/56 Off Center "V"(.930"-.980")

Inlays: Black Dot

Headstock: Standard Telecaster

Nut Width: 1.650” (42mm)

Nut Material: Bone

Scale: 25.5"

Radius: 7.25"- 9.5" compound

#Frets: 21

Fretwire: 6105 Narrow Tall

Trussrod: Heel Adjust

MicroTilt: No

Contoured Heel: No


HARDWARE

Bridge Type: Reversed Vintage 3-Saddle String-Thru

Bridge Marking: FENDER Pat.Pend

Saddles: RSD Compensated Brass Bullet Barrels

Tuners: Gotoh SD91 Vintage Klusons (Single Line)

String Tree: Butterfly

Knobs: Knurled Flat Tops

Neckplate: 4-Bolt "Fender Custom Shop USA Ltd Edition" + Serial


ELECTRONICS

Switch: 3-Way CRL /Barrel Switch Tip

Wiring: Dark Vintage Wiring:

  • Pos 1. Bridge Pickup (Neck Blend Control)
  • Pos 2. Neck Pickup,
  • Pos 3. Neck Pickup Tone Bypass

Pots: Master Volume + Master Tone(Blender Pos.1)

Pickup Config: SS

Neck Pickup: Custom Shop Hand-Wound '50-'51 Blackguard

Bridge Pickup: Custom Shop Hand-Wound '50-'51 Blackguard


CASE: Deluxe Tweed Hardcase w/ Gold Lining

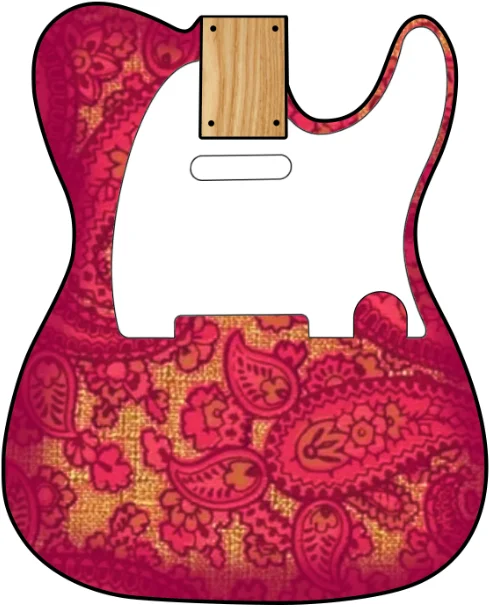

Aged Black Paisley - Aged Pink Paisley -

Aged Blue Floral
