Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.

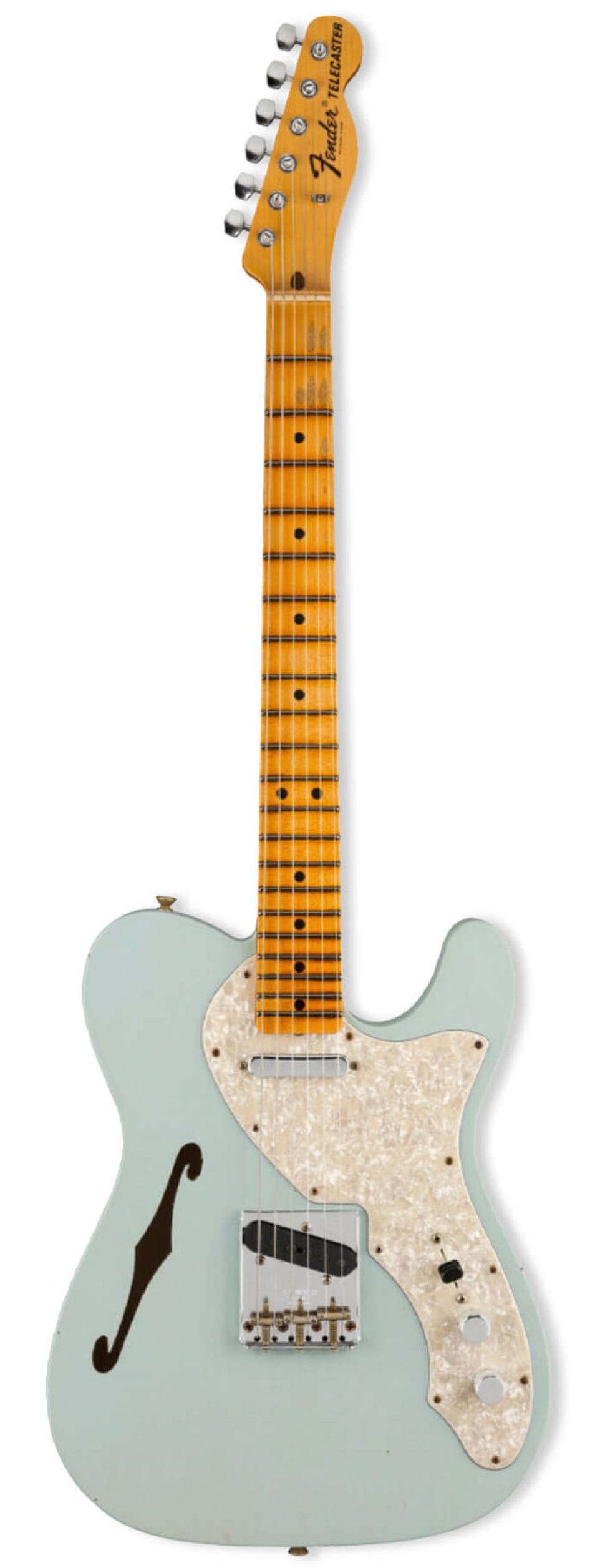

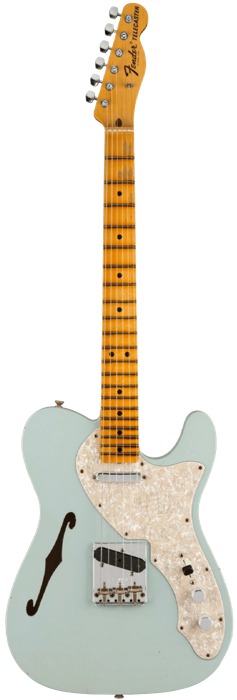

Model# 923-5001-176 (Journeyman Relic)
BODY
Wood: Chambered 2-Piece Select Ash
Lacquer: Nitrocellulose
Shape: Semi Hollow Telecaster / F-Hole
Pickguard: 1-Ply White Pearloid / 12-Hole
Serial: CZ+6 digits (Neckplate)
NECK
Wood: Quartersawn Maple (w/ Skunk Stripe)
Fretboard: Maple
Lacquer: Tinted Nitrocellulose
Profile: 60's Oval "C" (.850"-.920")
Inlays: Micarta Black Dots
Headstock: Standard Telecaster
Nut Width: 1.650" (42 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 21
Fretwire: 6105 Narrow Tall
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: Vintage 3-Saddle String-Thru
Bridge Marking: Pat.No DES.164227 / 2.573.254
Saddles: Slotted Steel Barrel Saddles
Tuners: Schaller Classic "F" Style
String Tree: Butterfly
Knobs: Knurled Flat Top
Neckplate: 4-Bolt "Custom Shop USA" + Serial#
ELECTRONICS
Switch: 3-Way CRL /Barrel Switch Tip
Wiring: Modern Std: N/NB/B
Pots: Master Volume / Master Tone (Greasebucket)
Pickup Config: SS
Neck Pickup: CS Hand-Wound Texas Special Single-Coil
Bridge Pickup: CS Hand-Wound Texas Special Single-Coil
CASE: CS Deluxe Tan Tolex Case w/ Red Lining
Colors:
3-Tone Sunurst (898)
Aged Natural (897)
Aged Sonic Blue (899)
