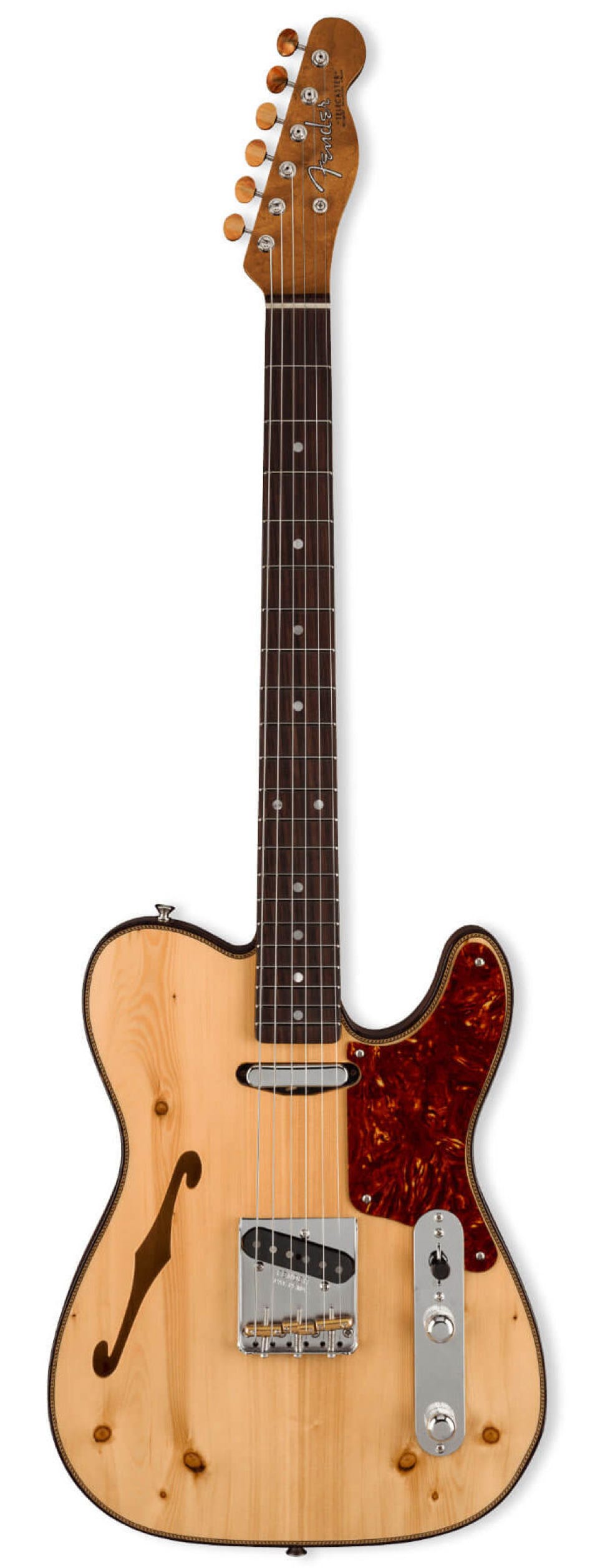

LTD Artisan Knotty Pine Thinline RW

Limited Series (2021 - Today)

Model# 923-1012-530 (NOS)


BODY

Wood:2-Piece Select Roasted Pine + Knotty Pine Top

Binding: Double Bound Black/Gold Herringbone Purfling

Lacquer: Nitrocellulose

Shape:Semi-Hollow Telecaster / F-hole

Pickguard:1-Ply Brown Shell

Serial:CZ+6 digits (Neckplate)


NECK

Wood:Roasted 2A Birdseye Maple

Decal:Modern Black w/ Gold Trim + "Telecaster"

Fretboard:Round Lam. 3A Rosewood.

Lacquer: Nitrocellulose

Profile:60's Oval "C" (.850"-.920")

Inlays:Mother Of Pearl Dots

Headstock:Standard Telecaster

Nut Width:1.650" (42 mm)

Nut Material:Bone

Scale:25.5"

Radius:9.5"

#Frets:21

Fretwire:6105 Narrow Tall

Trussrod: Heel Adjust

MicroTilt:No

Contoured Heel:No


HARDWARE

Bridge Type:Vintage 3-Saddle String-Thru

Bridge Marking: FENDER Pat.Pend

Saddles:RSD Compensated Brass Bullet Barrels

Tuners:Gotoh SD91 Vintage w/ Tortoise Shell Buttons

String Tree: 50s Round Button

Knobs:KnurledDome

Neckplate:4-Bolt Std "Custom Shop USA Limited Edition."


ELECTRONICS

Switch:3-Way CRL /Barrel Switch Tip

Wiring:Modern Std: N/NB/B

Pots: Master Volume / Master Tone

Pickup Config:SS

Neck Pickup:CS Hand-Wound Loaded Nocaster Single Coil

Bridge Pickup:CS Hand-Wound Loaded Nocaster Single Coil


CASE:CS Deluxe Black Tolex Case w/ Red Lining

Colors:

Aged Natural
