2-Pin Tuners Replacement (Direct Drop-in)
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Split Shaft Kluson Vintage (Direct Drop-in)
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.

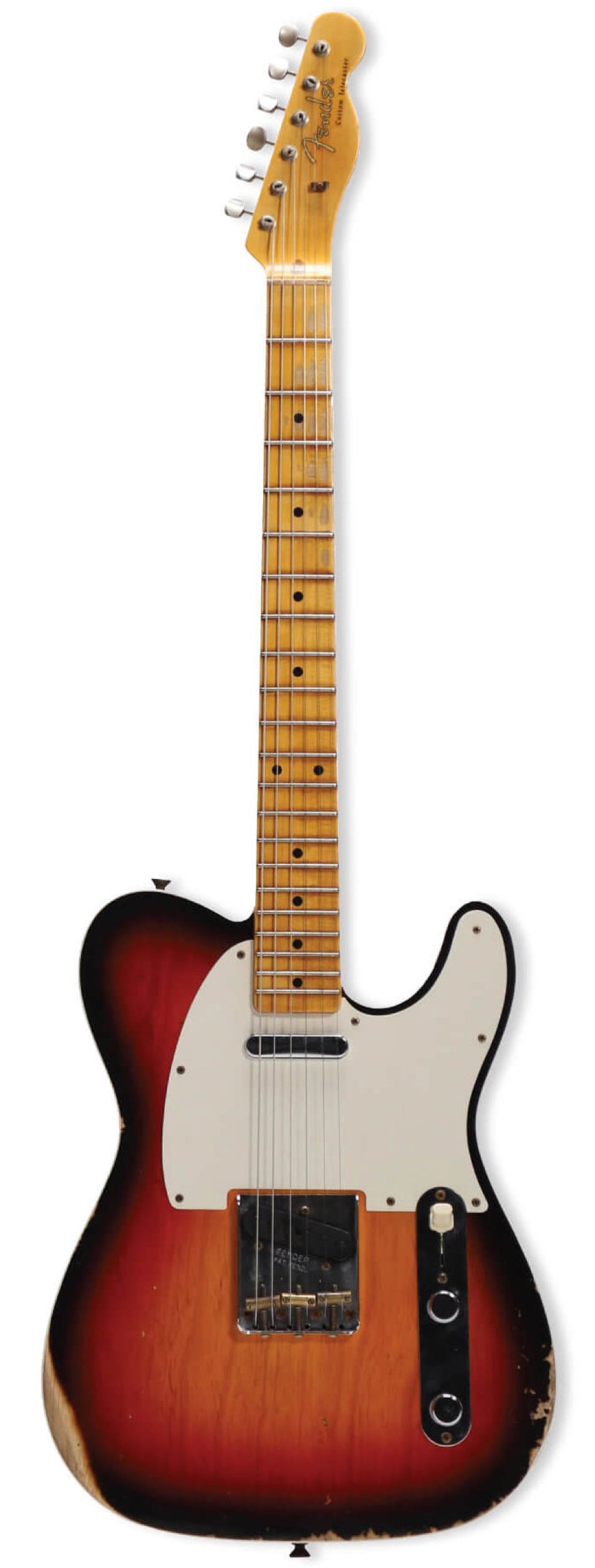

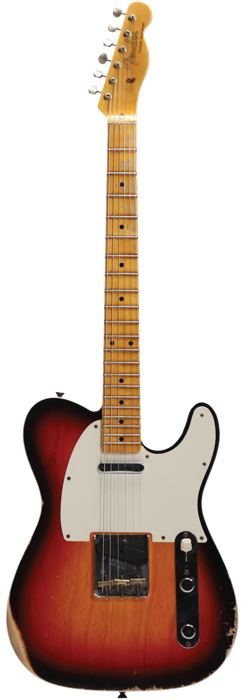

Time Machine Series (2022)
Model# 923-5001-XXX (Relic)
BODY
Wood: 2-Piece Select Alder / (Ash on 563)
Binding: Top Parchment bound
Lacquer: Nitrocellulose
Shape: Standard Telecaster
Pickguard: 1-Ply Parchment
Serial: CZ+6-digit (Neckplate)
NECK
Wood: 1-Piece Quartersawn Maple
Decal: Spaghetti Goldish w/ Black Trim + "Telecaster Custom"
Fretboard: Maple
Lacquer: Nitrocellulose
Profile: ’59 "D" (.810 "- .950")
Inlays: Micarta Black Dot
Headstock: Standard Telecaster
Nut Width: 1.650" (42 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 21
Fretwire: 6105 Narrow Tall
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: Vintage 3-Saddle String-Thru
Bridge Marking: FENDER Pat.Pend.
Saddles: Compensated Brass Barrels
Tuners: Gotoh SD91 Vintage Klusons (Single Line)
String Tree: Butterfly
Knobs: Knurled Flat Top
Neckplate: 4-Bolt "Fender Custom Shop USA" Plate
ELECTRONICS
Switch: 3-Way CRL /White Top Hat Switch Tip
Wiring: Modern Std: N/BN/B
Pots: Master Volume + Master Tone (Greasebucket Wiring)
Pickup Config: SS
Neck Pickup: Custom Shop Hand-Wound Texas Special
Bridge Pickup: Custom Shop Hand-Wound Texas Special
CASE:Deluxe Tweed Case w/Red Lining
Colors:
Wide-Fade Chocolate 3-Color Sunburst
Sherwood Green Metallic
Aged Black
