2-Pin Tuners Replacement (Direct Drop-in)
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Split Shaft Kluson Vintage (Direct Drop-in)
Fender PING Vintage Tuners
Fender PING Road Worn Relic Vintage
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.

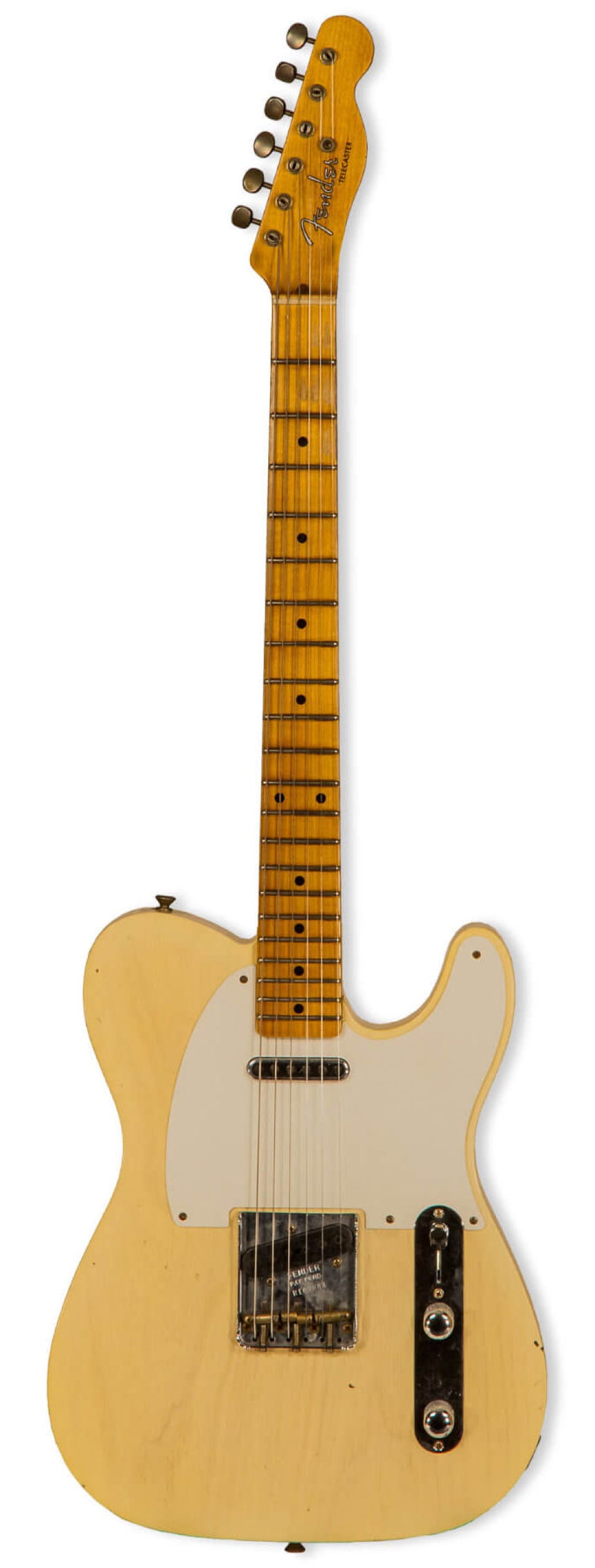

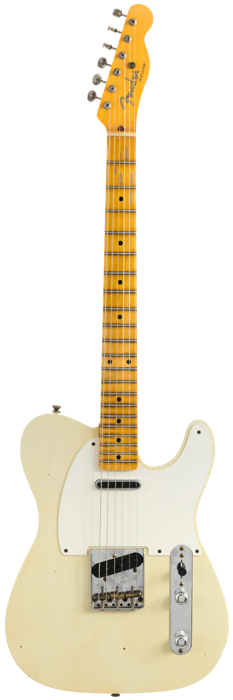

Limited Series (2022)
Model# 923-5001-XXX
BODY
Wood: 2-Piece Select Ash
Lacquer: Nitrocellulose (Relic)
Shape: Standard Telecaster
Pickguard: 1-Ply Parchment
Serial: R+6 digits (Bridge Stamped)
NECK
Wood: Rift Sawn Maple
Decal: Silver Spaghetti w/ Black Trim + "Telecaster"
Fretboard: Maple
Lacquer: Nitrocellulose(Relic)
Profile: ''57 Soft "V" (.930 - .980)
Inlays: Micarta Black Dots
Headstock: Standard Telecaster
Nut Width: 1.625″ (41.3 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 7.25" - 9.5" Compound
#Frets: 21
Fretwire: 6105 Narrow Tall
Trussrod: Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge Type: Reverse Angle Vintage 3-Saddle String-Thru
Bridge Marking: FENDER Pat. Pend + Serial#
Saddles: RSD Brass Bullet Barrels
Tuners: Gotoh SD91 Vintage (Single Line)
String Tree: 50s Round Button
Knobs: KnurledDome
Neckplate: 4-Bolt Std "Custom Shop USA Limited Edition." + Serial#
ELECTRONICS
Switch: 3-Way CRL /Top-Hat Switch Tip
Wiring: Std: '51 Nocaster Bender Wiring for Tone
Pots: Master Volume / Master Tone
Pickup Config: SS
Neck Pickup: CS Hand-Wound Tomatillo Tele Single-Coil
Bridge Pickup: CS Hand-Wound Tomatillo Tele Single-Coil
CASE: CS TweedCase w/ Red Lining
Colors:
Natural Blonde - Tomatillo Green - Tahitian Coral
