Vintage Custom ’59 Esquire Top-Load

Vintage Custom Series 2022

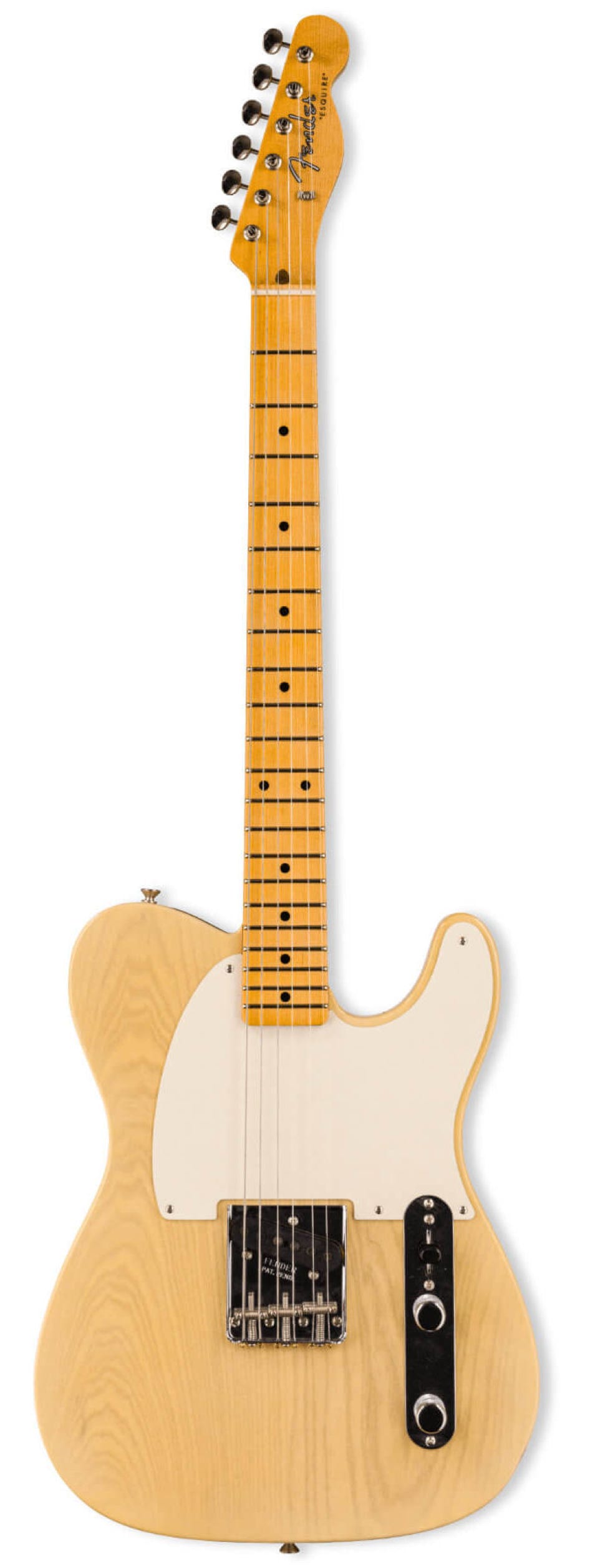

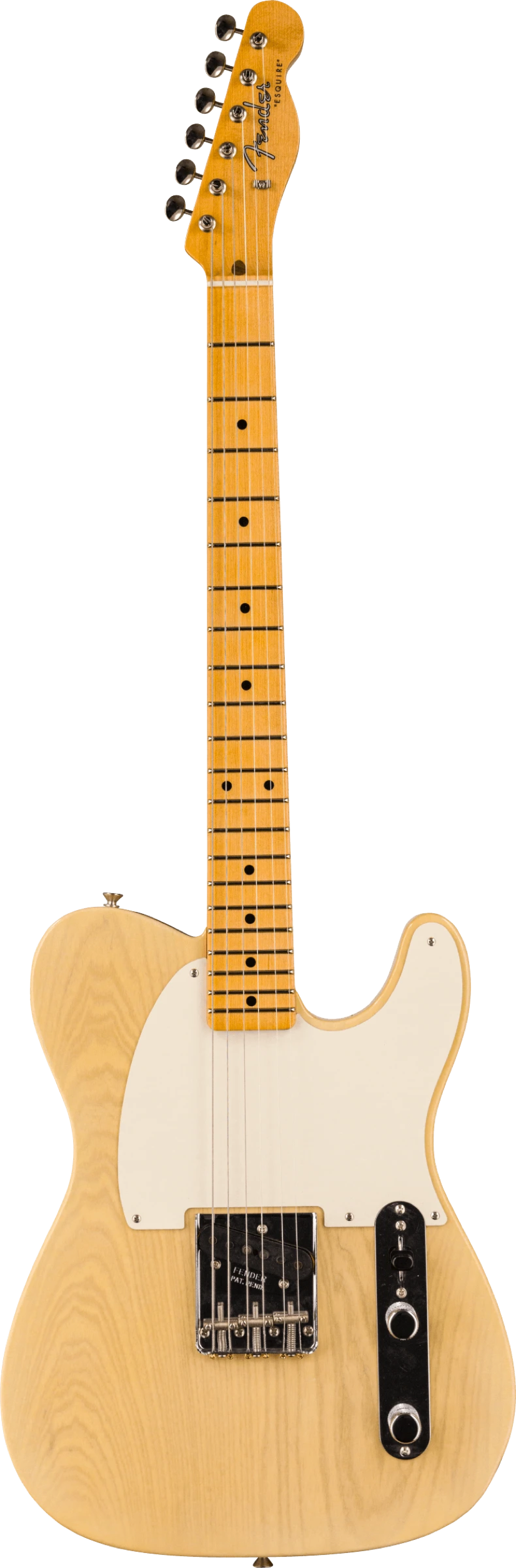

Custom Shop 2022 Vintage Custom ’59 Esquire Top-Load

Model# 923-5001-544 (N.O.S)


BODY

Wood: 2-Piece Select Ash

Lacquer: Flash Coat Nitrocellulose

Shape: Standard Esquire Telecaster

Pickguard: 1-Ply Parchment (5-Hole)

Serial: Stamped on Neckplate | R+6-digit


NECK

Wood: Rift Sawn Maple

Fretboard: Maple

Lacquer: Nitrocellulose

Inlays: Micarta Black Dot

Profile: '59 "D"

Neck Thickness .810"-.950"

Headstock: Standard Telecaster

Nut Width: 1.650"(42mm)

Nut Material: Bone

Scale: 25.5"

Radius: 7.25"-9.5" Compound

#Frets: 21

Fretwire: Jescar 47095 Medium Vintage

Trussrod: Heel Adjust

MicroTilt: No

Contoured Heel: Yes


HARDWARE

Bridge Type: Vintage 3-Saddle Top-Loaded

Bridge Marking: FENDER Pat.Pend.

Saddles: Threaded Steel Saddles

Tuners: Gotoh SD91 Vintage Klusons (Single Line)

String Tree: Butterfly

Knobs: Knurled Flat Tops

Neckplate: 4-Bolt Blank Plate + Serial#

Control Plate: Chrome Standard

Strap Buttons: Standard Vintage


ELECTRONICS

Switch: CRL 3-Way Blade / Top-Hat Switch Tip

Wiring: Vintage ‘50s Esquire Wiring:

  • Pos 1. Bridge (Tone control off),
  • Pos 2. Bridge (Tone control on),
  • Pos 3. Bridge (Tone control off, preset treble roll-off)

Pots

• CTS 250k Master Volume

• CTS 250k Master Tone

Pickup Config: S

Bridge Pickup: Custom Shop Hand-Wound '58 Single-Coil Tele


ACCESSORIES & INFO

CASE:Deluxe Tweed Case w/Red Lining

Colors:

Faded Natural Blonde

Faded Natural Blonde (544)

Decal:

Key
