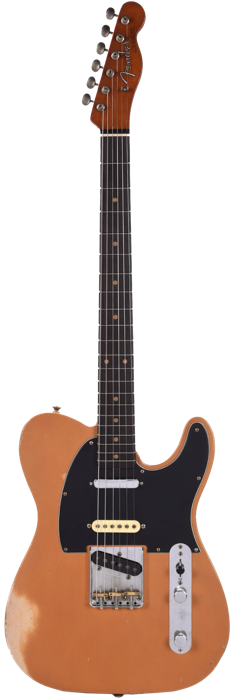

Masterbuilt Levi Perry 1962 Hot Shot Deluxe

Limited Edition Series (2024)

Decal:

Colors:

Sahara Taupe (899)

Model# 921-7100-899


BODY

Wood: Select Alder

Binding: None

Lacquer: Nitrocellulose Lacquer

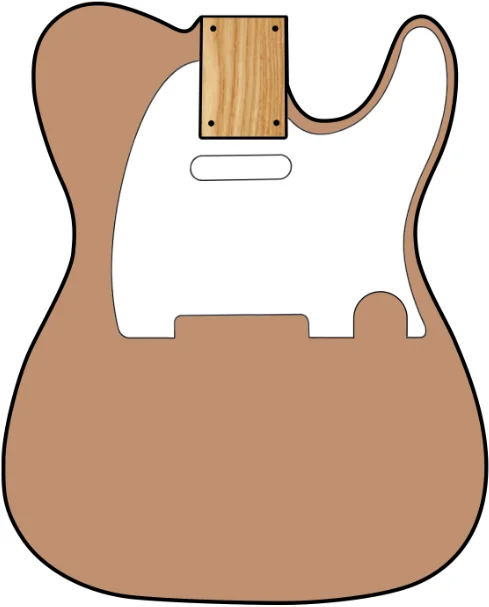

Shape: Standard Telecaster

Pickguard: 3-Ply Black

Serial: CZ+6 on Neckplate, Also R+5 Digits (Bridge)

(The Neckplate serial is the proper one)


NECK

Wood: Rift Sawn Maple

Fretboard: Round Laminated AAA Rosewood

Lacquer: Nitrocellulose Lacquer

Profile: 1963 "C"

Neck Thickness .830” - 1.000”

Inlays: Vintage Clay Dots

Headstock: Standard Telecaster

Nut Width: 1.650” (41.9 mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5”

#Frets: 21

Fretwire: 6105 Narrow Tall

Trussrod: Single Action Heel Adjust

MicroTilt: No

Contoured Heel: No


HARDWARE

Tremolo: Vintage 3-Saddle String Thru

Bridge Stamps: FENDER Pat.Pend + R-serial

Saddles: Aged Brass Barrels

Tuners: Gotoh SD91 Pure Vintage Tuners

String Tree: Aged Butterfly

Knobs: Chrome Knurled Flat Tops

Control Plate: Chrome Standard

Neckplate: 4-Bolt Fender Custom Shop Logo + Serial


ELECTRONICS

Switch: 3-Way / Barrel Switch Tip

Wiring: Fat 50’s Wiring

Pots: Master Volume/ Master Tone CTS.

Pickup Config: SSS

Bridge Pickup:Josefina HW Chicago Special Telecaster Pickup

Middle Pickup: Josefina HW Chicago Special Stratocaster Pickup (Cream cover)

Neck Pickup: Josefina HW Chicago Special Telecaster Pickup (Chrome Cover)

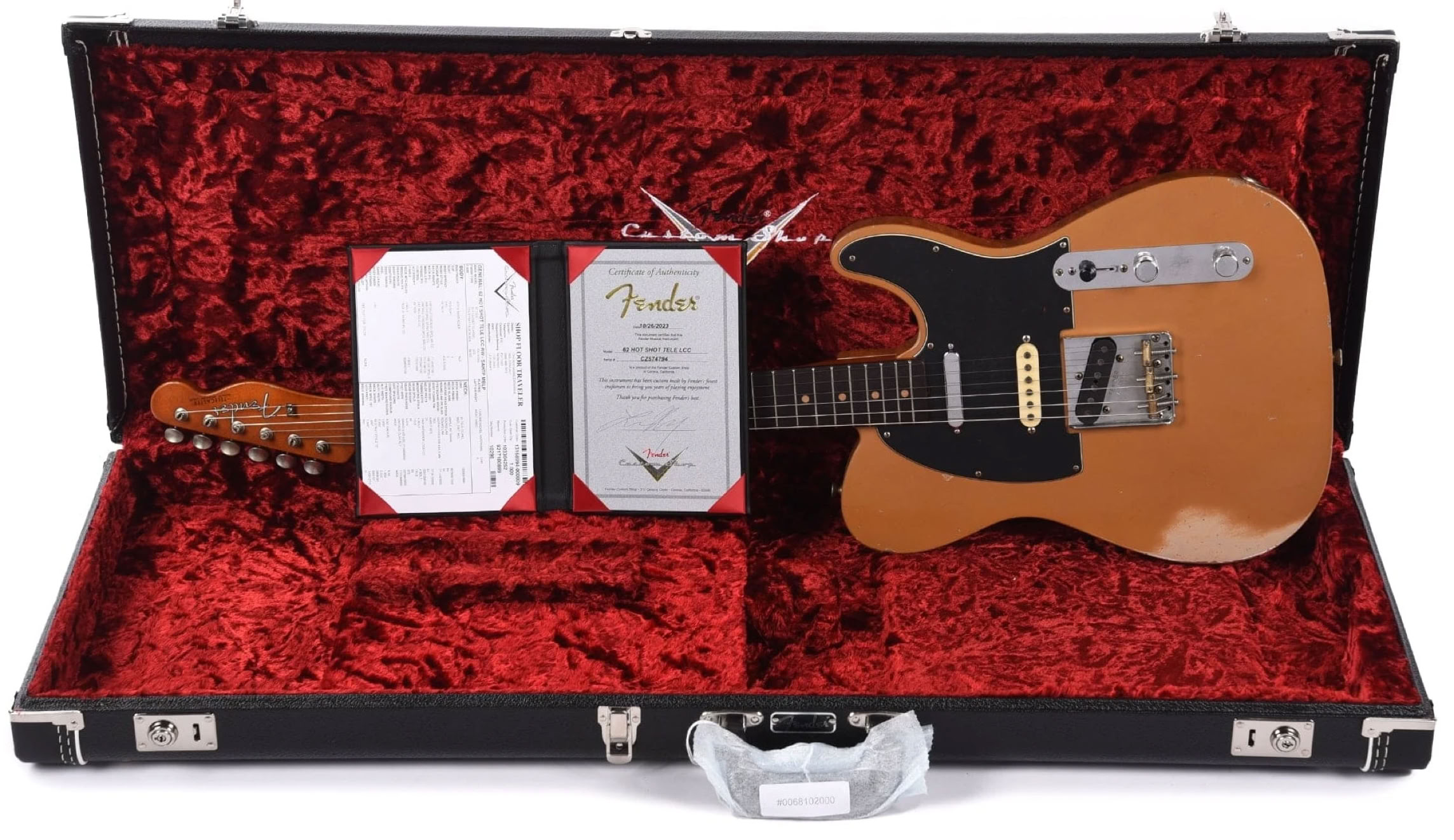

CASE: Deluxe Hardshell Case


MASTERBUILDER: Levi Perry

STRINGS: Nickel Plated Steel (.010-.046 Gauges) Factory

PRICE: $9.000
