MEXICO TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 014-7450-XXX (Rosewood) (300, 310, 399)
Model# 014-7452-XXX (Maple) (323, 335, 360)
BODY
Wood: Alder
Lacquer: Gloss Polyester
Shape: Standard Telecaster
Pickguard: 3-Ply Various (See Photos)
Serial: Headstock Rear / MX-Serial (Made In Ensenada)
NECK
Wood: Maple
Fretboard: Maple or Rosewood
Inlay: White / Black Dot
Rolled Fingerboard: Yes
Neck Lacquer: Satin Urethane Back / Gloss Front
Headstock: Standard Telecaster
Neck Profile: Modern "C"
Nut Width: 1.650″ (42 mm)
Nut Material: TUSQ
Scale: 25.5”
Radius: 9.5"
#Frets: 22
Fretwire: Medium Jumbo
Trussrod: Headstock Single Action Adjust
HARDWARE
Bridge: Modern Flat 6-Saddle String-Thru
Bridge Markings: None
Saddles: Chromed Brass Block Saddles
Tuners: Fender Die Cast Sealed Locking / All Short Posts ⚙︎
String Tree: Modern Dual Wing
Knobs: Knurled Flat Top
Neckplate: 4-Bolt / Large Classic "F" Stamped
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard Wiring N/NB/B
Other: Series / Parallell at Push Pull Tone Pot
Pots: Standard Vol 250k / Push/Pull Tone Pot 250k
PU Config: SS
Neck Pickup: Player II Noiseless Pickup
Bridge Pickup: Player II Noiseless Pickup
CASE/BAG: Deluxe Gig Bag Included
STRINGS: 009-.042 Gauge (Factory)
PRICE2025:$999.99
INFO:
Unveiled April 18 2025 on Fender Website.

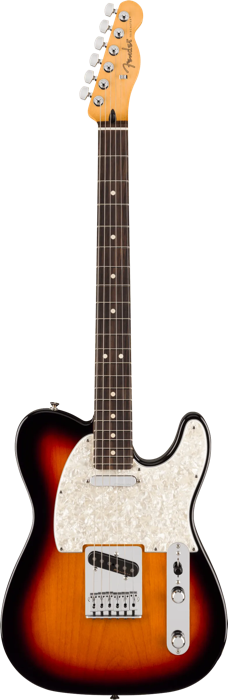

3 Tone Sunburst (300)
Dusk (310)
Harvest Green Metallic (399)
Olympic Pearl (323)
Electric Blue (335)
Sunshine Yellow (360)
