MEXICO TELECASTERS

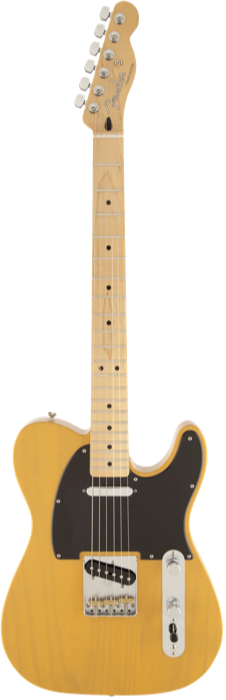

Special Edition Deluxe Ash Telecaster

Deluxe Series (2011 - 2019)

Decal:

Model# 014-0112-XXX

BODY

Wood: Ash

Lacquer: Gloss Polyester

Shape: Standard Telecaster

Pickguard: 1-Ply Black (550) / 3-Ply Parchment (530)

Serial: Headstock Rear / MX-serial (+Special Edition Sticker)

NECK

Wood: Maple

Fretboard: Maple

NeckLacquer: Gloss Urethane

Headstock: Standard Headstock

Neck Profile: "C" Shape (.086'-.900')

Nut Width: 1.650" (42 mm)

Nut Material: Synthetic Melamine Bone

Scale: 25.5”

Radius: 9.5"

#Frets: 21

Fretwire: 6130 Medium Jumbo

Trussrod: Standard Headstock Adjust

HARDWARE

Bridge Type: Vintage 3-Saddle String-Thru

Bridge Markings: "FENDER Pat.Pend"

Saddles: Brass Barrel Saddles

Tuners: Standard Schaller/Fender Sealed Die Cast

String Tree: Butterfly

Knobs: Knurled Flat-Top

Neckplate: 4-Bolt Blank Plate

Control Plate: Chrome Reversed

ELECTRONICS

Switch: 3-Way / Barrel Switch Tip

Wiring: Modern Wiring N/NB/B (Reversed Control Plate)

Pots: Master Vol. / Master Tone

PickupConfig: SS

NeckPickup: Standard Single-Coil Tele (8.5k)

BridgePickup: Standard Single-Coil Tele (10.5k)

CASE/GIG BAG: None

INFO:

Although it is labeled as a FSR, the Special Edition Deluxe Ash Telecaster was made in various short runs over nearly a decade. A Cherry Sunburst finish was added in 2017.

Colors:

Butterscotch (550)

Cherry Sunburst (530) 2017-2019
