Standard Series (1990-1997)
Successor: Standard Telecaster (2nd Version)
Decal:
MEXICO TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 013-5202-XXX
BODY
Wood: Poplar
Lacquer: Polyester
Shape: Standard Telecaster
Pickguard: 8-Screw 1-Ply White
Serial: Front Headstock / MNX-serial (X=Number of year: 5=1995 etc)
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Polyester
Headstock: Standard Tele
Neck Profile: Modern "C"
Nut Width: 42mm (usually)
Scale: 25.5”
Radius: 9.5"
#Frets: 21
Fretwire: Vintage Frets
Trussrod: Standard Headstock-Adjust
HARDWARE (inconsistent)
Bridge: Modern 6-Saddle Flat Bridge / Top-Loaded
Bridge Markings: None
Saddles: Mini-Barrel Saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners ⚙︎
String Tree: Butterfly
Neckplate: 4-Bolt / Blank Plate
ELECTRONICS
Switch: 3-Way / Barrel Tip
Wiring: Standard Wiring
Pickup Config: SS
Neck Pickup: Alnico Pickups (Early were ceramic)
Bridge Pickup: Alnico Pickups (Early were ceramic)
PRICE: 1991: $369.99 / 1997: $399.99
INFO:
1990 Saw the first MIM guitars ship out. But the first year was problematic with shortage of parts. Therefore, specs can vary the first 1-2 years. Different hardware (some US stock parts), Block Saddles, Sometimes 22 Frets necks and different decals etc.
February 1994: The Factory burns down and all production is temporary moved to USA. Fender builds a factory much larger within 100 days and resumes production in Ensenada at the end of 1994.
Colors:
3-Tone Sunburst (800) 1994-1997
Black (806)
Arctic White (880)

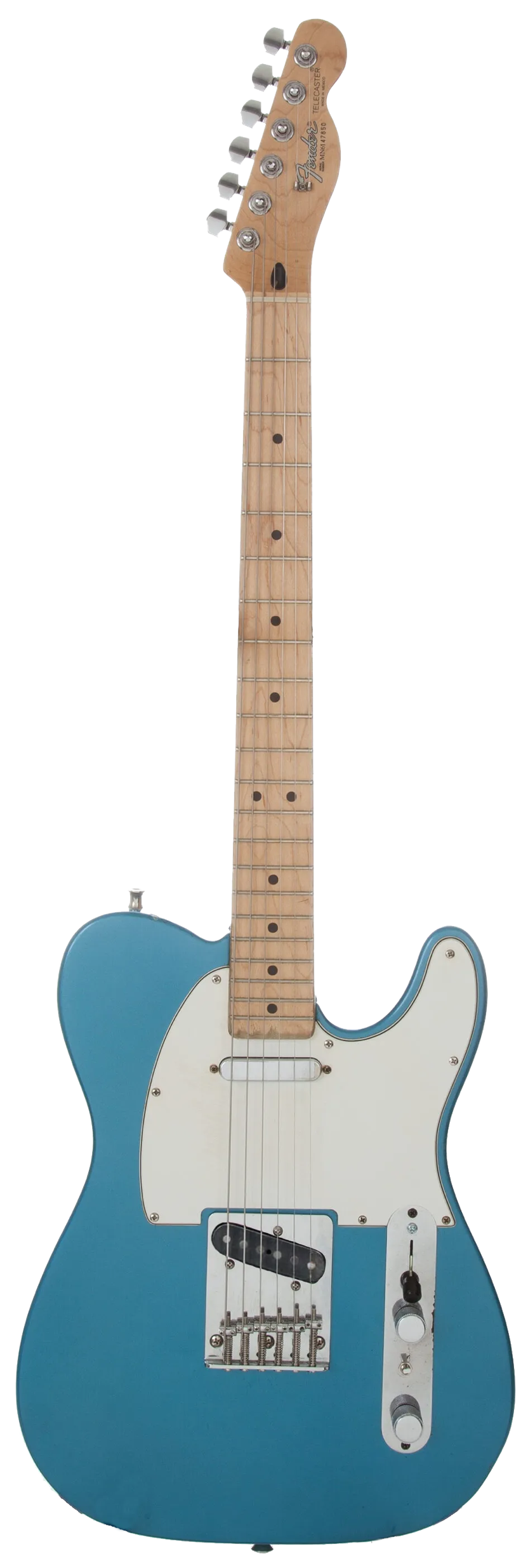

Lake Placid Blue (802)
Crimson Red Metallic (825)
