MEXICO TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Replaces: Telecaster Special | Successor California Fat Telecaster (USA)
Colors:
Model# 013-7302-XXX (Maple)
BODY
Wood: Poplar w/ Ash Veneer / Alder (332)
Lacquer: Gloss Polyester
Shape: Standard Telecaster
Pickguard: 3-Ply Black / 3-Ply White
Serial: Headstock Rear / MN-serial
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Gloss Urethane
Headstock: Standard Headstock
Neck Profile: "C" Shape (1st: 0.84" 12th: 0.85")
Nut Width: 1-11/16" (42.9mm)
Scale: 25.5”
Radius: 9.5"
#Frets: 21
Fretwire: 6130 Medium Jumbo
Trussrod: Standard Headstock Adjust
HARDWARE
Bridge: Vintage 6-Saddle String-Thru
Bridge Markings: "FENDER"
Saddles: Mini-Barrel Steel Saddles
Tuners: PING Vintage Split-Shaft Tuners ⚙︎
String Tree: Butterfly
Knobs: Knurled Flat-Top
Neckplate: 4-Bolt Blank Plate
ELECTRONICS
Switch: 5-Way / Barrel Switch Tip
Wiring: Custom Wiring. Standard Vol / Tone
PU Config: HS
Neck Pickup: USA Made Fender Humbucking Pickup (12.4kΩ)
Bridge Pickup: USA Made Tex-Mex Overwound Single Coil (7kΩ)
CASE/ BAG: Deluxe Gig Bag
PRICE: $649.99 ($50 Extra for 332)
INFO:
Successor of the Telecaster Special. New colors but the TBX is replaced with a Standard on this series.
Only lasted a year before they moved this series over to the USA made California Fat line.
Black (306)
Candy Apple Red (309)

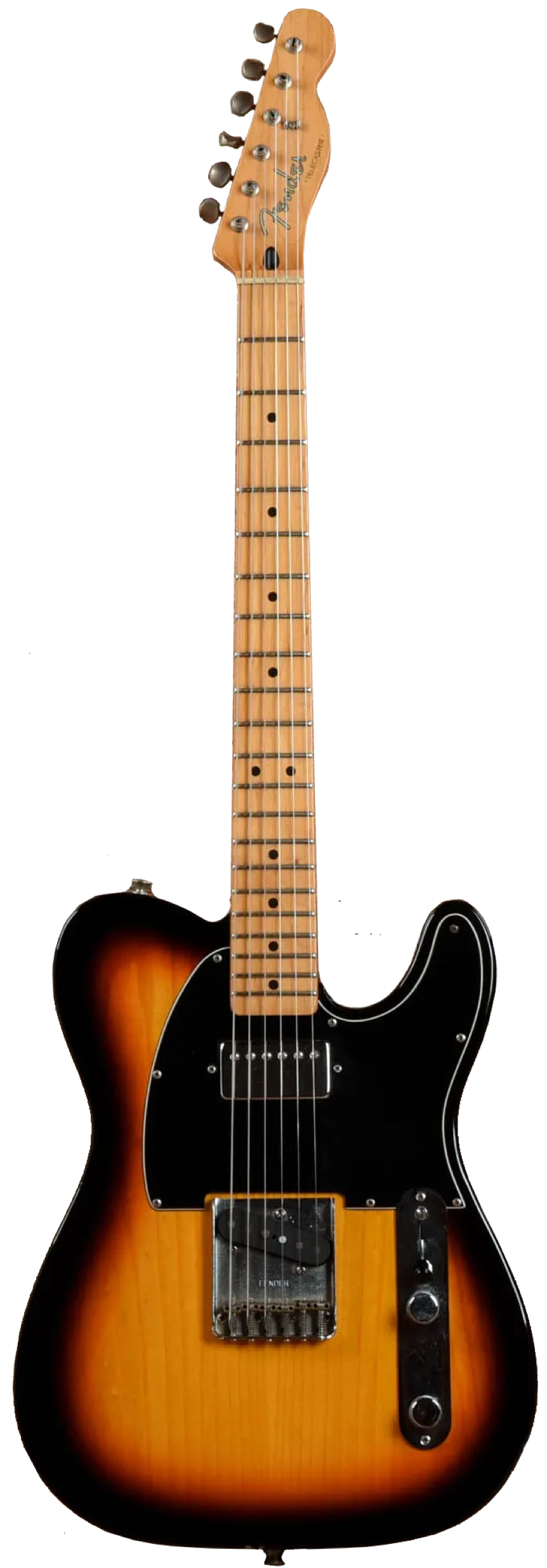

Brown Sunburst (332)
Vintage White (341)
Sonic Blue (372)
