MEXICO TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 014-9742-XXX
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
BODY
Wood: Alder
Lacquer: Gloss Polyester
Shape: Standard Telecaster Semi Hollowbody
Pickguard: 4-Ply Aged Pearloid
Serial: Headstock Rear / MX-serial
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Gloss Urethane
Headstock: Standard Telecaster Shape
Neck Profile: Slim "C"
Nut Width: 1.650" (42 mm)
Scale: 25.5”
Radius: 7.25"
#Frets: 21
Fretwire: 6230 Vintage Frets
Trussrod: CBS Bullet Style Headstock Adjust
Micro Tilt: Yes
HARDWARE
Bridge: 6-Saddle Hardtail Sting-Thru
Bridge Markings: None
Saddles: Vintage Bent-Steel
Tuners: Fender 70’s F-Style Tuners ⚙︎
String Tree: 2 X Butterfly
Knobs: Knurled Flat-Top
Neckplate: 3-Bolt / CBS Style "F" plate with Micro-Tilt
ELECTRONICS
Switch: 3-Way / Barrel Switch-tip
Wiring: Standard Wiring N/BN/N
Pickup Config: HH
Neck Pickup: Fender WideRange Humbucker
Bridge Pickup: Fender WideRange Humbucker
GIB BAG: Deluxe Gig Bag
Colors:
Aged Natural (328)

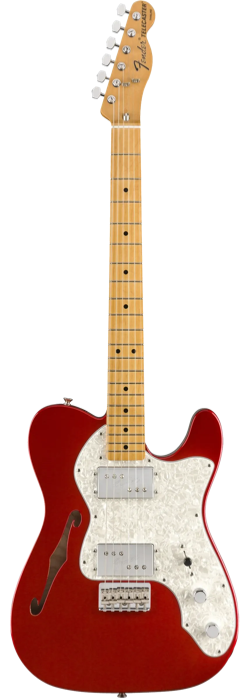

Candy Apple Red (309)
Vintage Blonde (307)
FSR:
Shell Pink (356) FSR for CME
