MEXICO TELECASTERS
Standard Series (2006-2018)
Replaces: Standard Telecaster (Ver.2)
Colors:
Arctic White (380)
Black (306)
Brown Sunburst (332)
Butterscotch Blonde (350)
Candy Apple Red (309)
Lake Placid Blue (302)

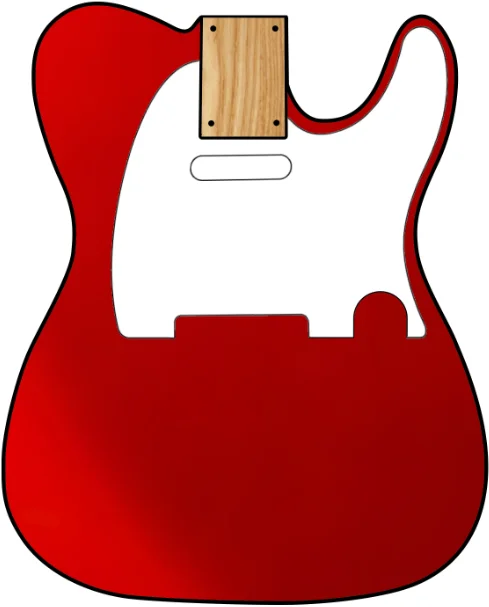

Chrome Red (325) 2006-2008
Electron Blue (387) 2006-2008
Midnight Wine (375) 2006-2008
FSR & LTDs:
- Copper Metallic Burst (584) 2010-2011 (416 Made for GC) Spaghetti Decal

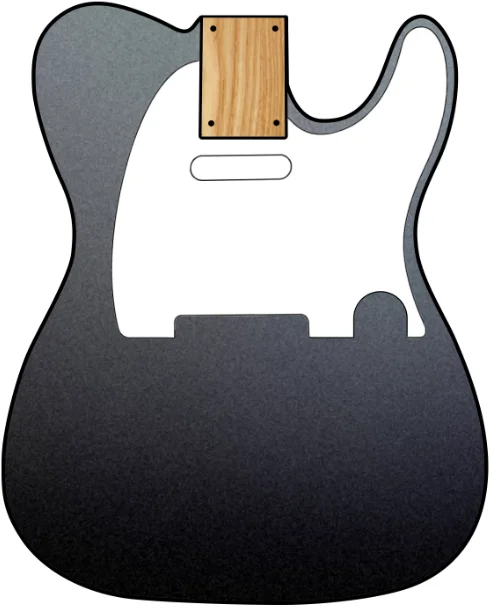

- Silver Burst (591) 2011 (Fender LTD)

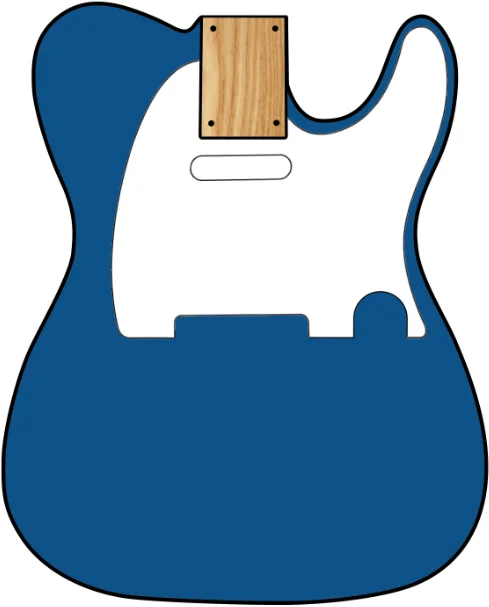

- Ocean Blue Candy (573) RW 2013 Only
Model# 013-5102-XXX (Maple) 2006-2008
Model# 014-5102-XXX (Maple) 2008-2018
Model# 013-5122-XXX (Left Hand Model) 2006-2008
Model# 014-5122-XXX (Left Hand Model) 2008-2018
BODY
Wood: Alder
Lacquer: Gloss Polyester
Shape: Standard Telecaster
Pickguards: 3-Ply 8-Hole / Various:
Serial: Headstock Rear - MZ/MX-serial
NECK
Wood: Maple
Fretboard: Maple
Position Markers: Black Dots
Neck Lacquer: Satin Urethane
Headstock: Standard Telecaster Shape
Neck Profile: Modern "C"
Neck Thickness .870”-.890” (21.6–22.6mm)
Nut Width:1.650" (42 mm)
Nut Material: Synthetic Bone
Scale: 25.5”
Radius: 9.5"
#Frets: 21
Fretwire: 6130 Medium Jumbo
Trussrod: Standard Headstock-Adjust
HARDWARE
Bridge: Modern 6-Saddle String-Thru
Bridge Markings: None
Saddles: Chromed Steel Block Saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners
String Tree: Butterfly
Knobs: Knurled Flat-Top
Neckplate: 4-Bolt / Blank Plate
Control Plate: Standard Chrome
Strap Buttons: Standard Vintage Style
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard Modern Wiring (N/NB/B)
Pots:
• 250k Master Volume
• 250k Master Tone
Caps .05uf
Pickup Config: SS
Neck Pickup: Standard Single-Coil Tele (6.5k)
Bridge Pickup: Standard Single-Coil Tele (5.9k)
ACCESSORIES
BAG: None
STRINGS: Nickel Plated Steel .009-.042
INFO
Most Colors also released as Left Hand models.
DECAL:
