MEXICO TELECASTERS

Model# 014-0096-XXX

BODY

Wood: Ash

Lacquer: Gloss Polyester

Shape: Standard Telecaster

Pickguard:

• 1-Ply Black (550)
• 3-Ply Parchment (530)

Serial: Headstock Rear / MX-serial (+Special Edition Sticker)

NECK

Wood: Maple

Fretboard: Maple

NeckLacquer: Gloss Urethane

Position Markers: Black Dots

Headstock: Standard Headstock

Neck Profile: "C" Shape

Neck Thickness .860”-.900” (21.8–22.9mm)

Nut Width: 1.650" (42mm)

Nut Material: Synthetic Melamine Bone

Scale: 25.5”

Radius: 9.5"

#Frets: 21

Fretwire: 6130 Medium Jumbo

Trussrod: Headstock-Adjust, Single Action Rod

HARDWARE

Bridge: Vintage 3-Saddle String-Thru

Bridge Markings: "FENDER Pat.Pend"

Saddles: Brass Barrel Saddles

Tuners: Standard Fender Die-Cast Sealed Tuners

String Tree: Butterfly

Knobs: Knurled Flat-Top

Neckplate: 4-Bolt Blank Plate

Control Plate: Standard Chrome Reversed

Strap Buttons: Standard Vintage Style

ELECTRONICS

Switch: 3-Way / Barrel Switch Tip

Wiring: Standard Modern Wiring (N/NB/B)

Pots:

• CTS 250k Master Volume Solid Shaft

• CTS 250k Master Tone Solid Shaft

Pickup Config: SS

Neck Pickup: Standard Single-Coil Tele (8.5k)

Bridge Pickup: Standard Single-Coil Tele (10.5k)

ACCESSORIES

BAG: Deluxe Gigbag Included

INFO

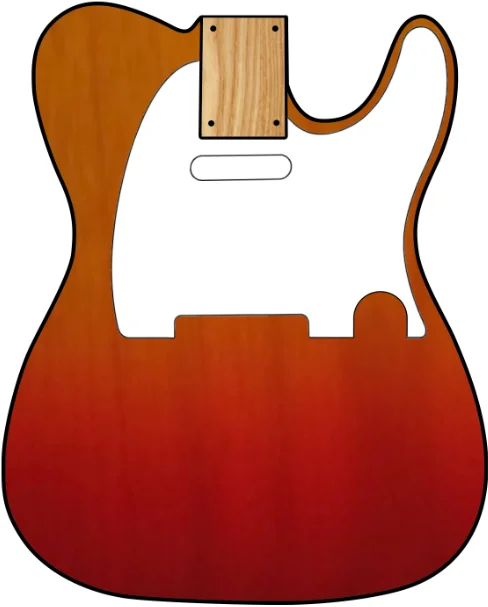

Although it is labeled as a FSR, the Special Edition Deluxe Ash Telecaster was made in various short runs over nearly a decade. A Cherry Sunburst finish was added in 2017.
