CBS USA STRATOCASTERS
Standard Line CBS (1983-1984)
Model# 10-1100 (Rosewood Neck)
Model# 10-1102 (Maple Neck)
Model# 10-1122 (Left handed Model)
BODY
Wood: Alder
Lacquer: Polyurethane
Shape: Standard Stratocaster
Pickguard: 1-Ply Various
Pickup Routing: SSS
Serial: Headstock Front Decal / E+6-digits
NECK
Wood: Maple
Fretboard: Maple or Rosewood
Fret Markers: White (RW) / Black Dots (Maple)
Neck Finish: Polyurethane
Neck Profile: Thin “C”
Neck Depht .790 - .860
Headstock: Standard Small
Nut Width: 1.700 (43.7 mm +/-)
Nut Material: Bone
Scale: 25.5"
Radius: 12”
#Frets: 21
Fretwire: 6100 Jumbo
Trussrod: Bi-Flex Headstock Adjust
MicroTilt: No
Neck Stamp: Date Ex “01 Jan 1984”
HARDWARE
Bridge: Schaller System II Free Flyte Tremolo
Saddle: Free Flyte System II Saddles
Block: None
Trem Arm: Pop-In Propriretary
Tuners: Fender / Schaller Sealed Die Cast Tuners
String Tree: 2 x Butterfly
Knobs: Standard White
Neckplate: 4-Bolt
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way CRL / White Tip
Wiring: Standard Selection (N/NM/M/MB/B)
Pots: 2 Pots
Capacitor: Orange Drop 022uf
Pickup Config: SSS
Neck Pickup: 016730 Plastic Bobbins Single Coils (5.8k)
Middle Pickup: 016730 Plastic Bobbins Single Coils (5.8k)
Bridge Pickup: 016730 Plastic Bobbins Single Coils (5.9k)
CASE: Hardshell Case, Black lining
Colors:
STANDARD:
Black (506)
Brown Sunburst (532)
Sienna Sunburst (531)

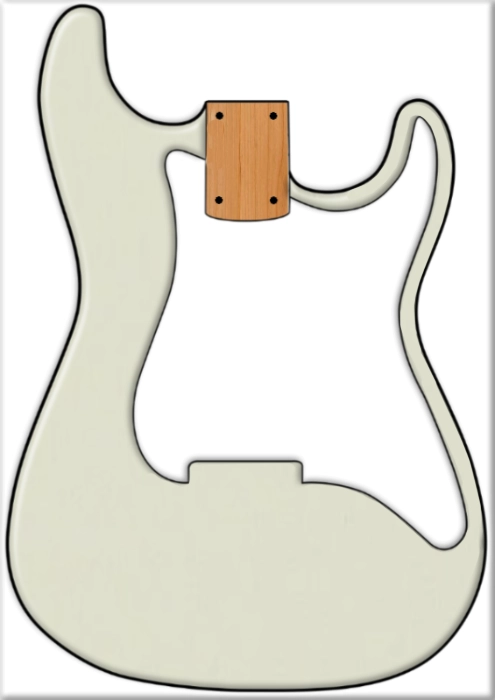

Ivory (549)
CUSTOM:

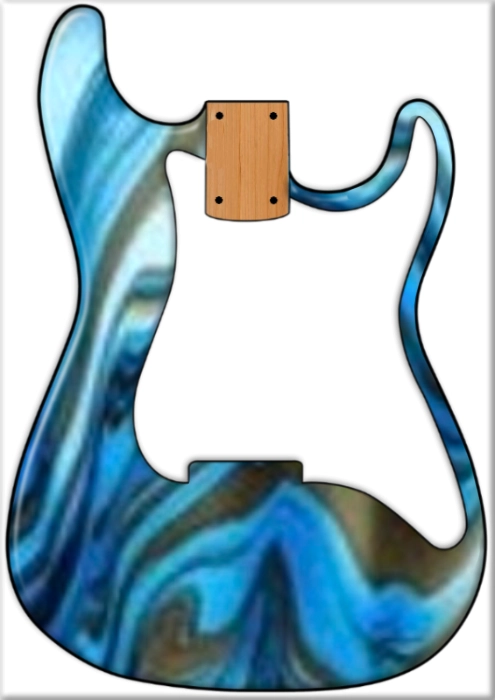

Swirl (Various Colors) (1984) 250 Made
BRIDGE UPGRADE INFORMATION
FREEFLYTE SYSTEM II
These bridges are proprietary to this body. Meaning, no other bridge
will fit unless routing out the wood or modifying the body is done
which will devalue this guitar.
The Freeflyte System II bridge or parts can only be found s
econd hand today. and can be quite expensive
INFO:
Second edition of the Dan Smith Strats took a more drastic but also slightly cost-reducing approach by ditching the 2nd Tone control and instead move the jack port in its place.
Marble finish done by Darren Johansen
