USA STRATOCASTERS
American Vintage Series (7/1998 -2012)
Colors:
Original Specs for the bridge on this guitar is:
American Vintage Spacing
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2-7/32 (56.4mm)
Saddles: 11.2mm
These will fit this guitar: (Vintage String Spacing)
FENDER ORIGINAL: 099-2049-000 / 009-4247-049
CALLAHAM: Vintage S Bridge
KLUSON: KVTS / KVTSLH (Left handed)
ABM: 5050
GOTOH: GE101T (And Many More)
BRIDGE UPGRADE INFORMATION
..Also compatible are the modern bridges:
Vintage/Narrow bridge
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2/1-16 (56.4mm)
Saddles: 10.4mm
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
3 Tone Sunburst (800)
Olympic White (805)
Black (806) (1998-2009)
Fiesta Red (840) (1998-2000)
Candy Apple Red (809) (1998-2000)

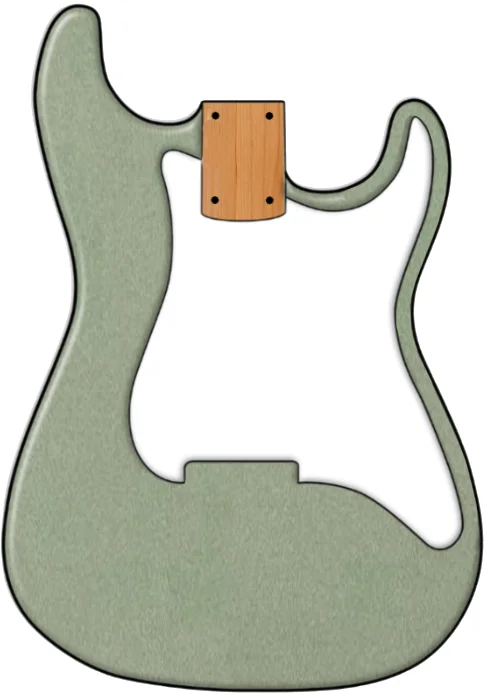

Sherwood Green Metallic (846) (1998-2000)
Inca Silver (824) (2001-2002)
Dakota Red (854) (2001-2002)
Ice Blue Metallic (883) (2001-2009)
Ocean Turquoise (808) (2002-2009)
Surf Green (857) (2002-2009)
FSR:
Tropcal Turquoise (857) (2011) (LE-Serial) 250 Made
Left Handed Versions:
2-Tone Sunburst (803), Black (806), White Blonde (801), Candy Apple Red (809)
(Some Available for limited time only)
Model# 010-0100-XXX (Rosewood)

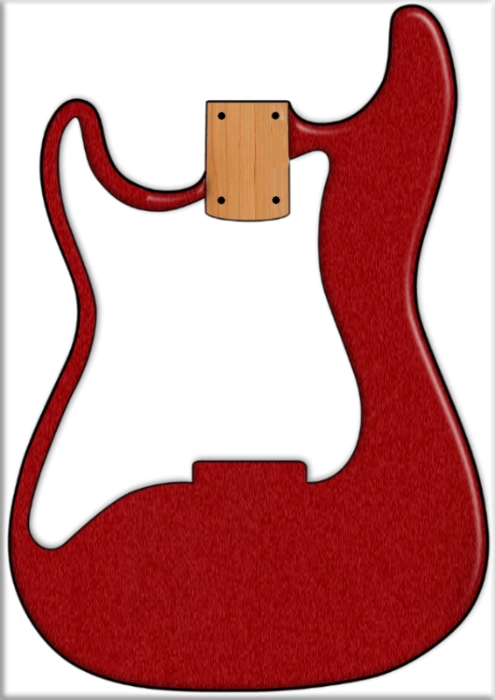

Model# 010-0120-XXX (Rosewood, Left Handed)
BODY
Wood: Alder
Lacquer: Nitrocellulose
Shape: Standard Stratocaster
Contours: 60’s Contours
Pickguard: 3-Ply Mint Green 11-hole
Pickup Routing: SSS
Serial: Neckplate | V+6 digit
NECK
Wood: Maple
Fretboard: Rosewood
Fret Markers: Ivory Dots
Neck Finish: Gloss Nitrocellulose
Neck Profile: “C”-Shape
Neck Depht .850” - .920”
Headstock: Classic Style Small
Nut Width: 1.650” (42.0 mm)
Nut Material: Synthetic Bone
Scale: 25.5"
Radius: 7.25”
#Frets: 21
Fretwire: 6230 Vintage Frets
Trussrod: Single Action Heel Adjust
MicroTilt: No
Contoured Heel: No
Neck Stamp: Penciled Date
HARDWARE
Bridge: American Vintage 6-Screw Synchronized Tremolo
• Mount Spacing: 2-7/32 (56.4mm)
• String Spacing: 2–7/32 (56.4mm)
Block: Milled Steel
Trem Arm: 10-32 w/Tip
Tuners: Kluson Vintage Stye Split-Shaft
String Tree: Butterfly
Knobs: Standard Aged White Knobs
Neckplate: 4-Bolt Blank Plate + Serial
Strap Buttons: Standard
ELECTRONICS
Switch: 3-Way CRL / Std. Tip
Wiring: Standard Modern (N/M/B)
Pots: 3 Pots
Neck Pickup: Original ’57/’62 Single Coil
Middle Pickup: Original ’57/’62 Single Coil
Bridge Pickup: Original ’57/’62 Single Coil
RWRP: No
CASE: Vintage Style Tweed Case or Deluxe Hardshell Case (2000-)
STRINGS .010-.046 Nickel Plated Steel
INFO:
5-Way switch is included in case + Ashtray Cover
Wiring Diagram
Bridge Info
Service Manual
DECAL:
