USA STRATOCASTERS
American Deluxe Series (2004-2010)
Colors:
Aged Cherry Burst (731)

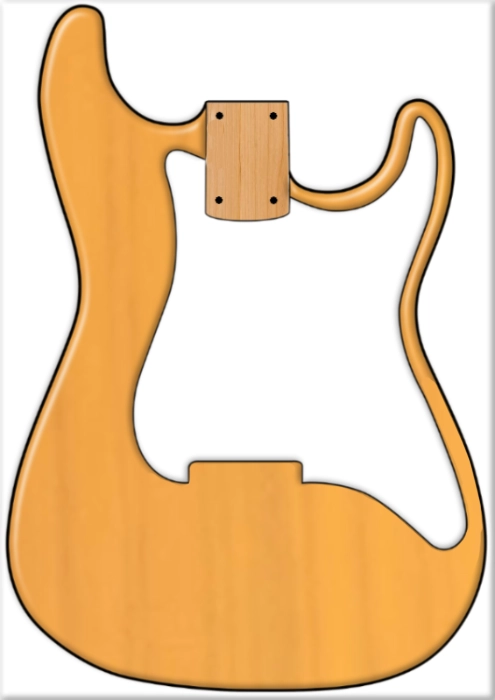

Butterscotch Blonde (750)
Tobacco Sunburst (752)
All colors also for Left-Handed
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Model # 010-1400-XXX (Rosewood)
Model # 010-1402-XXX (Maple)
Model# 010-1420-XXX (Rosewood) Left Handed
Model# 010-1422-XXX (Maple) Left Handed
BODY
Wood: Premium Ash
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Modern Contours
Pickguard: Various 11-hole:
• Aged Cherry Burst: 4-Ply White Pearloid / Aged White Knobs
• Butterscotch Blonde: 3-Ply Black / Black Knobs
• Tobacco Sunburst: 3.Ply Mint Green / Aged White Knobs
Pickup Routing: HSH
Serial: Rear Headstock | DZ+7 Digit + “Made In U.S.A”
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Abalone Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .830” - .870”
Headstock: Classic Style Small
Nut Width: 1.685” (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5”
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: No
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point Deluxe Synchronized Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Cold Rolled Steel
Trem Arm: Pop-In / No-Tip
Tuners: Schaller/Fender Deluxe Locking Tuners, Staggered
String Tree: Ezy-Glyde
Knobs: Standard Aged White Knobs
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way Oak Grigsby Super Switch w/ Std Tip
Wiring: Custom Wiring (Standard with S-1 Off)
S-Switch Engaged (Down):
• Pos.1: Neck + Middle (Series)
• Pos.2: Neck (Paralell) + 0.5uf Cap + Middle (series)
• Pos.3: Bridge + Neck (parallel) + Middle (Series)
• Pos.4: Bridge + Middle (Series) + 0.5uf Cap
• Pos.5: Bridge + Middle (Series)
Pots: 3 Pots
AUX: S1-Switch Activated Series / Parallell mode
Capacitor .022uf
Pickup Config: SSS
Neck Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Middle Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (6.6k)
Bridge Pickup: Samarium Cobalt Noiseless (SCN) Single-Coil (7.1k)
CASE: Standard Molded Case
STRINGS: Nickel Plated Steel .009-.042
Wiring Diagram
Bridge Info
Service Manual
DECAL:
