 Model# 010-1570-XXX (Rosewood)

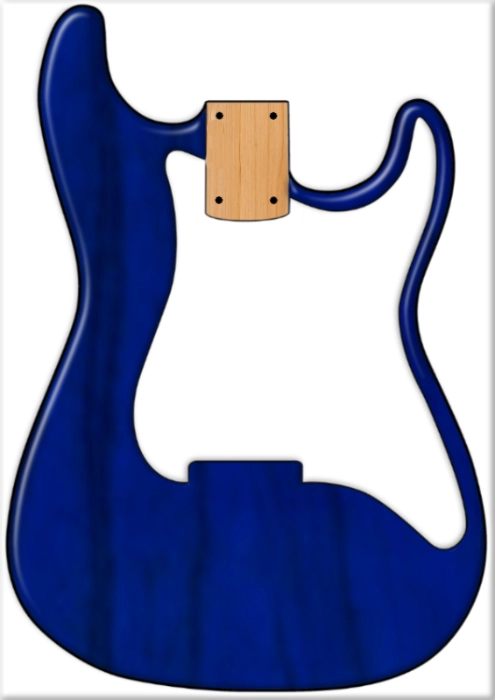

BODY

Wood: Select Alder w/ Flame or Quilt  Maple Top

Lacquer: Polyurethane

Shape: Standard Stratocaster

Contours: Modern Contours

Pickguard: None

Pickup Routing: HSS

Serial: Rear Headstock | DZ+7 Digit + “Made In U.S.A”

NECK

Wood: Maple

Fretboard: Ebony

Fret Markers: Abalone Dots

Neck Finish: Satin Urethane

Neck Profile: Modern “C”

Neck Depht .830” - .870”

Headstock: Classic Style Small

Nut Width: 1.685” (42.8 mm)

Nut Material: LSR Roller Nut

Scale: 25.5"

Radius: 9.5”

#Frets: 22

Fretwire: 6130 Medium Jumbo (.046-.103)

Trussrod: Bi-Flex Headstock Ajust

MicroTilt: Yes

Contoured Heel: No

Neck Stamp: Stamped Date

HARDWARE

Bridge: 2-Point Deluxe Tremolo (010-1500/1502)

Bridge: Floy Rose Mini Locking (010-1590/1592)

• Mount Spacing: 2–7/32 (56.4mm)

• String Spacing: 2–1/16 (52.4mm)

Block: Cold Rolled Steel

Trem Arm: Pop-In / No-Tip

Tuners: Schaller/Fender Deluxe Locking Tuners, Staggered

String Tree: None

Knobs: Black Anodized Steel Mini Barrels

Neckplate: 4-Bolt  “Fender Corona California”

Strap Buttons: Schaller Strap Lock

ELECTRONICS

Switch: 5-Way O.G. Double Wafer Super Switch / Std Tip

Wiring: Custom Wiring (Standard N/NM/M/MB/B with S-1 Off)

S-Switch Engaged (Down):

•  Pos.1: Neck + Middle (in Series)

•  Pos.2: Neck + Middle (in Series) + (Bridge Inner Coil (Parallel)

•  Pos.3: Neck + Middle  + (Humbucker (in Series)

•  Pos.4: Middle  + Humbucker (in Series)

•  Pos.5: Humbucker (in Series)

Pots: 3 Pots

 • 1 x CTS  250k Master Volume S-1 Switch

 • 1x CTS 250k Tone Control  (Neck)

 • 1x CTS 250k Tone Control (Middle + Bridge)

AUX: S1-Switch Activate Series / Parallell modes

Capacitor .022uf

Pickup Config: HSS

Neck Pickup: Hot Samarium Cobalt Noiseless (SCN) Single-Coil (10.3k)

Middle Pickup: Hot Samarium Cobalt Noiseless (SCN) Single-Coil (10.3k)

Bridge Pickup: Fender DH-1 Humbucker (14.8k)

CASE: Standard Molded

STRINGS: Nickel Plated Steel .009-.042
