USA STRATOCASTERS
Eric Johnson Signature Stratocaster
Artist Signature Series (January 2005-Today)
Colors:
MAPLE NECK:
2-Tone Sunburst (803)
White Blonde (801)
Candy Apple Red (809) (2005-2013)
Black (806) (2005-2023)
ROSEWOOD NECK (2009-)
Dakota Red (854) (2009-2013)

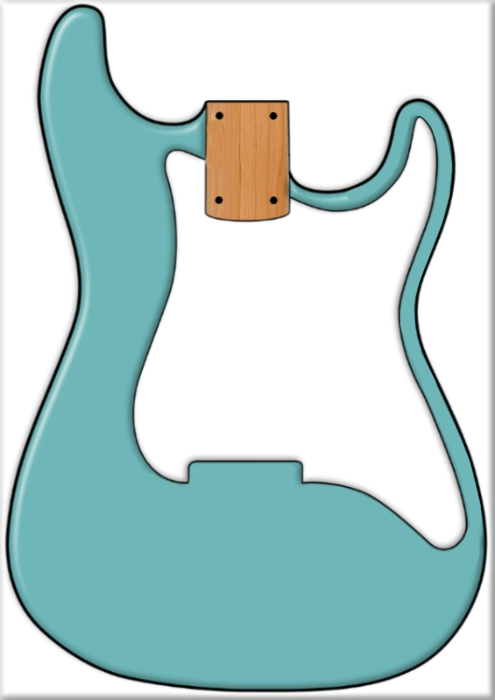

Tropical Tuquoise (987) (2023-2024)

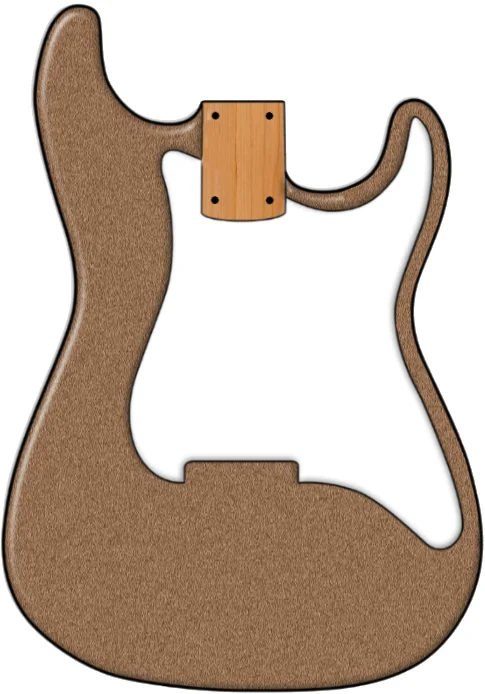

Medium Palomino Metallic (898) (2009-2013)
Lucerne Aqua Firemist (899) (2009-2022)
INFO:
Eric Johnsons signature is one of Fender’s best selling signature in recent times. With a vintage equipped guitar with more modern feel fretboard of 12” radius proved to be a winning combo for Fender. This model has more grown to be a “Players´s Signature” than just to Johnson himself.
- Serial starts at EJ00000
- Rosewood Necks came on market in 2009.
- Pickup are sold retail on its own
- Ashtray Cover is supplied in case
- The Tremolo is a close spec American Vintage, but the blocks is shallowed drilled for strings. This bridge is NOT sold retail
- Not supplied with, or drilled for to equip tremolo cover.
Model# 011-7702-XXX (Maple)
Model# 011-7700-XXX (Rosewood) (2009-Today)
BODY
Wood: Lightweight 2-Piece Alder
Lacquer: Gloss Nitrocellulose
Shape: Standard Stratocaster
Contours: Deep ’57 Contours
Pickup Routing: SSS
Serial: Neckplate EJ+5 digits
NECK
Wood: Quartersawn Maple
Fretboard: Maple (No Binding) or Rosewood (w/ Binding)
Fret Markers: Black or White Dots
Neck Finish: Gloss Nitrocellulose Aged Tint
Neck Profile: ’57 Soft “V”
Neck Depht .850”-.930”
Headstock: Standard Small, Smooth ’54 Contoured
Nut Width: 1.650” (42mm)
Nut Material: Bone
Scale: 25.5"
Radius: 12”
#Frets: 21
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Single Action Heel Adjust
Contured Heel: No
MicroTilt: No
Neck Markings: Stamped Date at Heel
HARDWARE
Bridge: 6-Screw American Vintage Synchronized Tremolo
• Mount Spacing: 2-7/32 (56.4mm)
• String Spacing: 2–7/32 (56.4mm)
Saddle: Bent Steel Nickel Saddles “FENDER”
Block: Custom Steel Block, Shallow Drilled String Holes “EJ”
Trem Arm: 10-32 w/Tip
Tuners: Gotoh SD91 Vintage Split-Shaft Staggered (No-Line)
String Tree: None
Neckplate: 4-Bolt Custom “EJ” + Kokopelli Artwork Plate + Serial
Strap Buttons: Standard
PLASTIC HARDWARE
Pickguard: 3-Ply Parchment, 11-hole
Rear Cover: None (Not Drilled For)
Knobs: Aged White, Fender Standard Plastic
PU Covers: Aged White, Standard Plastic
Trem-Bar & Switch Tip: Aged White
ELECTRONICS
Switch: 5-Way Grigsby Blade / Std. Tip
Wiring: Modified VIntage Wiring (N/NM/M/MB/B)
- P1 Neck
- P2 Neck+ Middle
- P3 Middle (No Tone - Direct Out)
- P4 Middle Bridge
- P5 Bridge
Pots: 3 Pots
- 1x CTS 250k Master Volume
- 1x CTS 250k Tone (Neck)
- 1x CTS 250k Tone (Bridge)
Capacitor .1 uf Dime Capacitor
Pickup Config: SSS
Neck Pickup: Eric Johnson Signature Custom Voiced
Middle Pickup: Eric Johnson Signature Custom Voiced
Bridge Pickup: Eric Johnson Signature Custom Voiced
ACCESSORIES & INFO
CASE: Deluxe Blonde Hardshell with Black Ends (Black Interior)
STRINGS .010-.046 Nickel Plated Steel
Wiring Diagram
Bridge Info
Service Manual
DECAL:
