USA STRATOCASTERS
American Deluxe Series (2010-2014)
Replaces: American Deluxe HSS (Version 2)
Colors:
3 Tone Sunburst (700)
Amber (720) (2011-2014)
Olympic Pearl (723)

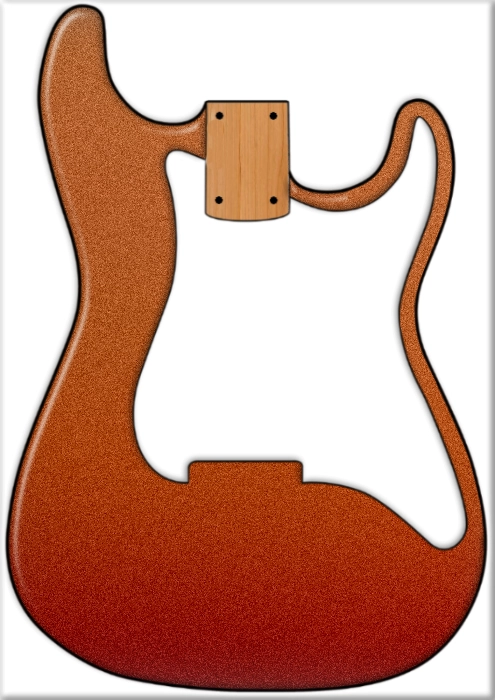

Sunset Metallic (770)
Burgundy Mist Metallic (766) (2014-)
BRIDGE UPGRADE INFORMATION
Original Specs for the bridge on this guitar is:
Modern 2-Point Spacing
Mount Spacing: 2-7/32 (2.2”) (56.2mm)
String Spacing: 2-1/16 (52.2mm)
Saddles: 10.4mm
For 2-Point spacing. The higher end bridges out there are universal fit. You can change around any 2-point bridge from Fender. If you require the original bridge to be replaced, please check the spec sheet for this guitar.
American Series (Used on American Standard 1987-2007)
American Standard (Used on American Standard 2008-Today)
Deluxe Series | | American Deluxe
Other popular choices are Gotoh SD510 Series
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Model# 011-9100-XXX (Rosewood)
Model# 011-9102-XXX (Maple)
BODY
Wood: Select Alder
Lacquer: Polyurethane
Shape: Standard Stratocaster
Contours: Modern USA Contours
Pickguard: Various 11-hole:
• 3-Ply Mint Green Aged White Knobs: 700, 770, 766
• 4-Ply Brown Shell / Aged White Knobs 720
• 4-Ply Tortoise Shell / Aged White Knobs 723
Pickup Routing: HSH
Serial: Rear Headstock | US+8 Digit
NECK
Wood: Maple
Fretboard: Maple or Rosewood w/ Rolled Edges
Fret Markers: Pearloid Dots
Neck Finish: Satin Urethane
Neck Profile: Modern “C”
Neck Depht .850”-.880”
Headstock: Standard Small
Nut Width: 1.685” (42.8 mm)
Nut Material: LSR Roller Nut
Scale: 25.5"
Radius: 9.5” - 14” Compound
#Frets: 22
Fretwire: 6130 Medium Jumbo (.046-.103)
Trussrod: Bi-Flex Headstock Ajust
MicroTilt: Yes
Contoured Heel: Yes
Neck Stamp: Stamped Date
HARDWARE
Bridge: 2-Point Deluxe Tremolo
• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)
Block: Tapered, Cold Rolled Steel
Trem Arm: Pop-In / Tip-less
Tuners: Schaller/Fender Deluxe Staggered Locking
String Tree: Ezy-Glyde
Knobs: Standard Aged White Knobs
Neckplate: 4-Bolt “Fender Corona California” Stamp
Strap Buttons: Schaller Strap Lock
ELECTRONICS
Switch: 5-Way ,4-Pole Descrete Switch
Wiring: Custom Wiring (Standard with S-1 Off)
S-Switch Engaged (Down):
• Pos.1: Neck + Middle In Series (T1)
• Pos.2: Neck + Middle In Series w/ 1uf Cap (on neck) (T1/T2)
• Pos.3: Neck in Series + Middle & Bridge in Parallel) (T2)
• Pos.4: Middle + Bridge (Series w/ 1.uf Cap on bridge) (T2)
• Pos.5: All Pickups (Series) (T2)
Pots: 3 Pots
• 1 x CTS 250k Master Volume S-1 Switch
• 1x CTS 250k Tone Control (Neck)
• 1x CTS 250k No-Load Tone Control (Middle + Bridge)
AUX 1: S1-Switch Activated Series / Parallell / OOP mode
AUX 2: DPDT PP (Activates a Bypass for HB direct to output)
Capacitor: 0.22uf (T1+T2)
Pickup Config: HSS
Neck Pickup: Fender Noiseless N3 Single Coil
Middle Pickup: Fender Noiseless N3 Single Coil
Bridge Pickup: Fender Atomic Humbucker
CASE: Hardshell Case
