American Vintage ’59 Stratocaster

 Model# 011-1600-XXX (Rosewood)

 Model# 011-1602-803 (Maple)

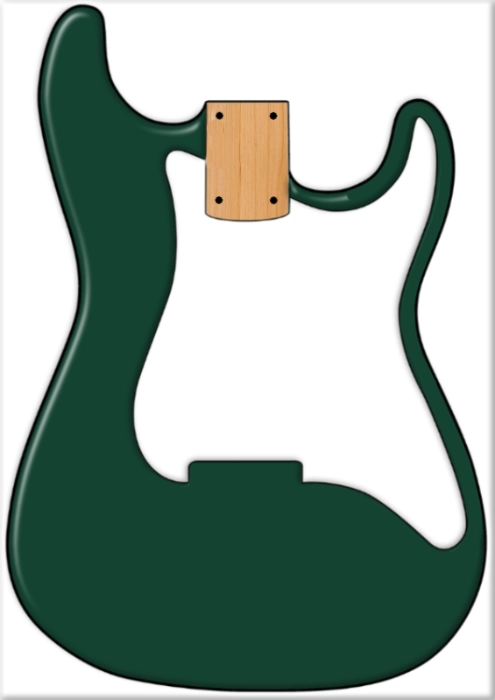

BODY

Wood: Alder

Lacquer: Gloss Nitrocellulose Flash Coat

Shape: Standard Stratocaster

Contours: ’50s Deep Contours

Pickup Routing: SSS

Serial: Neckplate | V+7 digits

NECK

Wood: Flat Sawn Maple

Fretboard: Slab Rosewood

Fret Markers: Aged White Dots

Neck Finish: Flash Coat Nitrocellulose

Neck Profile: “D” Shape

Neck Depht .820” - .950”

Headstock: Standard Small

Nut Width: 1.650” (42mm)

Nut Material: Bone

Scale: 25.5"

Radius: 7.25”

#Frets: 21

Fretwire: 6230 Vintage Frets (.045 -.083)

Trussrod: Single Action, Heel Adjust

MicroTilt: No

Contoured Heel: No

HARDWARE

Bridge: 6-Screw American Vintage Synchronised Tremolo

• Mount Spacing: 2-7/32 (56.4mm)

• String Spacing: 2–7/32 (56.4mm)

Saddles: Nickel Plated Bent Steel “FENDER Pat.Pend”

Block: Steel Block

Trem Arm: 10-32 w/ Tip

Tuners: Vintage Kluson Style Split Shaft (Single Line)

String Tree: Butterfly

Neckplate: 4-Bolt Blank + Serial

Strap Buttons: Standard

PLASTIC HARDWARE

Pickguard:

• 1-Ply White 8-Hole (803)
• 3-Ply Wide Bevel Mint Green 10-Hole (806) (872)

Rear Cover: 1-Ply White, Elongated Holes

Knobs: Aged White, Fender Standard Plastic

PU Covers: Aged White, Standard Plastic

Trem-Bar & Switch Tip: Aged White

ELECTRONICS

Switch: 5-Way CRL Blade / Std. Tip

Wiring: Vintage Standard  (N/NM/M/MB/B)

Pots: 3 Pots

 • 1x CTS 250k Master Volume

 • 1x CTS 250k Tone Control (Neck)

 • 1x CTS 250k Tone Control (Middle + Bridge)

Capacitor: Fender .1mfd Phonebook

Pickup Config: SSS

Neck Pickup: Pure Vintage ’59 Single Coil (5.7k)

Middle Pickup: Pure Vintage ’59 Single Coil (5.7k)

Bridge Pickup: Pure Vintage ’59 Single Coil (6.3k)

ACCESSORIES & INFO

CASE: Deluxe Vintage Brown Tolex Case w/ Orange Lining

STRINGS: Nickel Plated Steel .010-.046

INFO:

Comes supplied with Tremolo Ashtray cover

the first 46 guitars made got a special commemorative neckplate 1/46.
