USA STRATOCASTERS
American Vintage Series (2022-Today)
Left Handed Versions:

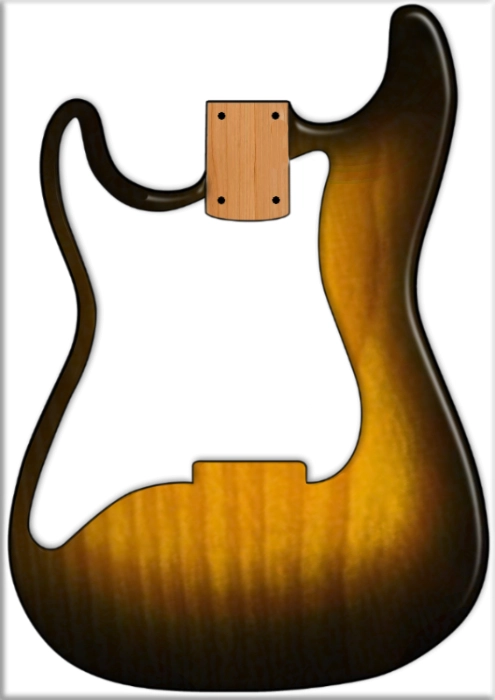

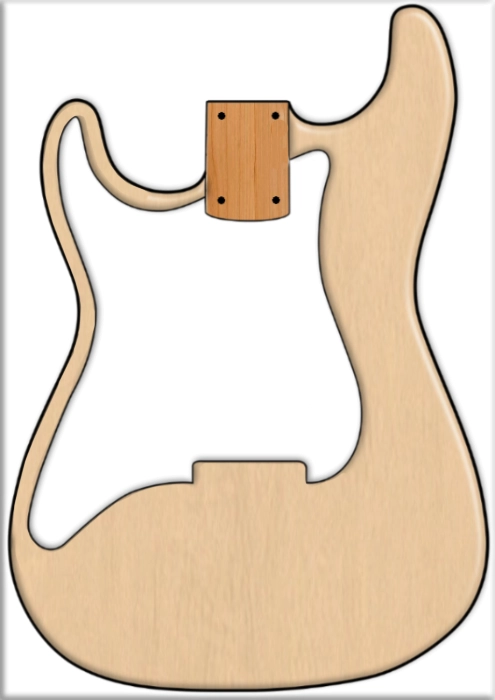

2-Tone Sunburst (803), Vintage Blonde (807)
Colors:
2-Tone Sunburst (803)
Vintage Blonde (807)
Seafoam Green (849)
Black (806) (3/2025-)
Model# 011–0232-XXX (Maple)
Model# 011–0242-XXX (Maple Left-Handed) (803, 807)
BODY
Wood: Alder or Ash (807)
Lacquer: Gloss Nitrocellulose
Shape: Standard Stratocaster
Contours: Deep ’50s Contours
Pickguard: 1-Ply Parchment, 8-Hole
Pickup Routing: SSS
Serial: Neckplate | V + 7 digits
NECK
Wood: Flatsawn Maple
Fretboard: Maple
Fret Markers: Black Dot
Neck Finish: Satin Nitrocellulose (Tinted)
Neck Profile: ’57 “Soft-V”
Neck Depht .875”–.985”
Headstock: Standard Classic | Gloss Nitrocellulose
Nut Width: 1.650” (42.0 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 7.25”
#Frets: 21
Fretwire: Vintage Tall (.045-.083)
Trussrod: Single Action Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Pure Vintage 6-Screw Synchronized Tremolo
• Mount Spacing: 2-7/32 (56.4mm)
• String Spacing: 2–7/32 (56.4mm)
Block: Pure Vintage Powder Coated Steel Block
Saddles: Nickel Plated Bent Steel “FENDER”
Trem Arm: 10-32 w/ Std Tip
Tuners: Pure Vintage Kluson Style (Single Line) Gotoh
String Tree: Butterfly
Plastic HW: Standard Aged White Plastic
Neckplate: 4-Bolt Blank + Serial
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way CRL / Std. Tip
Wiring: Standard Vintage (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck+Middle)
• 1 x CTS 250k Tone Control (Bridge)
Capacitor .1uf Phonebook (T1+T2)
Treble Bleed: None
Pickup Config: SSS
Neck Pickup: Fender Pure Vintage ’57 SC (Alnico 5, Beveled)
Middle Pickup: Fender Pure Vintage ’57 SC (Alnico 5, Beveled)
Bridge Pickup: Fender Pure Vintage ’57 SC (Alnico 5, Beveled)
RWRP: No
CASE: Vintage Tweed w/ Crushed Red Interior
STRINGS .010 -.046 Nickel Plated Steel
NOTE:
Pickups are also sold retail
LIMITED EDITIONS
Colors:
Original Specs for the bridge on this guitar is:
American Vintage Spacing
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2-7/32 (56.4mm)
Saddles: 11.2mm
These will fit this guitar: (Vintage String Spacing)
FENDER ORIGINAL: 099-2049-000 / 009-4247-049
CALLAHAM: Vintage S Bridge
KLUSON: KVTS / KVTSLH (Left handed)
ABM: 5050
GOTOH: GE101T (And Many More)
BRIDGE UPGRADE INFORMATION
..Also compatible are the modern bridges:
Vintage/Narrow bridge
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2/1-16 (56.4mm)
Saddles: 10.4mm
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
White Blonde (801) (Mary Kaye Blonde) (Late 2025) Dealer Exclusive
Model #: 011–0232-801 (Maple)
BODY
Wood: Ash
Lacquer: Gloss Nitrocellulose
Shape: Standard Stratocaster
Contours: Deep ’50s Contours
Pickguard: 1-Ply Parchment, 8-Hole
Pickup Routing: SSS
Serial: Neckplate | V + 7 digits
NECK
Wood: Flatsawn 3A Flame Maple
Fretboard: Maple
Fret Markers: Black Dot
Neck Finish: Satin Nitrocellulose (Tinted)
Neck Profile: ’57 “Soft-V”
Neck Depht .875” - .985”
Headstock: Standard Classic | Gloss Nitrocellulose
Nut Width: 1.650 (42.0 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 7.25”
#Frets: 21
Fretwire: Vintage Tall (.045-.083)
Trussrod: Single Action Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE (GOLD)
Bridge: Pure Vintage 6-Screw Synchronized Tremolo
• Mount Spacing: 2-7/32 (56.4mm)
• String Spacing: 2–7/32 (56.4mm)
Block: Pure Vintage Powder Coated Steel Block
Saddles: Gold Plated Bent Steel “FENDER”
Trem Arm: 10-32 w/ Tip
Tuners: Pure Vintage Kluson Style (Single Line) Gotoh
String Tree: Butterfly
Plastic HW: Standard Aged White Plastic
Neckplate: 4-Bolt Blank + Serial
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way CRL / Std. Tip
Wiring: Standard Vintage (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck+Middle)
• 1 x CTS 250k Tone Control (Bridge)
Capacitor .1uf Phonebook (T1+T2)
Treble Bleed: None
Pickup Config: SSS
Neck Pickup: Custom Shop Fat ‘60s Single Coil (Alnico 2, Beveled)
Middle Pickup: Custom Shop Fat ‘60s Single Coil (Alnico 2, Beveled)
Bridge Pickup: Custom Shop Fat ‘60s Single Coil (Alnico 2, Beveled)
RWRP: Yes
CASE: Vintage Tweed w/ Crushed Red Interior
STRINGS .010 -.046 Nickel Plated Steel
