USA STRATOCASTERS
American Vintage Series (2022-Today)
Colors:
3-Tone Sunburst (800)
Olympic White (805)
Fiesta Red (840)

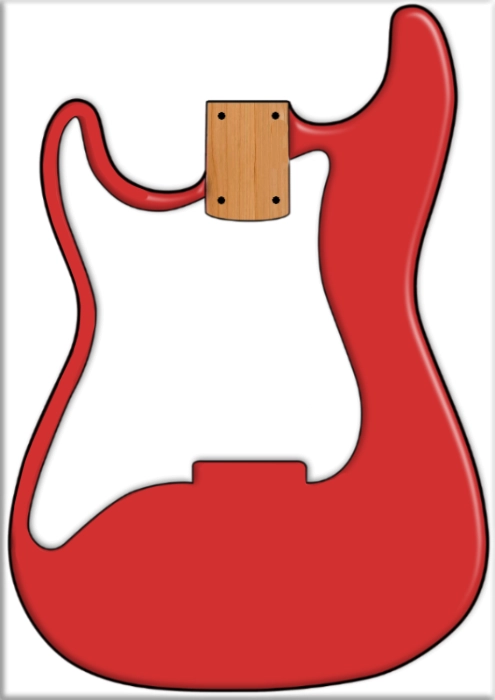

Left Handed Versions:
Olympic White (805), Fiesta Red (840)
Model# 011–0250-XXX (Rosewood)
Model# 011–0260-XXX (Rosewood, Left-Handed) (805, 840)
BODY
Wood: Alder
Lacquer: Gloss Nitrocellulose
Shape: Standard Stratocaster
Contours: Deep ’60s Contours
Pickguard: 3-Ply Mint Green, 11-Hole
Pickup Routing: SSS
Serial: Neckplate | V + 7 digits
NECK
Wood: Flatsawn Maple
Fretboard: Slab Rosewood
Fret Markers: Aged Clay Dots (Micarta)
Neck Finish: Gloss Nitrocellulose (Tinted)
Neck Profile: 1961 “C”
Neck Depht .810” - .930”
Headstock: Standard Classic | Gloss Nitrocellulose
Nut Width: 1.650 (42.0 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 7.25”
#Frets: 21
Fretwire: Vintage Tall (.045-.083)
Trussrod: Single Action Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Pure Vintage 6-Screw Synchronized Tremolo
• Mount Spacing: 2-7/32 (56.4mm)
• String Spacing: 2–7/32 (56.4mm)
Block: Pure Vintage Powder Coated Steel Block
Saddles: Nickel Plated Bent Steel “FENDER”
Trem Arm: 10-32 w/ Aged White Tip
Tuners: Pure Vintage Kluson Style (Single Line) Gotoh
String Tree: Butterfly
Plastic HW: Standard Aged White Plastic
Neckplate: 4-Bolt Blank + Serial
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way CRL / Std. Tip
Wiring: Standard Vintage (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck+Middle)
• 1 x CTS 250k Tone Control (Bridge)
Capacitor .1uf Ceramic Dime (T1+T2)
Treble Bleed: None
Pickup Config: SSS
Neck Pickup: Fender Pure Vintage ’61 SC (Alnico 5, Beveled)
Middle Pickup: Fender Pure Vintage ’61 SC (Alnico 5, Beveled)
Bridge Pickup: Fender Pure Vintage ’61 SC (Alnico 5, Beveled)
RWRP: No
CASE: Vintage Style Brown Hardshell w/ Orange Interior
STRINGS .010 -.046 Nickel Plated Steel
LIMITED EDITIONS
Colors:
Fiesta Red (840) (Late 2025) Dealer Exclusive
Black (806) w/ Gold Hardware, Andertons UK Exclusive (Late 2025)
Original Specs for the bridge on this guitar is:
American Vintage Spacing
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2-7/32 (56.4mm)
Saddles: 11.2mm
These will fit this guitar: (Vintage String Spacing)
FENDER ORIGINAL: 099-2049-000 / 009-4247-049
CALLAHAM: Vintage S Bridge
KLUSON: KVTS / KVTSLH (Left handed)
ABM: 5050
GOTOH: GE101T (And Many More)
BRIDGE UPGRADE INFORMATION
..Also compatible are the modern bridges:
Vintage/Narrow bridge
Mount Spacing: 2-7/32 (56.4mm)
String Spacing: 2/1-16 (56.4mm)
Saddles: 10.4mm
There are more bridges from other brands that will fit.
If you are uncertain if they will fit this guitar, send me a message for assistance
Model# 011–0250-840 (Rosewood)
BODY
Wood: Alder
Lacquer: Gloss Nitrocellulose
Shape: Standard Stratocaster
Contours: Deep ‘60s Contours
Pickguard: 3-Ply Mint Green, 11-Hole
Pickup Routing: SSS
Serial: Neckplate | V + 7 digits
NECK
Wood: Flatsawn 3A Flame Maple
Fretboard: Slab Rosewood
Fret Markers: Aged Clay Dots (Micarta)
Neck Finish: Gloss Nitrocellulose (Tinted)
Neck Profile: 1961 “C”
Neck Depht .810”–.930”
Headstock: Classic Style Small | Gloss Nitrocellulose
Nut Width: 1.650” (42.0 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 7.25”
#Frets: 21
Fretwire: Vintage Tall (.045-.083)
Trussrod: Single Action Heel Adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Pure Vintage 6-Screw Synchronized Tremolo
Block: Pure Vintage Powder Coated Steel Block
Saddles: Nickel Plated Bent Steel “FENDER”
Trem Arm: 10-32 w/ Tip
Tuners: Pure Vintage Kluson Style (Single Line) Gotoh
String Tree: Butterfly
Plastic HW: Standard Aged White Plastic
Neckplate: 4-Bolt Blank + Serial
Strap Buttons: Standard
ELECTRONICS
Switch: 5-Way CRL / Std. Tip
Wiring: Standard Vintage (N/NM/M/MB/B)
Pots: 3 Pots
• 1 x CTS 250k Master Volume
• 1 x CTS 250k Tone Control (Neck+Middle)
• 1 x CTS 250k Tone Control (Bridge)
Capacitor .1uf Ceramic Dime (T1+T2)
Treble Bleed: None
Pickup Config: SSS
Neck Pickup: Custom Shop Fat ‘60s Single Coil (Alnico 2, Beveled)
Middle Pickup: Custom Shop Fat ‘60s Single Coil (Alnico 2, Beveled)
Bridge Pickup: Custom Shop Fat ‘60s Single Coil (Alnico 2, Beveled)
RWRP: No
CASE: Vintage Style Brown Hardshell w/ Orange Interior
STRINGS .010 -.046 Nickel Plated Steel
NOTE: Exactly same specs as the standard issue, except it comes with a Flame Neck and CS Fat ‘60s Pickups.
Wiring Diagram
Bridge Info
Service Manual
DECAL:
