Model# 017-1010-XXX (Rosewood)

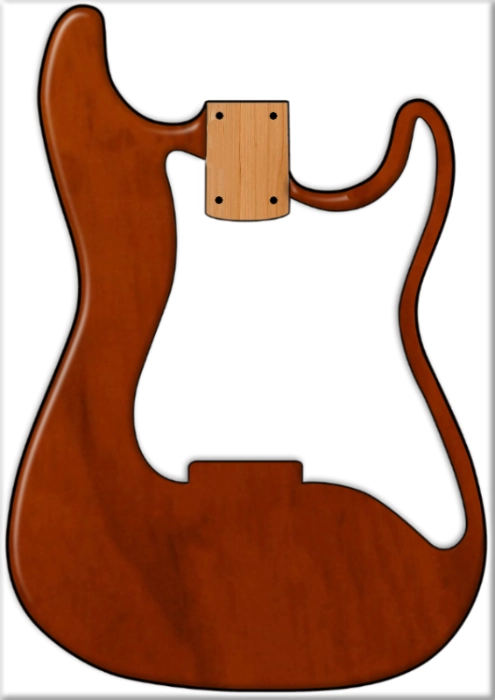

BODY

Wood:

• Sassafras (729)
• Sugar Pine (703)
• Spruce (742)

Lacquer: Satin Urethane

Shape: Standard Stratocaster

Contours: Modern USA Contours

Pickguard: Various, 11-Hole:

• 3-Ply Black (703, 742)
• 3-Ply Parchment (729)

Pickup Routing: HSH

Serial: Rear Headstock | US + 8 digits

NECK

Wood: Flatsawn Maple

Fretboard: Rosewood or Maple

Fret Markers: White or Black Dot

Neck Finish: Satin Urethane

Neck Profile: Modern “C”

Neck Depht .820”–.870”

Headstock: Classic Style Small | Gloss Urethane

Nut Width: 1.685” (42.8 mm)

Nut Material: Bone

Scale: 25.5"

Radius: 9.5”

#Frets: 22

Fretwire: 6200 Jumbo (.055-.110)

Trussrod: Single-Action Headstock Adjust

MicroTilt: No

Contoured Heel: No

HARDWARE

Bridge: 6-Screw PING Synchronized V/N Tremolo

• Mount Spacing: 2–7/32 (56.4mm)
• String Spacing: 2–1/16 (52.4mm)

Block: Steel Block

Saddles: Chrome Plated Bent Steel “FENDER”

Trem Arm: 10-32 w/ Tip

Tuners: Fender ClassicGear 2-Pin Vintage Style

String Tree: 2 x Ezy Glyde

Knobs/Cover: Standard Aged White

Neckplate: 4-Bolt Classic Slanted “Fender”

Strap Buttons: Standard

ELECTRONICS

Switch: 5-Way Oak Grigsby  / Standard Tip

Wiring: Modified Modern, 7-Way Wiring

Pots: 3 Pots

• 1 x CTS 250k Master Volume

• 1 x CTS 250k Tone Control (Neck + Middle)

• 1x CTS 250k Tone Control Push/Pull (Bridge)

AUX: Push/Pull Engages Neck Pickup in Pos 4 & 5

Capacitor .022uf (T1), Greasebucket PCB (T2)

Pickup Config: SSS

Neck Pickup: Fender Yosemite Single Coil

Middle Pickup: Fender Yosemite Single Coil

Bridge Pickup: Fender Yosemite  Single Coil

CASE: Deluxe Gig Bag

STRINGS .009 -.042 Nickel Plated Steel
