Limited Edition Series (2017 Exotic Collection)
Decal:
Colors:
Natural (821)
USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Skip to Main Content
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 017-5101-721
BODY
Wood: Cooked Reclaimed Pine
Lacquer: Satin Urethane
Shape: Standard Telecaster
Pickguard: 1-Ply Black Anodized Aluminum
Serial: Stamped on Neckplate / LE+5 digits
NECK
Wood: Figured Maple
Fretboard: Maple
Neck Finish: Hand Rubbed Oil
Neck Profile: Modern Deep "C"
Headstock: Standard Tele
Nut Width: 1.685" (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6105 Narrow / Tall
Trussrod: Bi-Flex Headstock Adjust 1/8" Hex (Allen)
MicroTilt: Yes
Contoured Heel: No
HARDWARE
Bridge: Hybrid 3-Saddle Bridge w/ Mini Ashtray Cover
Bridge Marking: Large Spaghetti Fender stamp
Saddle: Compensated Brass Barrels
Tuners: Standard Fender Die Cast Sealed Tuners ⚙︎
String Tree: Ezy-Glide
Knobs: Knurled Flat Top
Neckplate: 4-Bolt "Fender Corona California + Serial"
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard /N/BN/B
Pickup Config: SS
Neck Pickup: Pure Vintage '64 Gray-Bottom Single-Coil Tele
Bridge Pickup: Lollar Charlie Christian Pickup
CASE: Hardshell Case
DESCRIPTION:

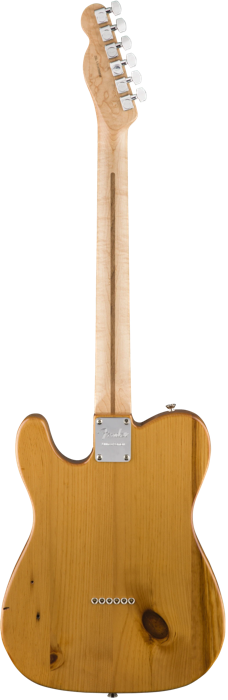

Fender's original prototype instruments were fashioned from pine and now, with the 2017 Limited Edition American Professional Pine Telecaster we've come full circle. This body wood began its functional life over 100 years ago, as part of the Globe Grain Elevator facility in Superior, Wisconsin, before it was reclaimed, cooked and fashioned into an instrument. The grain, knotholes and man-made imperfections make each one unique.
For authentic, vintage-inspired tone, the 2017 Limited Edition American Professional Pine Telecaster is loaded with a single American Vintage '64 Gray-bottom single-coil Tele® pickup and a Lollar Charlie Christian single-coil neck pickup. The Lollar pickup was selected for its old-school "woody" tone and rustic aesthetic appeal and vibe.
