USA TELECASTERS
American Standard Series (4/1988 - 8/2000)
Sucsessor :American Series Telecaster
Decal:
Model# 010-8400-XXX (Rosewood Neck)
Model# 010-8402-XXX (Maple Neck)
BODY
Wood: Alder / Ash (701) (721)
Lacquer: Polyurethane
Shape: Standard Telecaster
Serial: Front headstock N/Z-Serial
NECK
Wood: Maple
Decal: Modern Silver w/ Black trim / From 1995-2000: Spaghetti Gold
Fretboard: Maple / Rosewood
Neck Lacquer: Polyurethane
Neck Profile: Modern "C"
Neck Taper: .810” - .940”
Headstock: Standard Tele
Nut Width: 1.685" (42.8mm)
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Standard Headstock-Adjust
MicroTilt: Yes
Contoured Heel: No
HARDWARE
Bridge: Modern 6-Saddle Flat String-Thru
Bridge Marking: None
Saddle: Offset Satin Block Saddles
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners
StringTree: Ezy-Glide
Knobs: Knurled Flat-Top
Neckplate: 4-Bolt / Slanted "Fender" logo
ELECTRONICS
Switch: 3-Way / Barrel Switch Tip
Wiring: Standard Wiring N/NB/B
Pots: Master Volume & Master TBX Tone
Pickup Config: SS
Neck Pickup: Standard Hot single-coil
Bridge Pickup: Standard Hot single-coil
RWRP: No
Colors:

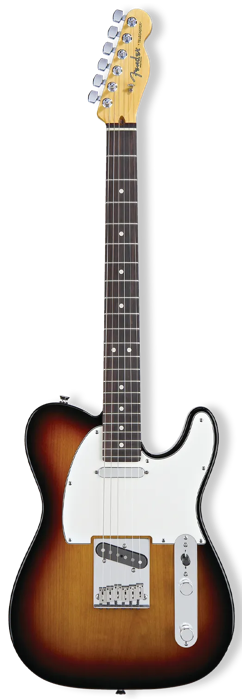

3-Tone Sunburst (700)

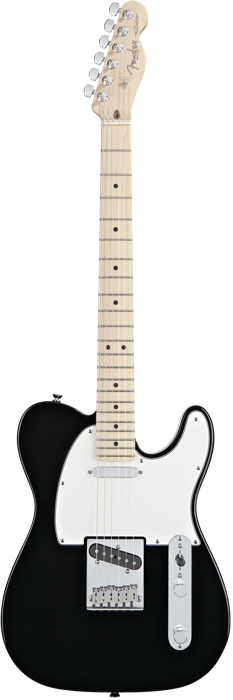

Black (706)
Brown Suburst (732)
Vintage White (741)

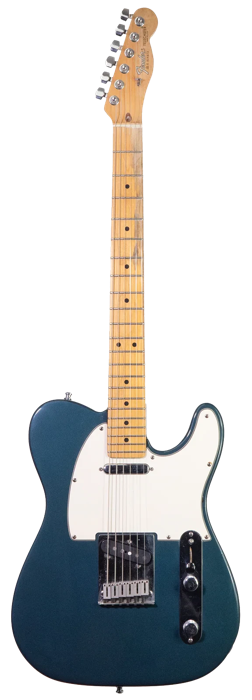

Gun Metal Blue (768)
Crimson Metallic (725)
Midnight Blue (773)
Midnight Wine (775)
Frost Red (777)

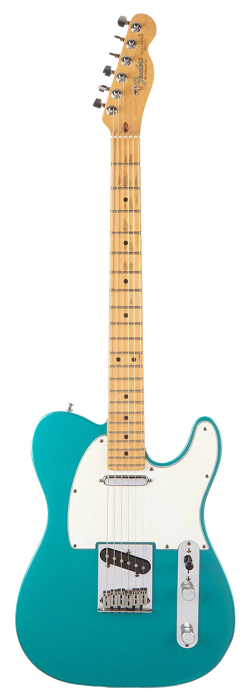

Caribbean Mist (747)
Lipstick Red (715)
Crimson Burst (728)
Lake Placid Blue (702)

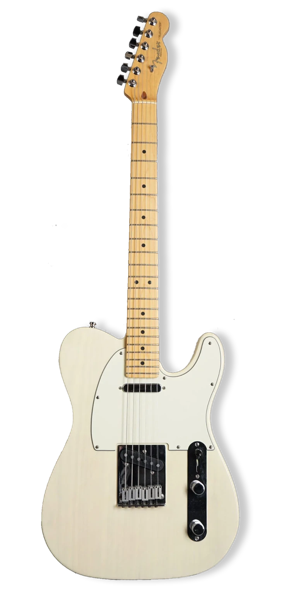

Olympic White (705)

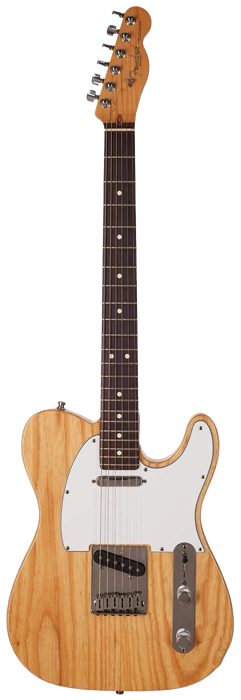

Natural (721) Ash Body
Inca Silver (724)
Purple Metallic (793)

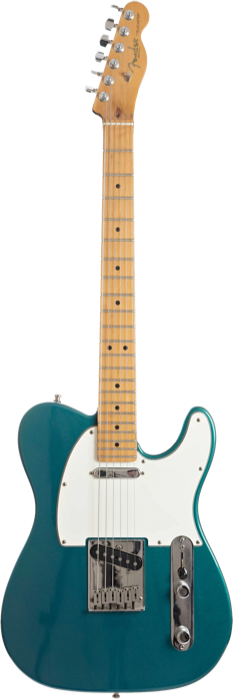

Aqua Marine Metallic (774)
