USA TELECASTERS

American Standard Aluminum Telecaster Ltd.

American Standard Series (1994-1995)

Decal:

Model# Unknown

BODY

Material: Chromed Aluminum

Lacquer: Anodized Finish

Shape: Standard Telecaster

Pickguard: 3-Ply Black or White / Custom guard

Serial: Front Headstock Under Decal / N-serial


NECK

Wood: Maple

Fretboard: Rosewood or Maple

Neck Lacquer: Satin Urethane

Neck Profile: Standard "C"

Headstock: Standard Tele

Nut Material: Synthetic Bone

Nut Width: 1.685" (42.8mm)

Scale: 25.5"

Radius: 9.5"

#Frets: 22

Fretwire: 6130 Medium Jumbo

Trussrod: Headstock-adjust

MicroTilt: Yes

Contoured Heel: No


HARDWARE

Bridge: Modern 6-String Flat String-Thru

Bridge Marking: None

Saddles: Standard Matte Off-set Block Saddles

Tuners: Standard Fender/Schaller Die Cast Sealed Tuners

String Tree: Ezy-Glide

Knobs: Knurled Flat-Top

Neckplate: 4-Bolt / "Fender" Slanted Plate


ELECTRONICS

Switch: 3-Way / Barrel Switch-Tip

Wiring: Standard Wiring

Pickup Config: SS

Neck Pickup: American Standard Singe-Coil (7.39k)

Bridge Pickup: American Standard Singe-Coil (7.23k)


INFO:

100 was made of these in total and are based on the American Standard model. But many was returned to Fender for finish-issues or dents in the body. They were never issued a new one because the mold was discarded. So all returns was refunded under warranty. Because of this, there is far less than 100 in circulation of these today.

These models was built and assembled at Fender, Scottsdale, Arizona HQ

Colors:

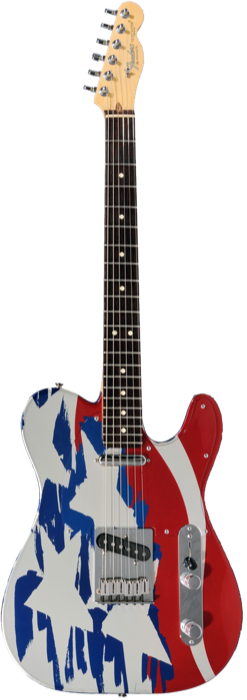

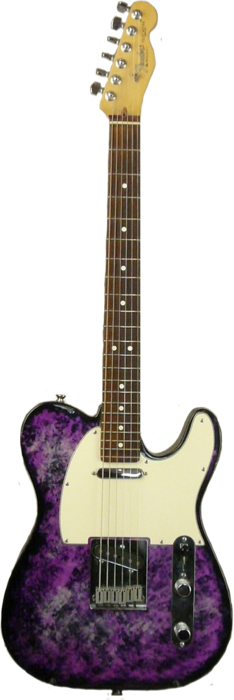

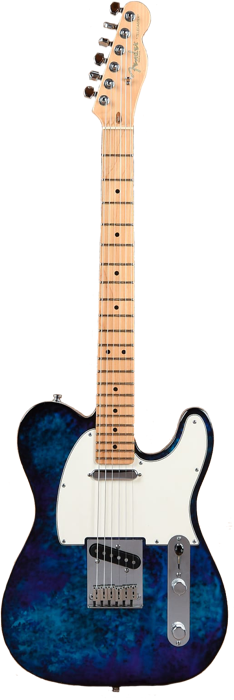

Red/White/Blue - Purple Marble - Blue Marble
