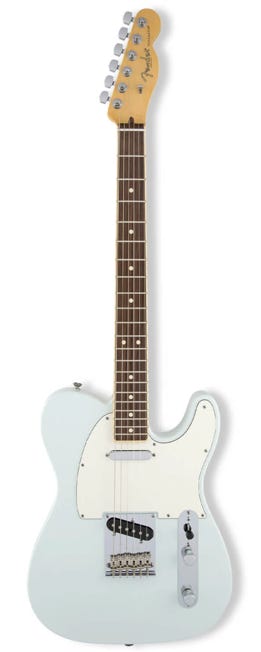

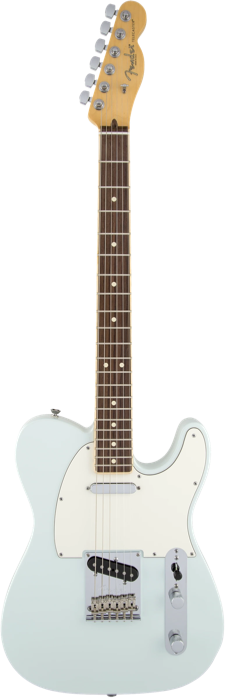

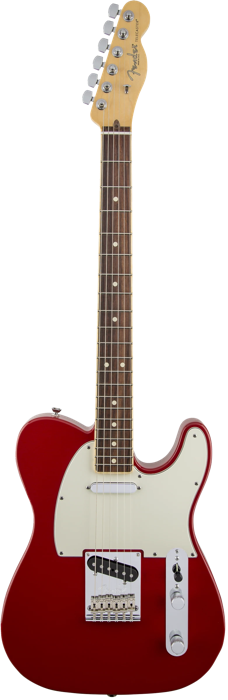

American Standard Channel Bound

Model# 017-0215-XXX

BODY

Wood: Ash

Lacquer: Gloss Urethane

Shape: Standard Telecaster | Belly Carve

Pickguard: 3-Ply Parchment

Serial: Headstock Rear / US-serial

NECK

Wood: Maple

Fretboard: Channel-Bound Rosewood

Neck Lacquer: Hand-Rubbed Oil

Neck Profile: Modern "C"

Headstock: Standard Tele

Nut Material: Synthetic Bone

Nut Width: 1.685" (42.8 mm)

Scale: 25.5"

Radius: 9.5" - 14" Compound Radius

#Frets: 21

Fretwire: 6130 Medium Jumbo

Trussrod: Bi-Flex Headstock-adjust

MicroTilt: Yes

Contoured Heel: No

HARDWARE

Bridge: Modern 6-Saddle Flat String-Thru

Bridge Marking: Modern "Fender" Stamp

Saddles: Vintage Bent-Steel saddles

Tuners: Standard Fender/Schaller Die Cast Sealed Tuners

String Tree: Ezy-Glide

Knobs: Knurled Flat-Top

Neckplate: 4-Bolt / "Fender Corona California" plate

Control Plate: Standard Chrome

Strap Buttons: Standard

ELECTRONICS

Switch: 3-Way / Barrel Switch-Tip

Wiring: Standard Wiring

Pickup Config: SS

Neck Pickup: Fender Custom Shop "Twisted" Single-Coil Tele

Bridge Pickup: Custom Shop Vintage-Style Single-Coil Tele

CASE: Hardshell Case

About Channel Bound:

Channel bound fretboard can only be done by CNC machining. Its basically frets slots that routed out in channles, instead of straight cuts accross the entire fretboard, leaving the a thin outer edges intact so you do not have fret ends. Similar to how Gibsons are fretted with nibbed tangs. Only difference is that Gibson has bound ends but channel bound leaves natural wood instead.
