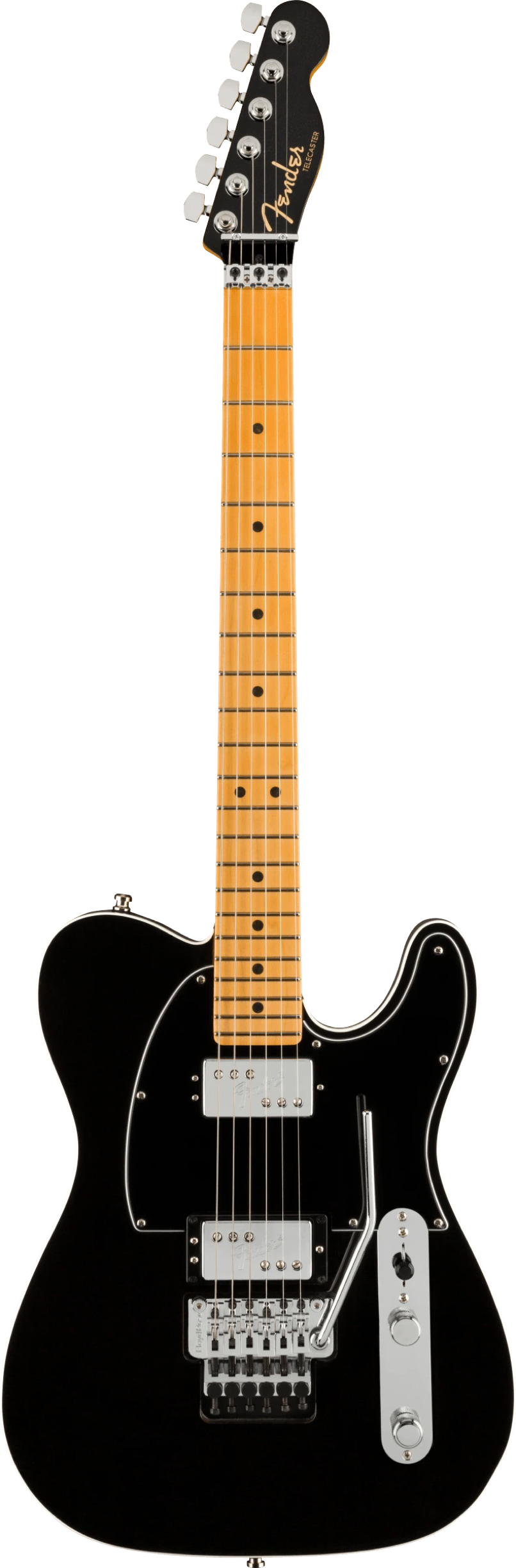

American Ultra Luxe Floyd Rose HH

Model# 011-8092-710

BODY

Wood: Ash

Binding: White Top Binding

Lacquer: Gloss Urethane

Shape: Modified Telecaster | Belly Cut | Rear Horn Contour

Pickguard: 3-Ply Black/White /Black

Serial: Headstock Rear / US-serial

NECK

Wood: Maple

Fretboard: Maple

Neck Lacquer: Ultra Satin Urethane

Neck Profile: Augmented "D"

Neck Thickness .833 - .877 (21.1 - 22.3mm)

Headstock: Standard Tele Matching Black Headstock

Nut Material: Floyd Rose Original Locking Nut

Nut Width: 1.625" (41.3 mm)

Scale: 25.5"

Radius: 10" - 14" Compound Radius

#Frets: 22

Fretwire: 6130 Medium Jumbo Stainless Steel

Trussrod: Headstock-Adjust

MicroTilt: No

Contoured Heel: Yes

HARDWARE

Bridge: Floyd Rose Double Locking Tremolo

Bridge Marking: Floyd Rose

Saddles: Floyd Rose Saddles

Tuners: Fender/Schaller Deluxe Sealed Locking Tuners

String Tree: Modern "T"

Knobs: Knurled Flat-Top

Control Plate: Chrome Standard

Strap Buttons: Schaller Locking

Neckplate: 4-Bolt "Fender American ULTRA LUXE"

ELECTRONICS

Switch: 3-Way / Barrel Switch-Tip

Wiring: Standard N/NB/B

Aux: S1 Coil Split both Pickups

Pots: 500k Master Volume / Master Tone S-1 Pot

Treble Bleed: PCB Treble Bleed Circuit

Capacitor: 0.22uf Orange Drop

Pickup Config: HH

Neck Pickup: Custom Double Tap Humbucker

Bridge Pickup: Custom Double Tap Humbucker

CASE: Deluxe Hardshell
