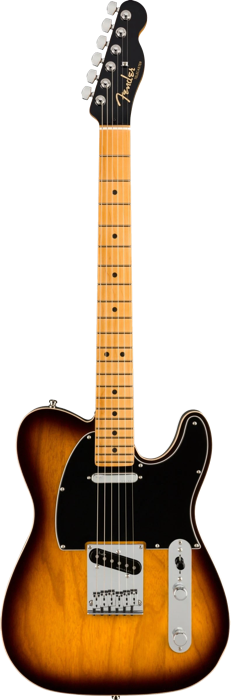

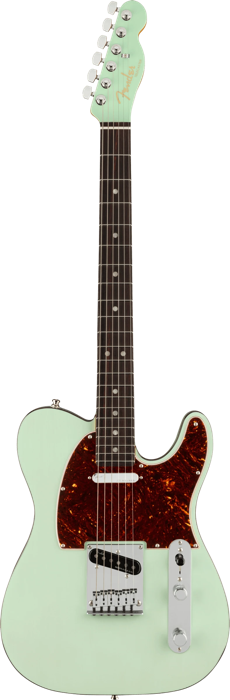

American Ultra Luxe Telecaster

Model# 011-8080-735 (Rosewood)

Model# 011-8082-703 (Maple)

BODY

Wood: Ash

Lacquer: Gloss Urethane

Binding: Top Bound

Shape: Modified Std Telecaster | Belly Cut | Rear Horn Contour

Pickguard: 4-Ply Tortoise / 3-Ply Black

Serial: Headstock Rear / US-serial

NECK

Wood: Maple

Fretboard: Maple or Rosewood

Inlay: Pearloid Dots

Neck Lacquer: Ultra Satin Urethane

Neck Profile: Augmented "D"

Neck Thickness .833 - .877 (21.1 - 22.3mm)

Headstock: Standard Tele Matching Color

Nut Material: TUSQ

Nut Width: 1.685" (42.8 mm)

Scale: 25.5"

Radius: 10" to 14" Compound Radius

#Frets: 22

Fretwire: 6130 Medium Jumbo Stainless Steel

Trussrod: Headstock-Adjust

MicroTilt: No

Contoured Heel: Yes

HARDWARE

Bridge: Modern 6-Saddle Flat Bridge

Bridge Marking: None

Saddles: Off-set Polished Steel Block Saddles

Tuners: Fender/Schaller Deluxe Sealed Locking Tuners

String Tree: Modern "T"

Knobs: Knurled Dome

Control Plate: Chrome Standard

Strap Buttons: Schaller Locking

Neckplate: 4-Bolt "Fender American ULTRA LUXE"

ELECTRONICS

Switch: 3-Way / Barrel Switch-Tip

Wiring: Modern Wiring N/NB/B

Aux: S-1 Switch activates Pickups for Series in Middle position

Pots: Master Volume S-1 Pot / Master Tone 250k

Treble Bleed: PCB Treble Bleed Circuit

Capacitor: 0.22uf Orange Drop

Pickup Config: SS

Neck Pickup: Fender Ultra Noiseless Vintage Tele

BridgeP ickup: Fender Ultra Noiseless Vintage Tele

CASE: Premium Molded Deluxe Hardshell
