USA TELECASTERS

American Ultra Luxe Vintage ‘60s Custom

American Ultra Luxe Vintage Series (08/2025 - Today)

Decal:

Colors:

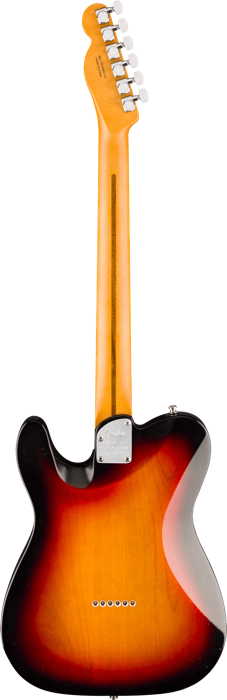

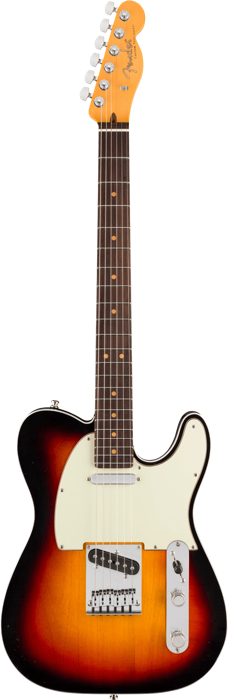

3-Tone Sunburst (800)

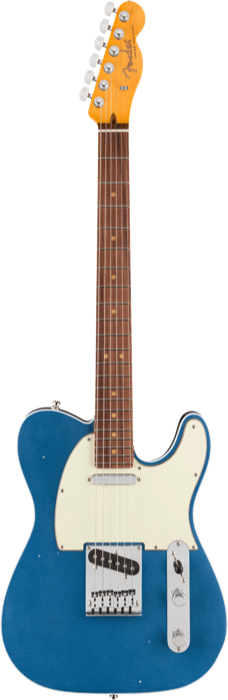

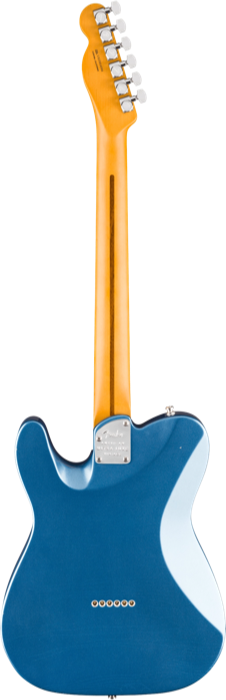

Lake Placid Blue (802)

Model#  011-8250-XXX

BODY

Wood: Alder

Binding: 1-Ply White Top-Bound

Lacquer: Reliced Heirloom Nitrocellulose

Shape: Contoured Telecaster | Belly Carve | Rear Horn Contour

Pickguard: 3-Ply Mint Green

Serial: Headstock Rear | US + 8-digits


NECK

Wood: Quartersawn Maple

Fretboard: Rosewood w/ Rolled Edges

Inlay: Clay Dots

Side Inlay: Luminlay Markers

Neck Finish: Satin Urethane

Neck Profile: Modern “D”

Headstock: Standard Tele

Nut Width: 1.685" (42.8 mm)

Nut Material: TUSQ

Scale: 25.5"

Radius: 10” - 14” Compound

#Frets: 22

Fretwire: 6130 Stainless Steel Medium Jumbo

Trussrod: Standard Headstock Adjust 1/8" Hex (Allen)

MicroTilt: No

Contoured Heel: Yes


HARDWARE

Bridge: Modern 6-Saddle Flat String-Thru

Bridge Marking:  None

Saddle: Chromed Brass Blocks Off-Set

Tuners: Fender Chrome Die-Cast Locking Tuners

String Tree: Modern T-Wing

Knobs: Knurled Flat Tops

Neckplate: 4-Bolt  “American Ultra Luxe Vintage” Chrome

Control Plate: Chrome Plate / Slanted Switch

Strap Buttons: Schaller Locking


ELECTRONICS

Switch: 3-Way / Barrel Switch Tip

Wiring: Standard N/NB/B

Aux: S-1 Switch Activates Series + Bypass Switch on activation

Pots: Master Volume S-1 / Master Tone

Pickup Config: SS

Neck Pickup:  Pure Vintage '63 Single-Coil Tele

Bridge Pickup: Pure Vintage '63 Single-Coil Tele


CASE: Fender Deluxe Hardshell Case (Included)

STRINGS: Nickel Plated Steel (.009-.042 Gauges) Factory


INFO:

Production started February/March 2025

Unveiled at Fender Website in August 12, 2025
