USA TELECASTERS
American Vintage Series (2013-2017)
Decal:
Model# 011-1000-XXX (Rosewood)
Model# 011-1020-800 (Left Handed) (800)
BODY
Wood: Alder
Lacquer: Flash Coat Nitrocellulose
Shape: Standard Telecaster
Pickguard: 3-Ply White with Vintage Bevel
Serial: Stamped on Neckplate / V-serial
NECK
Wood: Maple
Fretboard: Round Laminated Rosewood
Neck Lacquer: Flash Coat Nitrocellulose
Neck Profile: Mid 60's "C"
Headstock: Standard Tele
Nut Material: Natural Bone
Nut Width: 1.650" (42 mm)
Scale: 25.5"
Radius: 7.25"
#Frets: 21
Fretwire: 6230 Vintage Frets
Trussrod: Vintage Heel-adjust
MicroTilt: No
Contoured Heel: No
HARDWARE
Bridge: Vintage 3-Saddle String-Thru
Bridge Marking: 60's "FENDER Pat.No DES.164227 / 2.573.254"
Saddle: Threaded Steel-Barrel Saddles
Tuners: Pure Vintage SD91 Split Shaft (Single-Line)
String Tree: Butterfly
Knobs: Knurled Flat-Top
Neckplate: 4-Bolt / Blank Plate + Serial
ELECTRONICS
Switch: 3-Way / Top Hat Switch-Tip
Wiring: Standard Vintage Wiring N/NB/B
Pickup Config: SS
Neck Pickup: Pure Vintage '64 Gray-Bottom Single-Coil Tele Bridge (7.20k)
Bridge Pickup: Pure Vintage '64 Gray-Bottom Single-Coil Tele (6.12k)
CASE: Updated Deluxe Vintage Brown
PRICE: 2013: $2400
Colors:

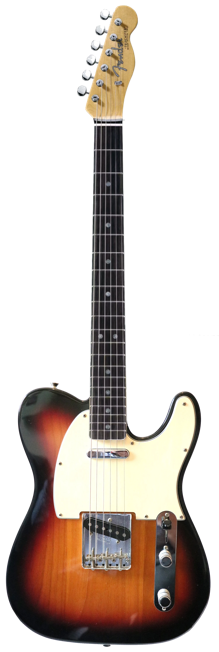

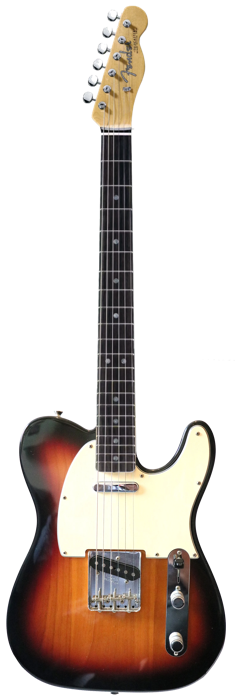

3-Color Sunburst (800)

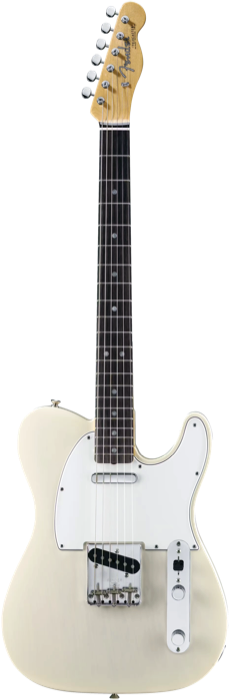

White Blonde (801)

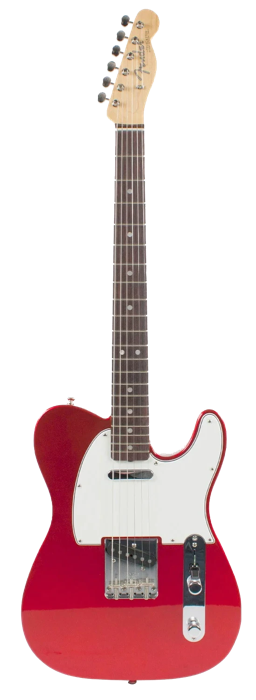

Candy Apple Red (809) Only available 2014

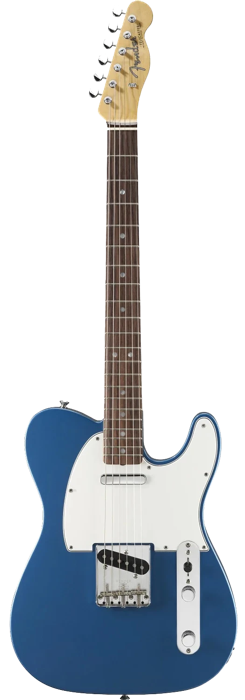

Lake Placid Blue (802) Only available 2013
