USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.

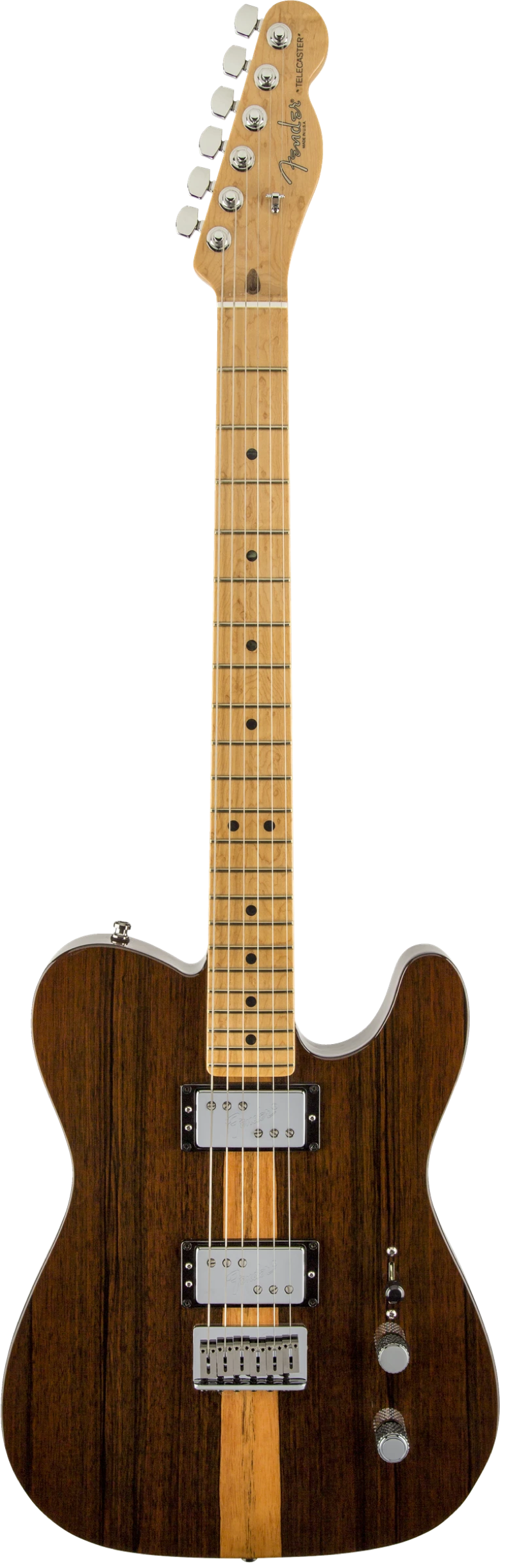

Model# 017-0315-821
BODY
Wood: Chambered Alder with Malaysian Blackwood Top
Lacquer: Gloss Nitrocellulose
Shape: Standard Telecaster
Pickguard: None
Serial: Headstock Rear / US-serial
NECK
Wood: Birdseye Maple
Fretboard: Birdseye Maple
Neck Lacquer: Satin Nitrocellulose
Neck Profile: Modern "C"
Headstock: Standard Tele
Nut Material: Synthetic Bone
Nut Width: 1.685" (42.8 mm)
Scale: 25.5"
Radius: 9.5" - 14" Compound Radius
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Bi-Flex Headstock-Adjust
MicroTilt: No
Contoured Heel: Yes
HARDWARE
Bridge: 6-Saddle Hardtail String-Thru
Bridge Marking: None
Saddles: Standard Matte Off-set Block Saddles
Tuners: Deluxe Cast/Sealed Locking Tuners ⚙︎
String Tree: Ezy-Glide
Knobs: Heavy Knurled Flat-Top
Neckplate: 4-Bolt / "Fender Corona California" plate
ELECTRONICS
Switch: 3-Way / Barrel Switch-Tip
Wiring: Standard with S1 Switch for Coil-Split
Pickup Config: HH
Neck Pickup: WideRange Special Humbucker
Bridge Pickup: WideRange Special Humbucker
CASE: Fender Select Tweed
PRICE: 2013: $2999
Colors:
Natural (821)
