USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.

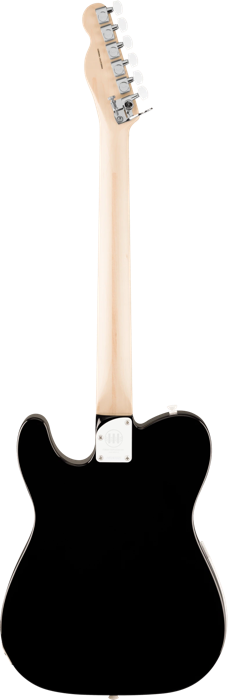

Model# 017-6812-706
BODY
Wood: Chambered Ash
Lacquer: Gloss Urethane
Shape: Standard Telecaster
Pickguard: 1-Ply White
Serial: Neckplate Laser Engraved / JW+6 Digit
NECK
Wood: Maple
Fretboard: Maple
Neck Lacquer: Natural Satin Urethane
Inlay: Black Dot with Tripple Dots at 12th Fret
Neck Profile: Mid-50's Soft "V"
Neck Thickness .836 -.960 (21.2 - 24.4mm)
Headstock: Standard Tele Matching Lacquer
Nut Width: 1.650" (42 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 12"
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Standard Rod Headstock Adjust (1/8" Hex (Allen)
MicroTilt: No
ContouredHeel: Yes
HARDWARE (White Powder Coated)
Bridge: 3-Saddle Custom Chrome "Cut-Off" Vintage Bridge
Vibrato: White Bigsby BS5 Custom w/ Tapered Side Walls
Bridge Marking: "Bigsby"
Saddle: Compensated Steel Barrels
Tuners: Standard Schaller Die Cast Sealed Tuners w/ White Knobs
Tuners Additional: Hipshot Xtender "Drop D" on the E String
String Tree: White Ezy-Glide
Knobs: White Heavy Knurled Flat-Top / Black Amp Knob on Aux Switch
Neckplate: Contoured 4-Bolt "Laser Engraved "III" Logo + Serial
ELECTRONICS
Switch: 3-Way Blade / White Top-Hat Switch Tip
Wiring: Straight B/N/M
Auxiliary Switch: 3-Position Toggle
Position 1. “Mute”,
Position 2. Volume and Tone Controls,
Position 3. “Direct-To-Jack”: Controls Bypassed, 3-Position Blade Only
Pickup Config: SSH
Neck Pickup: Custom Jack White CuNiFe Wide-Range Humbucker
Middle Pickup: Custom Jack White JW-90 Single-Coil
Bridge Pickup: Custom Jack White Humbucker
CASE: Black Tolex Case w/ Orange Interior
PRICE: $3.499
DESCRIPTION:
With his raw, gritty guitar tones and visionary approach to music, Jack White has solidified his status as one of the most influential guitarists of the modern era. Now, Fender honors White's storied career with the Jack White Triplecaster™ Telecaster®, an instrument as bold and unconventional as the artist himself.
This groundbreaking guitar fuses classic Fender style with carefully selected modern appointments to support and inspire White's ever-shifting musical prerogatives. The Triplecaster’s chambered ash body provides punchy response and resonant tone. The maple neck has a comfortable soft "V" profile finished in sleek satin urethane with 22 medium jumbo frets set into the 12” radius maple fingerboard. The unique pickup configuration comprises a CuNiFe® Wide Range humbucker in the neck, JW-90 in the middle and a custom Jack White humbucker in the bridge, each voiced for maximum fidelity and character. Routed through Jack’s custom configured controls, this versatile trio delivers a wide palette of tones that can be throttled with the expressive arcade- style "Stutter" switch or transformed by the hidden-in-plain-view 3-way toggle that flicks up to mute the signal entirely or down to route your pickup selection “Direct-To-Jack” for even bigger bite. Other features include a 3-saddle bridge with compensated steel saddles, Bigsby® B5 Vibrato, Fender sealed tuners with a Hipshot Xtender™ drop D tuner and a distinctive white powder coat finish on the hardware. Extra custom touches nclude the classy white armrest and black dot inlays with unique 3-dot patterns at the 12th fret and no inlay at the 21st. The Triplecaster is without a doubt the jewel of Jack White's guitar collection, the key he and Fender crafted to unlock the next step in his artistry. Don't miss the chance to get your very own Tripl
