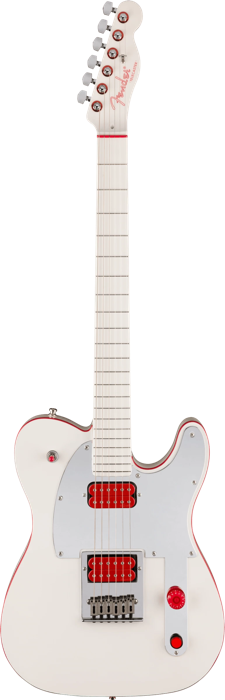

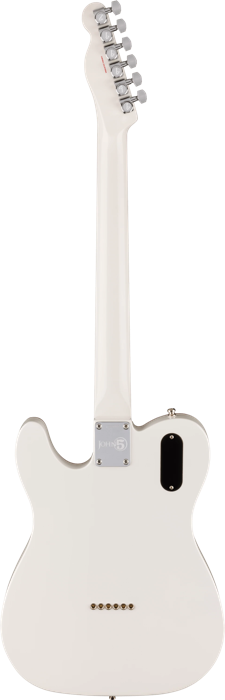

John 5 Ghost Telecaster

Decal:

BODY

Wood: Alder

Lacquer: Gloss Urethane

Binding: Red Top Binding

Shape: Standard Telecaster

Pickguard: 1-Ply Mirrored Chrome

Serial: Laser etched on Neck plate / J5-serial

NECK

Wood: Maple

Fretboard Material: Maple

Neck Lacquer: Arctic White Painted with Gloss Urethane

Neck Profile: Custom Medium "C"

Neck Thickness .810 -.870  (20.6 - 22.1mm)

Headstock: Standard Tele / Matching Headstock

Nut Material: Red Synthetic Bone

Nut Width: 1.650" (42mm)

Scale: 25.5"

Radius: 9.5"

#Frets: 22

Fretwire: 6105 Narrow/Tall

Trussrod: Headstock-adjust / 1/8" Hex (Allen)

MicroTilt: No

Contoured Heel: No

HARDWARE

Bridge: Modern 6-Saddle Flat Bridge w/ HB Cut-out

BridgeMarking: None

Saddles: Non-Offset Block Steel Saddles

Tuners: Deluxe Cast/Sealed Locking with Red Washers

String Tree: Ezy-Glide

Knob: Single Red Gibson Style Speed-Knob

Neckplate: 4-Bolt Laser etched "John5" + Serial

ELECTRONICS

Switch: 3-Way Switchcraft (LP Style) w/ Red Tip

Wiring: Solo-Volume Pot with Standard Switching / Kill Switch instead of Tone Knob.

Treble Bleed: None

Pickup Config: HH

Neck Pickup: DiMarzio D-Activator Humbucker (Red Bobbins)

Bridge Pickup: DiMarzio D-Activator Humbucker (Red Bobbins)

CASE: Vintage-Style White with Black Ends (Crushed Red Interior with John 5 Ghost Embroidery)
