USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.
Model# 017-3960-XXX
BODY
Wood: Mahogany
Lacquer: Gloss Urethane
Shape: Standard Telecaster
Pickguard: 3-Ply Parchment / 3-Ply Black
Serial: Headstock Rear / US+7 digits
NECK
Wood: Mahogany
Fretboard: Rosewood
Inlay: White Pearloid Dot
Neck Finish: Satin Urethane
Neck Profile: Modern "C"
Headstock: Standard Tele, Black Lacquer
Nut Width: 1.685" (42.8 mm)
Nut Material: Bone
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Bi-Flex Headstock Adjust 1/8" Hex (Allen)
MicroTilt: Yes
Contoured Heel: Yes
HARDWARE
Bridge: 6 Saddle Hardtail String-Thru
Bridge Marking: None
Saddle: Satin Offset Steel Block
Tuners: Standard Fender/Schaller Die Cast Sealed Tuners ⚙︎
String Tree: Modern T-Wing
Knobs: Knurled Dome
Neckplate: 4-Bolt "Fender Corona California"
ELECTRONICS
Switch: 2 Way Switchcraft / Chrome Tip
Wiring: Standard /N/BN/B
Pots: 1x Master Volume
Pickup Config: HH
Neck Pickup: DiMarzio Vintage Minibucker
Bridge Pickup: DiMarzio Vintage Minibucker
CASE: Deluxe Molded Case
Colors:

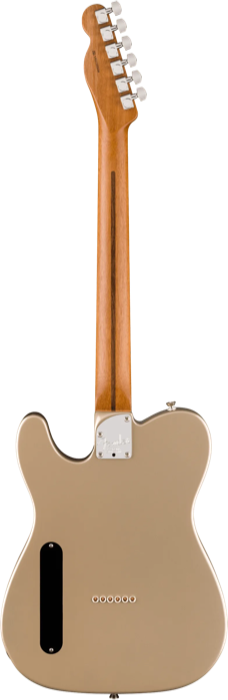

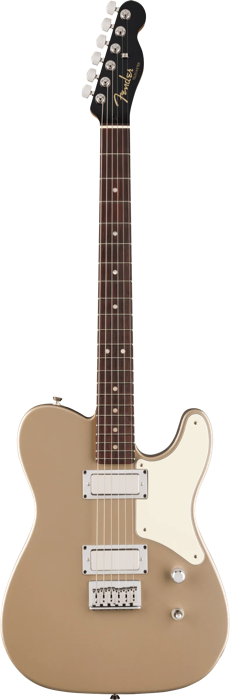

Shoreline Gold (744)

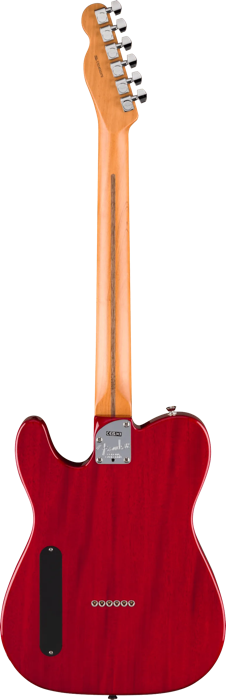

Crimson Transparent (738)
