USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.

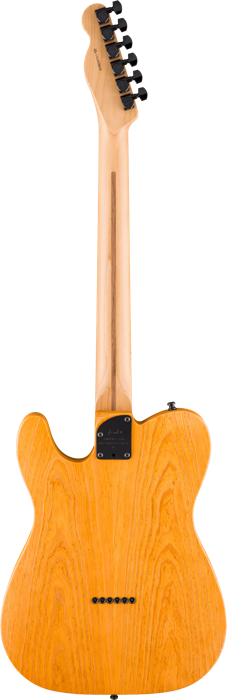

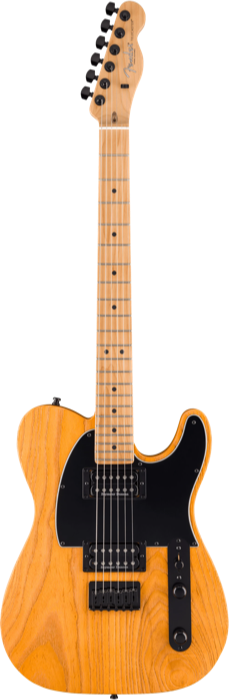

Model# 017-3941-XXX (Maple)
BODY
Wood: Chambered Ash
Lacquer: Satin Urethane
Shape: Standard Telecaster
Pickguard: 3-Ply Black
Serial: Headstock Rear / US-serial
NECK
Wood: Maple
Fretboard: Maple / Rolled Fingerboard Edges
Neck Lacquer: Satin Urethane
Neck Profile: Modern "C"
Headstock: Standard Tele
Nut Material: Natural Bone
Nut Width: 1.685" (42.8 mm)
Scale: 25.5"
Radius: 9.5"
#Frets: 22
Fretwire: 6130 Medium Jumbo
Trussrod: Headstock-Adjust | Bi-Flex
MicroTilt: Yes
ContouredHeel: Yes
HARDWARE (BLACK)
Bridge: 6-Saddle Hardtail Bridge String-Thru (Black)
Bridge Marking: None
Saddles: Black Steel Block Saddles
Tuners: Black Schaller Standard Die Cast Locking Tuners
String Tree: Black Modern "T"
Knobs: Black Knurled Dome
Neckplate: Black 4-Bolt Contour Plate "FenderAmerican Professional"
Control Plate: Standard Black Plate
ELECTRONICS
Switch: 3-Way / Barrel Switch-Tip
Wiring: Standard Wiring N/NB/B
Treble Bleed: ?
Capacitor: ?
Pickup Config: HH
Neck Pickup: Seymour Duncan '59 SH-1N
Bridge Pickup: Seymour Duncan JB TB-4
RWRP: Yes
CASE: Deluxe Molded Case
Colors:
Aged Natural (734)

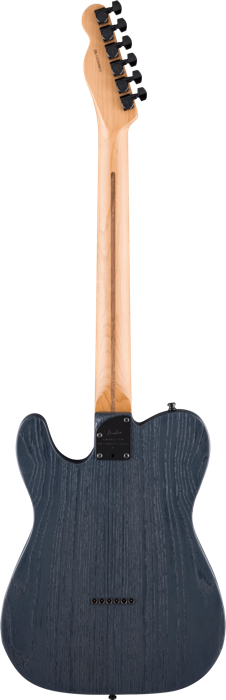

Smoke (770)
