USA TELECASTERS
Fender Standard Died Cast Tuners 09908020100
Fender ClassicGear Vintage Tuners 0990802100
Fender ClassicGear Vintage Staggered 0990802105
Fender Locking Tuners 3 Long / 3 Short post 0990818000
Fender Locking Tuners All Short Posts 0990818105
Fender Locking Tuners 3-3 Round Buttons 0990818500
Kaish 6-In Line Locking Tuners (Economy)
These will drop in without any modification. Installing other models will require drilling new mount holes.
Fender Original tuners can be found cheaper elsewhere. Google the SKU numbers.
Fender 70’s CBS F-Style Tuners 0990822100
Schaller 70’s CBS F-Style Tuners 1058 N, CHR, GLD, BLK
These will drop in without any modification. Installing other models will require drilling new mount holes.
Good Quality ▼
Fender PING Vintage Tuners 0047912049
Fender PING Road Worn Vintage 0997201000
Premium Quality ▼
Fender Pure Vintage Gotoh SD91 0992074000
Fender Gotoh SD91 American Vintage 0992040000
Fender Gotoh SD91 American Vintage Staggered 0992074105
These will drop in without any modification. Installing other models will require drilling new mount holes.
These are not all in existence. Go to my page about these to get more selections.
USA Strats are equipped with Gotoh SD91, Mexico Strats are equipped with PING Vintage tuners.

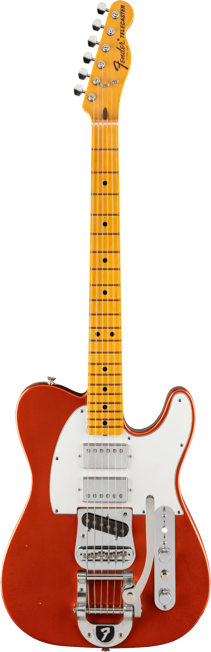

Model# 011-747-272 (Maple)
BODY
Wood: Alder
Lacquer: Heirloom Nitrocellulose Lacquer
Shape: Standard Telecaster
Pickguard: 3-Ply Parchment
Serial: Stamped on Neckplate / MC + 6-digits
NECK
Wood: 1 Piece Maple
Fretboard: Maple
Neck Lacquer: Heirloom Nitrocellulose Lacquer
Neck Profile: Early 70's "C"-Profile

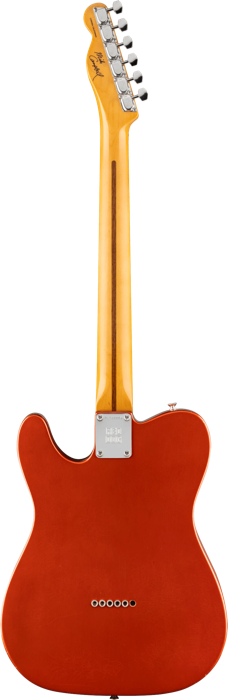

Headstock: Standard Tele + Mike Campell Signature Rear
Nut Width: 1.60” (40.6 mm)
Nut Material: Natural Bone
Scale: 25.5"
Radius: 7.25"
#Frets: 21
Fretwire: 6230 Vintage Frets
Trussrod: Vintage Heel-Adjust
MicroTilt: No
ContouredHeel: No
HARDWARE
Bridge: Fender/Bigsby B5F Tremolo
Bridge Marking: "F"
Saddles: Threaded Steel Saddles
Tuners: Fender 70’s F-Style Tuners ⚙︎
String Tree: 2 X Butterfly
Knobs: Chrome Knurled Flat Top
Neckplate: 4-Bolt Plate with "RED DOG" Stamped + Serial
Control Plate: Chrome Standard w/ Switch hole
ELECTRONICS
Switch: 3-Way / White Strat Tip
Wiring: 5-Position Blade Standard "Strat" Wiring N/NM/M/MB/B
Other: Push-Push button For "Destruct" Boost 34 DB of Gain
Capacitor: ?
PickupConfig: SHH
Neck Pickup: Mike Campbell Red Dog Neck Humbucker
Middle Pickup: Mike Campbell Red Dog Middle Humbucker
Bridge Pickup: Mike Campbell Red Dog Tele Bridge Single Coil
CASE: Custom Black Tolex Case with Orange Interior + RED DOG embrodery logo.
CASE CANDY: Standard + Dark Red Leather Strap
Colors:
Custom Red Dog Red (725)
